Features:
- Picture-in-Picture (PIP), Picture-by-Picture (PBP), and customized PIP layout
- Audio and video synchronization
- Support multiple signal format inputs
- Seamless TAKE switching between inputs
- DSK/Chroma Key
- Open API for 3rd party integration
- EDID management for both DVI and HDMI inputs
- Standard build in with 2 DVI outputs
- Customized output resolution
- Multiple units can be cascaded for uniform control
- On board test patterns
Applications:
- Enterprise
- Outdoor Display
- Stage & Event
- Worship
- Education
- Government
- Entertainment
- Hotel

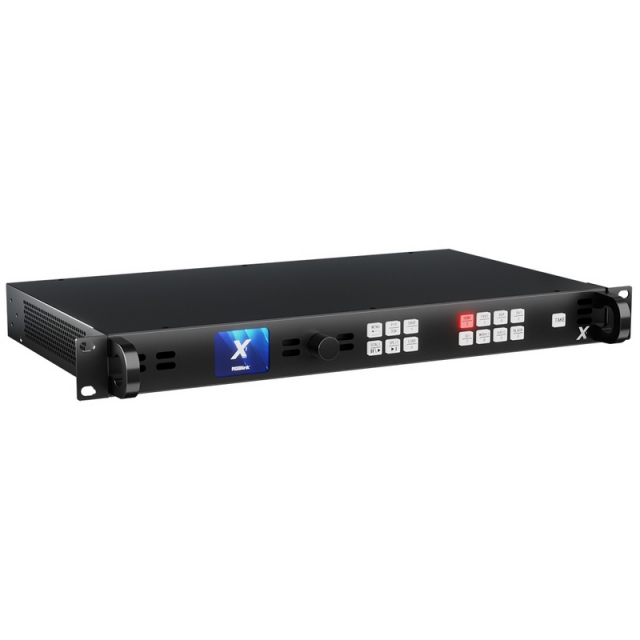

After 7 years, X1 iteration happens and Gen2 is released, refine and enhance based on market feedback and trends. As a leading broadcast video processor, X1 solids its DVI output resolution up to 2048x1152 at 60 and customized resolution capacity. X1 is dedicated for LED display processor and compatible with common LED control system, including Novastar, Colorlight, Linsn, Mooncell and RGBlink.
Seamless Switching
X1 supports seamless switching between any in and any out, and supports TAKE pre-sync for delay free switching and signal confirmation before switch the input signal source.
Picture-by-Picture Display
Select any input signal for use as a PIP, configure sources side-by-side as PBP (picture-by-picture) for area of interest display for specific displays. Menu functionally provides quick presets as well as refinements.
Multi-Device Splicing

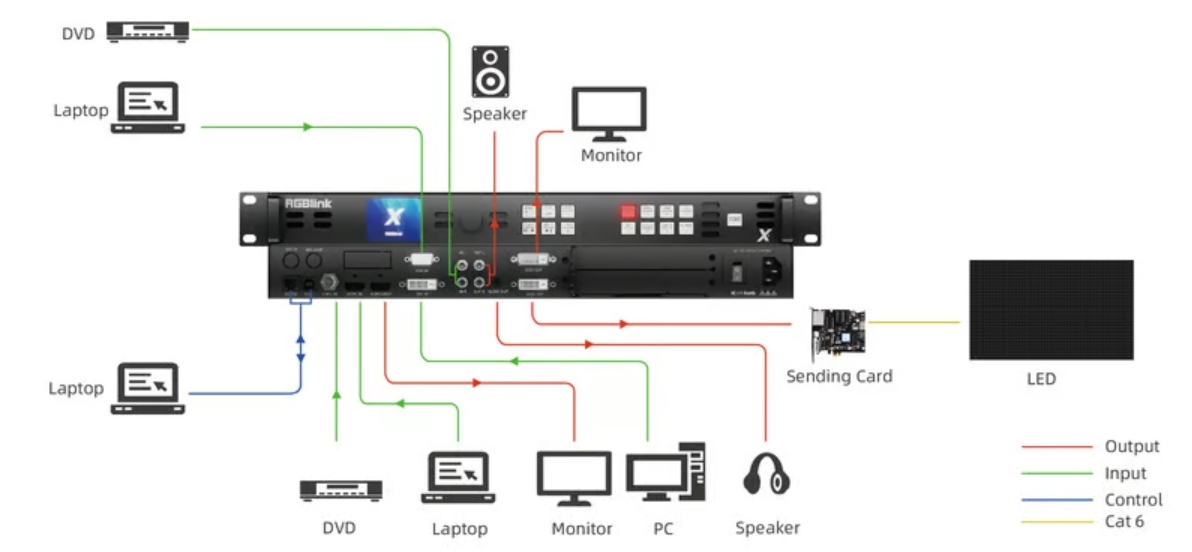

Combine multiple devices linking via HDMI to provide pixel perfect video for splicing multiple displays.
Audio Integrated

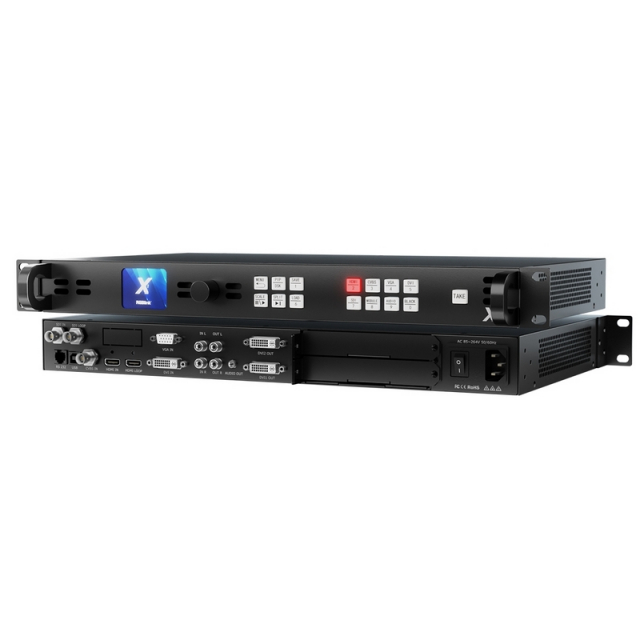

X1 supports RCA audio input and output, supports audio plus de-embedding, HDMI input and DVI input support embedded audio input, external audio output interface can be connected to the stereo and other equipment, applied to advertising, bars and other projects.
Broadcast-Quality SDI processing
The SDI input is compatible with standard SMPTE signal formats including SD SDI/ HD SDI/ 3G SDI and supports backward compatibility. In addition, it is equipped with noise reduction, jaggedness elimination and positional fine-tuning functions to meet the needs of broadcast-quality camera capture applications.
One-Click Keying
No need for complex operations to complete the virtual scene cut, support for a variety of preset background colors (green, blue, white, black, red), one-click keying, but also supports user-defined settings to meet the graphic overlay, the environment of the greenscreen shooting, the environment of the blue screen shooting, and other application scenarios
