Rear View Safety RVS-812613-NM-13 7" QV Display, Camera System, 66'

Cable Length: 66', Configuration: 4 x Heated Backup Camera
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

    Options and Related Products

    Cable Length:
    Cable Length: 66'
    Configuration:
    Configuration: 4 x Heated Backup Camera

    Rear View Safety, RVS-812613-NM-13, 7" Quad View Display, 4 x Heated Backup Camera System, 4 x 66' Cables

    RVS-812613-NM-13 Includes Only:

    • 4 x Color CCD Waterproof Heated Cameras with 30 Infra-Red Illuminators
    • 1 x 7" TFT LCD Digital Quad View Color Monitor
    • 4 x 66' Cable

    Features:

    • Heated Backup Camera for Use in Ultra Cold Climates
    • 30 Infra-Red Lights for 50ft of Night Vision
    • Camera is Completely Waterproof with an IP69K Rating
    • 7" LED Digital Panel Color Display with Three Camera Inputs

    This heated rear view camera system is complete with a crystal clear 7" LED Digital Panel Color monitor with mirror image capability and distance grid lines and one (1) rear view back up camera with 120° viewing angle and built in heater to withstand the coldest weather. The backup camera's night vision boasts a 50 foot range with 30 built in Infra-reds so you can see in total darkness.

    With built-in system memory, this innovative system automatically saves previous option settings even after it's turned off. This system has two viewing options. The camera view can be triggered when the vehicle is put into reverse, or remain on continuously. The system includes all the wires, connectors and mounts you will need. The backup camera is completely weatherproof, with an IP69K rating to withstand power washing, strong and reliable, shock resistant and has a 10G vibration rating. It comes.

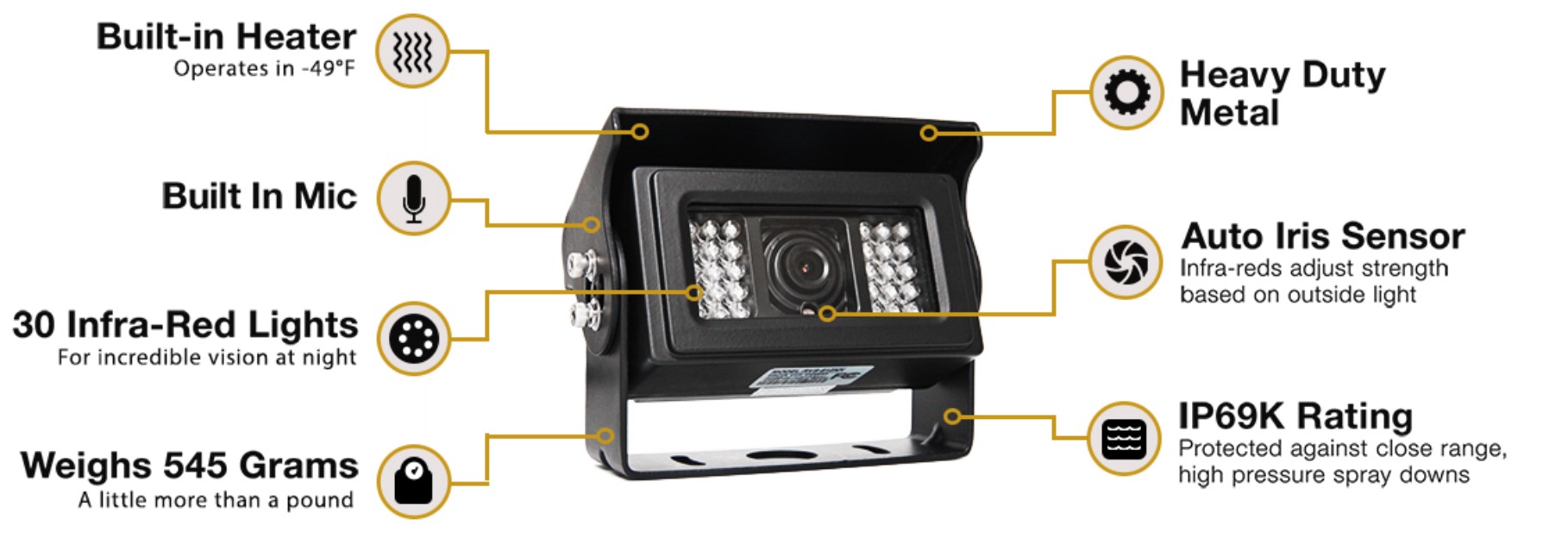

    Heated Camera

    Heated CCD Camera is made for those real intense moments. With an IP69K rating and heated lens, this camera is made to withstand almost anything mother nature throws against us. It has a viewing angle of 120° and boasts 30 Infra-red Illuminators giving you an ideal image at all times. Adding to its durability is its 100G Impact Rating and Aircraft Grade Cable Connections.

    Widescreen Monitor

    7" LED Digital Panel Monitor comes with a Super Sharp Digital Display and a pixel resolution of 800 X 3(RGB) x 480.

    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    Monitor Specs
    TypeTFT LCD
    Screen Size7"
    Dot Resolution800 X 3 (RGB) X 480
    Display Format/Contrast16:9 / 500:1
    Display Brightness400cd/m2
    Viewing AngleU:50° D:60° L/R:70°
    Video Input4 channel
    Video Source1Vp-p, 75Ω
    Power SupplyDC 12V
    Power Consumption5W
    Operating Temperature-30°C ~ +80° C
    Video SystemAuto NTSC/PAL
    Overall Dimensions7" (L) x 5" (H) x 1" (D)
    Individual Quadrant Size2.75" x 3"
    Weight400G
    Vibration Rating5G
    Active Area154.08 (H) X 86.58 (V)
    Sync SystemInternal
    Dimensions5.25" (H) x 7" (L) x 1.25" (D)
    Camera Specs
    Image Device1/3'' SONY® Super HAD CCD
    TV SystemPAL / NTSC
    Total Number Of PixelsPAL: 537 (H) x 597 (V) / NTSC: 537 (H) x 505 (V)
    Effective PixelsPAL: 500 (H) x 582 (V) / NTSC: 510 (H) x 492 (V)
    Sensing Area4.9 mm (H) x 3.7 mm (V)
    Sync. SystemInternal
    Resolution700 TV Lines
    Minimum Illumination0 Lux (With IR)
    MicrophoneYes
    Video OutputComposite Signal (1.0 Vp-p, 75 Ω)
    Gamma Correction0.45
    AGCOn
    S/N RatioBetter Than 48 dB
    White BalanceAuto
    Electronic Shutter1/50-1/100,000 Sec. / 1/60-1/100,000 Sec.
    BLCAuto
    Current ConsumptionMax. 300 mA
    Power SupplyDC 9V-32V
    Anti-vibration5.9 g
    Operating Temperature-45°C~70°C, RH 95% MAX.
    Storage Temperature-45°C~80°C, RH 95% MAX.
    Lens Angle120°
    Overall Dimensions2.59" (H) x 4.02" (L) x 2.20" (D)
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    Monitor Specs
    TypeTFT LCD
    Screen Size7"
    Dot Resolution800 X 3 (RGB) X 480
    Display Format/Contrast16:9 / 500:1
    Display Brightness400cd/m2
    Viewing AngleU:50° D:60° L/R:70°
    Video Input4 channel
    Video Source1Vp-p, 75Ω
    Power SupplyDC 12V
    Power Consumption5W
    Operating Temperature-30°C ~ +80° C
    Video SystemAuto NTSC/PAL
    Overall Dimensions7" (L) x 5" (H) x 1" (D)
    Individual Quadrant Size2.75" x 3"
    Weight400G
    Vibration Rating5G
    Active Area154.08 (H) X 86.58 (V)
    Sync SystemInternal
    Dimensions5.25" (H) x 7" (L) x 1.25" (D)
    Camera Specs
    Image Device1/3'' SONY® Super HAD CCD
    TV SystemPAL / NTSC
    Total Number Of PixelsPAL: 537 (H) x 597 (V) / NTSC: 537 (H) x 505 (V)
    Effective PixelsPAL: 500 (H) x 582 (V) / NTSC: 510 (H) x 492 (V)
    Sensing Area4.9 mm (H) x 3.7 mm (V)
    Sync. SystemInternal
    Resolution700 TV Lines
    Minimum Illumination0 Lux (With IR)
    MicrophoneYes
    Video OutputComposite Signal (1.0 Vp-p, 75 Ω)
    Gamma Correction0.45
    AGCOn
    S/N RatioBetter Than 48 dB
    White BalanceAuto
    Electronic Shutter1/50-1/100,000 Sec. / 1/60-1/100,000 Sec.
    BLCAuto
    Current ConsumptionMax. 300 mA
    Power SupplyDC 9V-32V
    Anti-vibration5.9 g
    Operating Temperature-45°C~70°C, RH 95% MAX.
    Storage Temperature-45°C~80°C, RH 95% MAX.
    Lens Angle120°
    Overall Dimensions2.59" (H) x 4.02" (L) x 2.20" (D)
    Note

    Note: Please read description carefully. Do not base your order on the picture presented.
