Buy Rear View Safety RVS-4CAM-SC-30, 7" Monitor with Loose Wire, Both Side

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Camera Side:: Camera Side: Both Side Camera

Rear View Safety, RVS-4CAM-SC-30, 7" QV Monitor with DVR Loose Wire, Both Side Cameras, Suction Cup

RVS-4CAM-SC-30 Includes Only:

7" QV Monitor w/DVR (loose wire)
Both Side Cameras
Suction Cup

Features:

Digital Wireless Connection - up to 70ft!
Quad Display - Can Connect and View 4 Cameras
Multiple Viewing - Single/Split Screen/Dual
Built In DVR - Records footage from all cameras connected
9 Infra-red Lights - 30ft of night vision

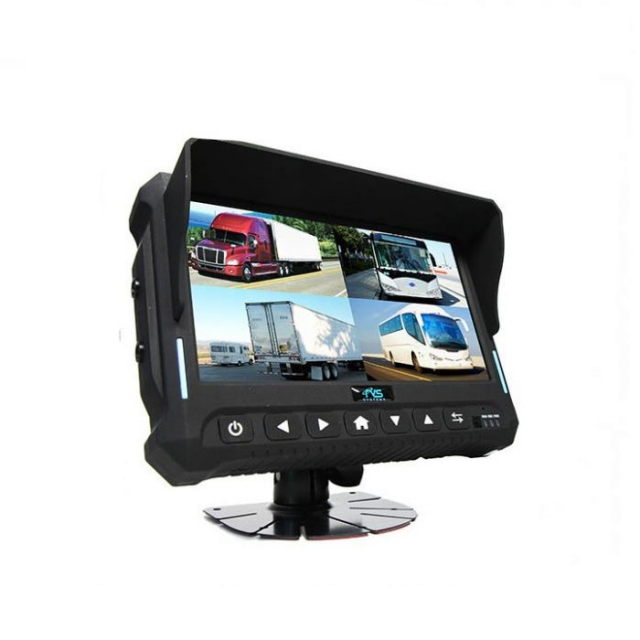

Wireless 7" TFT LCD Quad View Color Monitor comes with a Super Sharp Digital Display and a pixel resolution of 800 X 480. The monitor comes with a built-in DVR allowing you to record all camera views and its SD card slot can hold up to 128GB SD cards. The distance grid lines that come standard with this monitor are optional and adjustable. Boasting a wireless distance of 70 feet, this monitor can also record each camera individually.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Monitor Specs
Type	TFT LCD
Screen Size	7"
Pixel Resolution	800 X 480
Wireless System	2.4G Digital Wireless System
Automatic Start	Yes (Can Be Turned Off)
Display Brightness	400cd/m2
Video Input	4 Channel
Audio Input	1 Channel
Trigger Capacity	3 Triggers
SD Card Capacity	128GB
Vibration/Shock Rating	20G/100G
Input Voltage	DC 12V-36V
Frequency	2.4GHz
Transport Power	10mW
Transmission Distance	150M (No Obstruction) 20M (Obstruction)
Operating Temperature	-40°C ~ +75° C
Video System	Auto NTSC/PAL
Side Camera Specs
Camera	1/4" Sharp® Color CCD
Picture Elements	250,000 pixels
Gamma Correction	r=0.45 to 1.0
Image Sensor	420 TV lines, PAL: 500 (H) x 582 (V), NTSC: 510 (H) x 492 (V)
Lens	2.1mm
View Angle	120°
Sync System	Internal Synchronization
Infra-red distance	30 Feet (9 Infrared)
Usable Illumination	0 Lux (IR On)
Power Source	DC 12V-24V (+/- 10%)
S/N Ratio	More than 48dB
Electronic Iris	1/50, 160-1/100,000sec
Video Output	1Vp.p 75ohm
IR Switch Control	ACDS Automatic Control
Vibration and Shock Rating	20G / 100G
Operating Temperature	-30°C ~ +80°C / RH 95% Max
Storage Temperature	-30°C ~ +60°C / RH 95% Max

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Monitor Specs
Type	TFT LCD
Screen Size	7"
Pixel Resolution	800 X 480
Wireless System	2.4G Digital Wireless System
Automatic Start	Yes (Can Be Turned Off)
Display Brightness	400cd/m2
Video Input	4 Channel
Audio Input	1 Channel
Trigger Capacity	3 Triggers
SD Card Capacity	128GB
Vibration/Shock Rating	20G/100G
Input Voltage	DC 12V-36V
Frequency	2.4GHz
Transport Power	10mW
Transmission Distance	150M (No Obstruction) 20M (Obstruction)
Operating Temperature	-40°C ~ +75° C
Video System	Auto NTSC/PAL
Side Camera Specs
Camera	1/4" Sharp® Color CCD
Picture Elements	250,000 pixels
Gamma Correction	r=0.45 to 1.0
Image Sensor	420 TV lines, PAL: 500 (H) x 582 (V), NTSC: 510 (H) x 492 (V)
Lens	2.1mm
View Angle	120°
Sync System	Internal Synchronization
Infra-red distance	30 Feet (9 Infrared)
Usable Illumination	0 Lux (IR On)
Power Source	DC 12V-24V (+/- 10%)
S/N Ratio	More than 48dB
Electronic Iris	1/50, 160-1/100,000sec
Video Output	1Vp.p 75ohm
IR Switch Control	ACDS Automatic Control
Vibration and Shock Rating	20G / 100G
Operating Temperature	-30°C ~ +80°C / RH 95% Max
Storage Temperature	-30°C ~ +60°C / RH 95% Max

Note

Note: Please read description carefully. Do not base your order on the picture presented.
