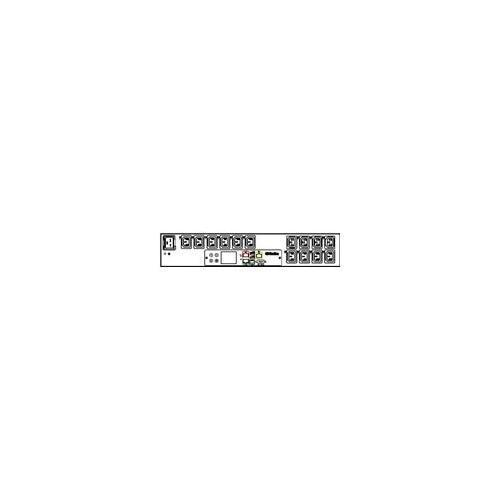

Raritan, PX3-5542-N2, Monitored and Switched Rack PDU 0U 3.3kVA 208V 16A, NEMA L6-20P Input, (14) C13 Outputs

The Raritan PX family of high-quality rack power distribution units (PDUs) offers real-time remote power monitoring of current (amps), voltage, power (kVA, kW) and energy consumption (kWh) with +/- 1% billing-grade accuracy. The Dominion PX series offers hundreds of models to meet all your data center applications, including models with outlet switching, individual outlet metering, high power for blade servers and high density applications and 400V power distribution.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Energy Metering	Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering Accuracy	ISO/IEC 62053-21 1%
Environmental Sensor Ready	Yes
Metering per Branch Circuit Breaker	No
Compatible Sensors	Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure
Cascading	Yes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection
Networking	(10/100/1000 Base T) Ethernet, Secondary redundant (10/100/1000 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n)
Onboard Display	Color, matrix LCD display: Voltage, current, or active power (per line, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation
Input
Input Plug	NEMA L6-20P (2P3W)
Nominal Voltage	208V
Maximum Input Current	20A
Rated Input Current	16A
Power Capacity	3.3kVA
Cord Length	3m
Output
Nominal Voltage	208V
Receptacles (Output Connections)	(14) IEC320 C13
Overload Protection	NA
Mounting	Tool-less Button Mount
Physical
Dimensions (WxDxH)	3.5" x 2.2" x 19.7" (89 x 55 x 500 mm)
Operating Temperature/Environment	60 C
Operating Relative Humidity	85%
Operating Elevation	0-6000ft

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Energy Metering	Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering Accuracy	ISO/IEC 62053-21 1%
Environmental Sensor Ready	Yes
Metering per Branch Circuit Breaker	No
Compatible Sensors	Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure
Cascading	Yes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection
Networking	(10/100/1000 Base T) Ethernet, Secondary redundant (10/100/1000 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n)
Onboard Display	Color, matrix LCD display: Voltage, current, or active power (per line, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation
Input
Input Plug	NEMA L6-20P (2P3W)
Nominal Voltage	208V
Maximum Input Current	20A
Rated Input Current	16A
Power Capacity	3.3kVA
Cord Length	3m
Output
Nominal Voltage	208V
Receptacles (Output Connections)	(14) IEC320 C13
Overload Protection	NA
Mounting	Tool-less Button Mount
Physical
Dimensions (WxDxH)	3.5" x 2.2" x 19.7" (89 x 55 x 500 mm)
Operating Temperature/Environment	60 C
Operating Relative Humidity	85%
Operating Elevation	0-6000ft
