Raritan PX3-5405R PDU 1.9kVA 120V 16A 1-Ph 2U L5-20P Input

  • Brand Raritan
  • Part # PX3-5405R
  • Condition
    Brand New
    Availability
    Contact Us
    Quantity
    Share:
    Ask a question

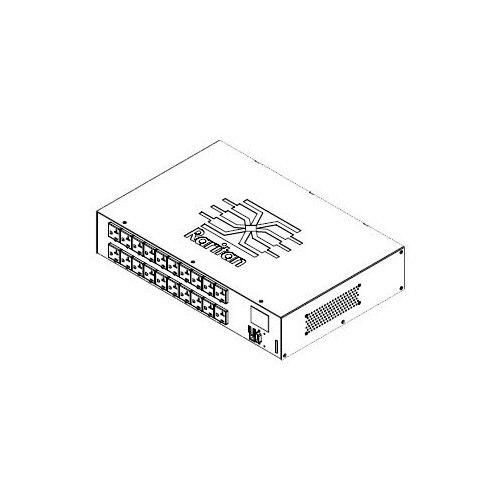

    Raritan, PX3-5405R, PDU 1.9kVA 120V 16A 1-Ph 2U L5-20P Input (20) 5-20R Outlets

    The Raritan PX family of high-quality rack power distribution units (PDUs) offers real-time remote power monitoring of current (amps), voltage, power (kVA, kW) and energy consumption (kWh) with +/- 1% billing-grade accuracy. The Dominion PX series offers hundreds of models to meet all your data center applications, including models with outlet switching, individual outlet metering, high power for blade servers and high density applications and 400V power distribution.

    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    Energy MeteringVoltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
    Metering AccuracyISO/IEC 62053-21 1%
    Environmental Sensor ReadyYes
    Metering per Branch Circuit BreakerNo
    Compatible SensorsTemperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.
    CascadingYes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection.
    Networking(10/100/1000 Base T) Ethernet, Secondary redundant (10/100 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).
    Onboard DisplayColor, matrix LCD display: Voltage, current, or active power (per line, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information).
    Input
    Input PlugNEMA 5-20P (2P3W)
    Nominal Voltage120V
    Maximum Input Current20A
    Rated Input Current16A
    Power Capacity1.9kVA
    Cord Length3m
    Output
    Nominal Voltage120V
    Receptacles (Output Connections)(20) NEMA 5-20R
    Overload ProtectionNA
    MountingRACK-KIT-PX-2U
    Physical
    Dimensions (WxDxH)17.3" x 11.5" x 3.5" (440 x 293 x 88 mm)
    Operating Temperature/Environment60 C
    Operating Relative Humidity85%
    Operating Elevation0-6000ft
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    Energy MeteringVoltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
    Metering AccuracyISO/IEC 62053-21 1%
    Environmental Sensor ReadyYes
    Metering per Branch Circuit BreakerNo
    Compatible SensorsTemperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.
    CascadingYes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection.
    Networking(10/100/1000 Base T) Ethernet, Secondary redundant (10/100 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).
    Onboard DisplayColor, matrix LCD display: Voltage, current, or active power (per line, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information).
    Input
    Input PlugNEMA 5-20P (2P3W)
    Nominal Voltage120V
    Maximum Input Current20A
    Rated Input Current16A
    Power Capacity1.9kVA
    Cord Length3m
    Output
    Nominal Voltage120V
    Receptacles (Output Connections)(20) NEMA 5-20R
    Overload ProtectionNA
    MountingRACK-KIT-PX-2U
    Physical
    Dimensions (WxDxH)17.3" x 11.5" x 3.5" (440 x 293 x 88 mm)
    Operating Temperature/Environment60 C
    Operating Relative Humidity85%
    Operating Elevation0-6000ft
    Note

    Note: Please read description carefully. Do not base your order on the picture presented.
