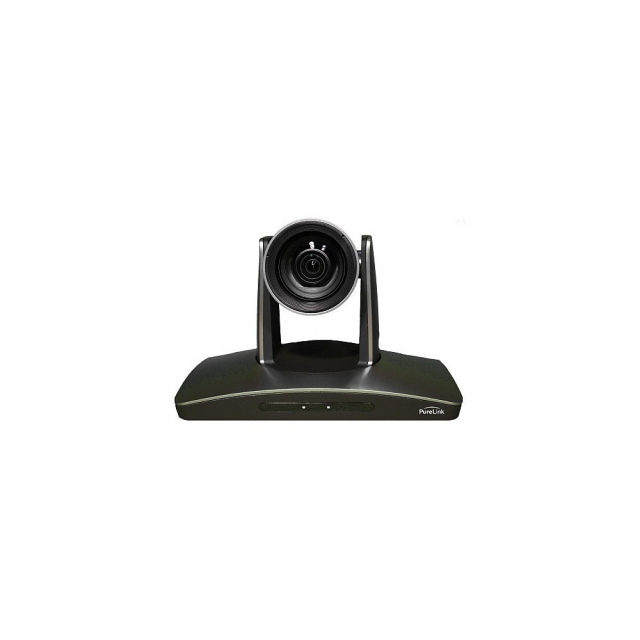

PureLink, VIP-CAM-30-20X, PureStream 1080p Pro PTZ Camera with HDMI, USB 2.0, and LAN Output

VIP-CAM-30-20X Includes Only:

1x VIP-CAM-30-20x
1x RS-232 Cable
1x Remote Control

Features:

20x High Performance Optical Zoom w 8x Digital Zoom (160x total zoom)
Advanced PTZ (Pan-Tilt-Zoom) function for higher precision and reliability
USB 2.0, HDMI, RTSP and RTMP outputs
VISCA and PELCO control

The VIP-CAM-30-20x is a 1080p camera with 20x optical zoom & and 8x digital zoom for capturing HD images from long distances. With support for HDMI, USB 2.0, and IP Streaming, this camera is ideal for broadcasting high definition video signals in conferencing, live broadcast, and security/surveillance applications. The VIP-CAM-30-20x can be powered with the supplied 100-240-50/60Hz UL listed AC adapter, or PoE 802.3af.

For more information, please see pdf file User Manual

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Image Sensor

1/2.8” Exmor CMOS, 2.14MP

Supported Resolutions

1080p/60
1080/30
1080i/60
720p/60
720p/30
1080p/50
1080p/25
1080i/50
720p/50
720p/25

Focal

f = 4.7mm - 94.0mm
F1.6~F3.5

Iris

F1.6 - F3.5

Optical Zoom

20x

Digital Zoom

8 x

Shortest Focus Distance

10mm - 1.000mm

Ield of View

2.5° ~6.3°, 59.5° - 2.9°

Minimum Illumination

0.5Lux

Shutter Speed

1/60s~1/10,000s

AGC

Auto/Manual

White Balance

Auto/One Push/Manual/Auto Tracking/Static

AE Control

Auto/Manual/Shutter Priority/Bright Priority

S/N rate

≥ 50db

Tilt Range

-30° - +90°

Tilt Speed

0.1° - 90°/s

Weight

1200g (1.2kg)

Gain

Auto/Manual

BLC

Support

Pan & Tilt

Pan Range

-170° - +170°

Tilt Range

-30° - +90°

Pan Speed

0.1° ~120° /s

Tilt Speed

0.1° - 90°/s

Preset Number

256

OSD

Supported

Image Flip

Supported

Video Compression

H.265, H.264

Network

Maximum Image Size

1920x1080 at 60fps

Video Compression

H.265, H.264

Auido Compression

AAC

Protocol

RTSP, RTMP, ONVIF

Network Support

Dual Stream
up to (10) simultaneous users

Interface

Ethernet

RJ45(10M/100M)

Video Output

HTTP
TCP
UDP
RTSP
RTMP
ONVIF

Control Interface

RS-232 IN & RS-232 OUT

Audio Port

1x Channel Line IN

USB Interface

1x Channel USB 2.0

Power Jack

DC12V

General

Control Protocol

VISCA and Daisy Chain Support, PELCO-P, PELCO-D

Address

0 - 63

Power Consumption

<18W

Operating Temperature

32° ~ 104°F (0° ~ 40°C)

Storage Temperature

-4° ~ 140°F (-20° - 60°C)

Humidity

Operating: 10 ~ 90% RH
Storage: 10 ~ 95% RH

Dimensions

243mm x 145mm x 163mm

Enclosure

Grey

Weight

1200g (1.2kg)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Image Sensor

1/2.8” Exmor CMOS, 2.14MP

Supported Resolutions

1080p/60
1080/30
1080i/60
720p/60
720p/30
1080p/50
1080p/25
1080i/50
720p/50
720p/25

Focal

f = 4.7mm - 94.0mm
F1.6~F3.5

Iris

F1.6 - F3.5

Optical Zoom

20x

Digital Zoom

8 x

Shortest Focus Distance

10mm - 1.000mm

Ield of View

2.5° ~6.3°, 59.5° - 2.9°

Minimum Illumination

0.5Lux

Shutter Speed

1/60s~1/10,000s

AGC

Auto/Manual

White Balance

Auto/One Push/Manual/Auto Tracking/Static

AE Control

Auto/Manual/Shutter Priority/Bright Priority

S/N rate

≥ 50db

Tilt Range

-30° - +90°

Tilt Speed

0.1° - 90°/s

Weight

1200g (1.2kg)

Gain

Auto/Manual

BLC

Support

Pan & Tilt

Pan Range

-170° - +170°

Tilt Range

-30° - +90°

Pan Speed

0.1° ~120° /s

Tilt Speed

0.1° - 90°/s

Preset Number

256

OSD

Supported

Image Flip

Supported

Video Compression

H.265, H.264

Network

Maximum Image Size

1920x1080 at 60fps

Video Compression

H.265, H.264

Auido Compression

AAC

Protocol

RTSP, RTMP, ONVIF

Network Support

Dual Stream
up to (10) simultaneous users

Interface

Ethernet

RJ45(10M/100M)

Video Output

HTTP
TCP
UDP
RTSP
RTMP
ONVIF

Control Interface

RS-232 IN & RS-232 OUT

Audio Port

1x Channel Line IN

USB Interface

1x Channel USB 2.0

Power Jack

DC12V

General

Control Protocol

VISCA and Daisy Chain Support, PELCO-P, PELCO-D

Address

0 - 63

Power Consumption

<18W

Operating Temperature

32° ~ 104°F (0° ~ 40°C)

Storage Temperature

-4° ~ 140°F (-20° - 60°C)

Humidity

Operating: 10 ~ 90% RH
Storage: 10 ~ 95% RH

Dimensions

243mm x 145mm x 163mm

Enclosure

Grey

Weight

1200g (1.2kg)
