PureLink PM-HOS4-DA-U PureMedia Dante Audio with 4 x HDMI Output Card

Signal Type: Output
  • Brand PureLink
  • Part # PM-HOS4-DA-U
  • Model # PureMedia
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

    Options and Related Products

    Signal Type:
    Signal Type: Output

    PureLink, PM-HOS4-DA-U, PureMedia Dante Audio with (4) Ultra HD 4K/30 HDMI Output Card

    Features:

    • 4 HDMI ports, 4 Stereo In/out ports
    • Female HDMI connector, Female 3.5 mm stereo jack
    • RGB digital Video (DVI and HDMI standards) or YCrCb digital component Video (HDMI)
    • Dante or AES67 selectable via software
    • Primary and secondary IP Audio ports
    • Selectable IP audio latency
    • Supports up to 3840 x 2160 at 30Hz resolutions

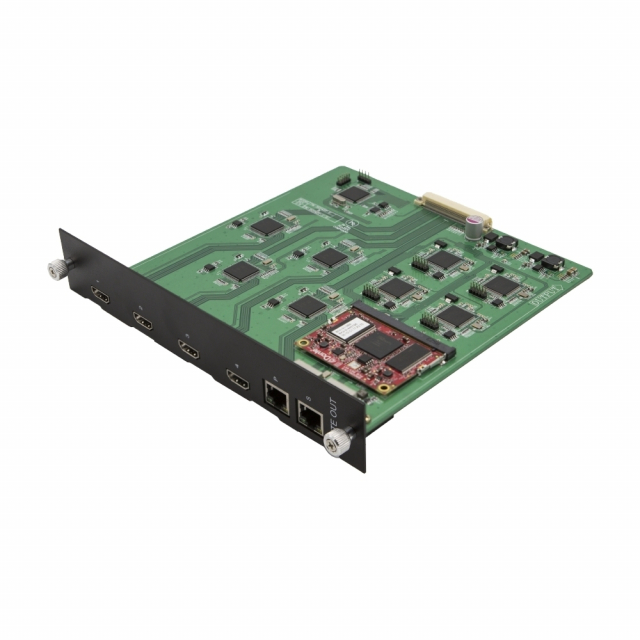

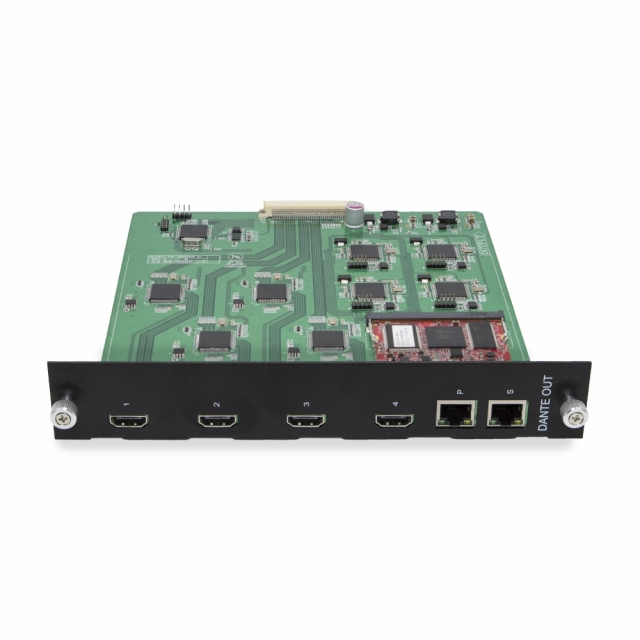

    The PM-HOS4-DA-U is a Dante Audio with HDMI ports output board for PureMedia™ matrix switchers supporting UltraHD/4K resolutions and Dante/AES67 IP audio. Each PM-HOS4-DA-U has primary and secondary RJ-45 ports for IP audio and four HDMI ports.

    For more information, please see pdf file Data Sheet and pdf file User Manual

    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Optional Accessories
    Reviews
    Connector Type(4) Female HDMI Type A outputs
    Digital Audio FormatsLPCM 8 Channel
    Operation StandardDVI 1.0, HDMI 1.4
    Maximum ResolutionUp to 3840 x 2160 at 30Hz
    HDCP CompatibleHDCP 2.0
    Single Board Weight1 lb. (0.45 kg)
    Maximum Pixel Clock300MHz
    EqualizationAuto
    IP Audio Transmitter TypeDante/AES67, Software Selectable
    IP Output ChannelHDMI Audio 32 channel
    IP Audio FormatUncompressed, 24bit, 48KHz
    IP Audio LatencySelectable, 0.25ms, 0.5ms, 1.0ms, 2.0ms, 5.0ms
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    Connector Type(4) Female HDMI Type A outputs
    Digital Audio FormatsLPCM 8 Channel
    Operation StandardDVI 1.0, HDMI 1.4
    Maximum ResolutionUp to 3840 x 2160 at 30Hz
    HDCP CompatibleHDCP 2.0
    Single Board Weight1 lb. (0.45 kg)
    Maximum Pixel Clock300MHz
    EqualizationAuto
    IP Audio Transmitter TypeDante/AES67, Software Selectable
    IP Output ChannelHDMI Audio 32 channel
    IP Audio FormatUncompressed, 24bit, 48KHz
    IP Audio LatencySelectable, 0.25ms, 0.5ms, 1.0ms, 2.0ms, 5.0ms
