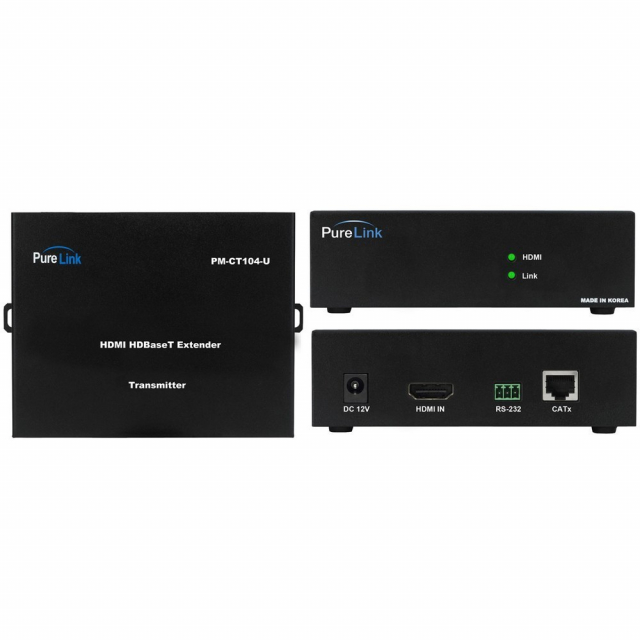

Buy PureLink PM-CT104-U, PureMedia 4K HDMI to CATx (HDBaseT) Transmitter

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Video Connections:: Video Connections: 1 x DVI 29P/HDMI 19P Female

Features:

Extends uncompressed digital video, audio, and control signals over a single CAT-x cable
Supports cable lengths up to 330 ft (100 m) for all resolutions up to 1080p
Supports cable lengths up to 230 ft (70 m) for Ultra HD/4K resolutions
Supports Dolby® TrueHD, DTS-HD®, and uncompressed 7.1 linear PCM audio
HDCP compliant
RS-232 control

The PM-CT104-U / PM-CR104-U extension system offers worry free distribution of HDMI 1.4b Ultra HD over a single CAT-x cable without any special setup or configuration, and works flawlessly as part of any PureMedia™ distribution system.

For more information, please see pdf file Data Sheet and User Manual

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Connections

Connector Type(s)

DVI 29P/HDMI 19P Female (x 1)
3.5mm Stereo Jack (x 1)
RJ-45 Jack
3P /3.5MM Terminal Block (for Power)
3P /3.5MM Terminal Block (for RS-232)

Performance

Supported Distance

1920 x 1200 at 60Hz or at 1080p, Ultra HD 4K : 330 ft (100m)

Supported Resolutions

up to 4K at 30Hz (4:4:4), 1080p at 60Hz

HDCP Compliance

HDCO 2.0

Compliance

DVI 1.0 , HDMI 1.4b, HDBaseT

Data Transfer Rate

3.4 Gbps/ch, Total 10.2 Gbps Max

Power Consumption

DC +12V

Power Supply

10Watts Max

Operating Temperature

32° ~ 117° F (0° to 47° C)

Storage Temperature

- 40° ~ 158° F (-40° to 70° C)

Relative Humidity

0 ~ 90% non-condensing

MTBF

50,000 hours

Enclosure

Product Dimensions

3.94

Product Weight

0.6 lbs (0.27 Kg)

Product Dimensions

12.21 x 7.09 x 2.76 in. (310 x 180 x 70 mm)

Product Weight

7.7 lbs (3.5 kg)

Notes
