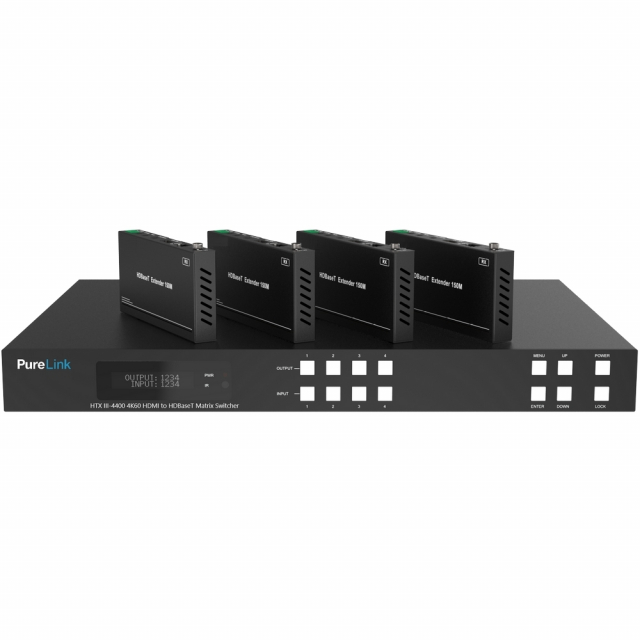

PureLink HTX III-4400 HDTools 4x4 Ultra HD 4K60 Matrix Switcher

PureLink, HTX III-4400, HDTools 4 x 4 Ultra HD 4K60 4:4:4, HDMI 2.0b, HDCP 2.2, to HDBaseT Matrix Switcher with Audio De-embed

HTX III-4400 Includes Only:

• HTX III 4400 4K60 Matrix Switch
• 1 x IEC power cable
• 1 x DB9M to DB9F RS232 controls cable
• 1 x IR remote control
• 2 x Rack ear adapters
• 1 x 3 pin mini phoenix connector
• 5 x IR Receiver cables
• 5 x IR Transmitter cable

Features:

• (4) Ultra HD/4K Matrix HDMI inputs switchable to (4) Ultra HD/4K HDbaset extenders
• HDCP v2.2 compliance, HDMI 1.4b ultra HD performance
• hdbaset 5-play technology for 328' extension: IR, bi-directional RS-232 and Ethernet extension, PoE
• Supports distances up to 492 ft. (150 m) via CATx
• Supports pass-through audio up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
• CEC control of peripherals
• 24V PoC on all HDBaseT ports
• Control via on-panel Buttons, IR, Web GUI, and RS-232, LAN via API
• Crestron and QSC modules available
• EDID Management: 22 selectable EDID; 2 User Defined; 16 readable (from HDMI or HDBaseT output connections)

The HDTools™ HTX III-4400 provides matrix switching and extension up to 150 meters (492 feet) of (4) Ultra HD/4K sources via HDBaseT™ (with HTX III-RX receivers, sold separately). Each HDBaseT output includes a mirrored local HDMI output on the matrix. The HTX III-4400 also features de-embedding of balanced stereo analog audio and SPDIF on the switch for each output, and unbalanced stereo analog de-embedding on each Receiver.

For more information, please see User Manual
