PEPLINK, MAX-BR1-MINI-LTE-US-T-PRM, Single Cellular Cat 4 Router - PrimeCare

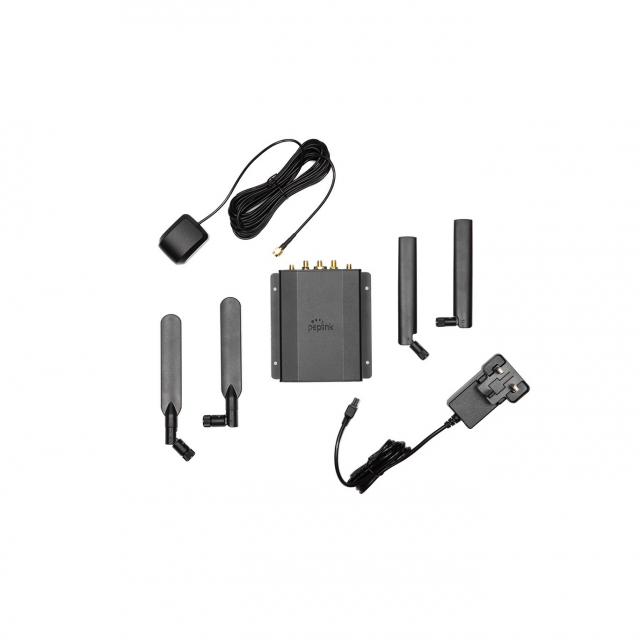

MAX-BR1-MINI-LTE-US-T-PRM Includes Only:

2x LTE Antennas (ACW-235)
2x Dual Band Wi-Fi Antennas (ACW-342)
1x GPS Active Antenna (ACW-232)
1x 12V 2A 4pin Power Supply (ACW-632)

For more information, please see Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Wan Interface

1x 10/100/1000M Ethernet
1 x Embedded Cellular Modem with
Redundant SIM Slots

Lan Interface

2x 10/100/1000M Ethernet

Wi-Fi Interface

Simultaneous Dual-Band (2.4GHz/5GH2)
Wi-Fi 5, 2X2 MIMO
Wi-Fi WAN' and/or AP

Speedfusion Features

ot Failover WAN Smoothing

Number Of Speedfusion Vpn Peers

2/5

Feature

GPIO, Ignition Sensing

Router Throughput

300Mbps

Recommended Users

1-60

Cellular Data Rate3 (Downlink/Uplink)

CAT-7: 300 Mbps/150 Mbps
CAT-6: 300 Mbps/50 Mbps
CAT-4: 150 Mbps/50 Mbps

Antenna Connectors

2x SMA Cellular Antenna Connectors
2x RP-SMA Wi-Fi Antenna Connectors
1x SMA GPS Antenna Connector

Power Port

10V-30V DC

Ac Adapter

AC Input 100V-240V/DC Output 12V

Power Consumption

13W (nominal), 18W (max.)

Dimension

5.0 x 4.2 x 1.4 inches

Weight

0.95 pounds

Operating Temperature

-40° - 149°F /-40°-65°C

Humidity

15% - 95% (non-condensing)

Certifications

FCC, CE, RoHS

Sim Card Size

Nano-SIM (4FF)

3G Bands

WCDMA/HSPA+/DC-HSPA+ B2, B5

Lte Bands

B2, B4, B5, B12, B13, B14, B66, B71

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Wan Interface

1x 10/100/1000M Ethernet
1 x Embedded Cellular Modem with
Redundant SIM Slots

Lan Interface

2x 10/100/1000M Ethernet

Wi-Fi Interface

Simultaneous Dual-Band (2.4GHz/5GH2)
Wi-Fi 5, 2X2 MIMO
Wi-Fi WAN' and/or AP

Speedfusion Features

ot Failover WAN Smoothing

Number Of Speedfusion Vpn Peers

2/5

Feature

GPIO, Ignition Sensing

Router Throughput

300Mbps

Recommended Users

1-60

Cellular Data Rate3 (Downlink/Uplink)

CAT-7: 300 Mbps/150 Mbps
CAT-6: 300 Mbps/50 Mbps
CAT-4: 150 Mbps/50 Mbps

Antenna Connectors

2x SMA Cellular Antenna Connectors
2x RP-SMA Wi-Fi Antenna Connectors
1x SMA GPS Antenna Connector

Power Port

10V-30V DC

Ac Adapter

AC Input 100V-240V/DC Output 12V

Power Consumption

13W (nominal), 18W (max.)

Dimension

5.0 x 4.2 x 1.4 inches

Weight

0.95 pounds

Operating Temperature

-40° - 149°F /-40°-65°C

Humidity

15% - 95% (non-condensing)

Certifications

FCC, CE, RoHS

Sim Card Size

Nano-SIM (4FF)

3G Bands

WCDMA/HSPA+/DC-HSPA+ B2, B5

Lte Bands

B2, B4, B5, B12, B13, B14, B66, B71

Note

Note: Please read description carefully. Do not base your order on the picture presented.
