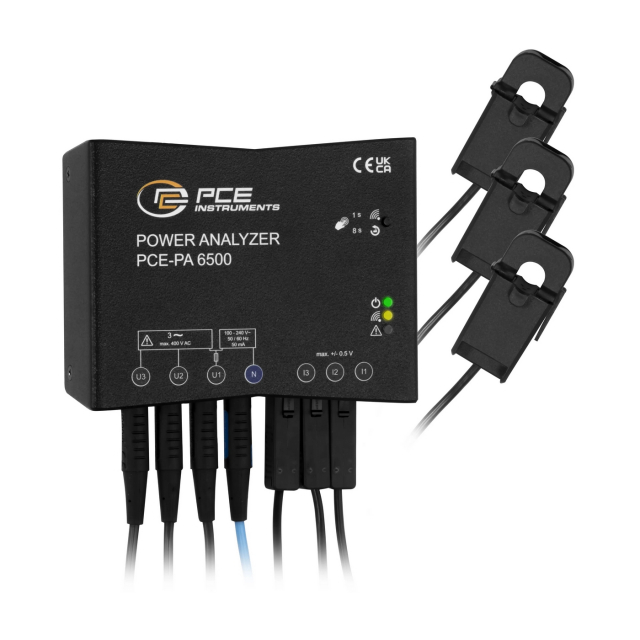

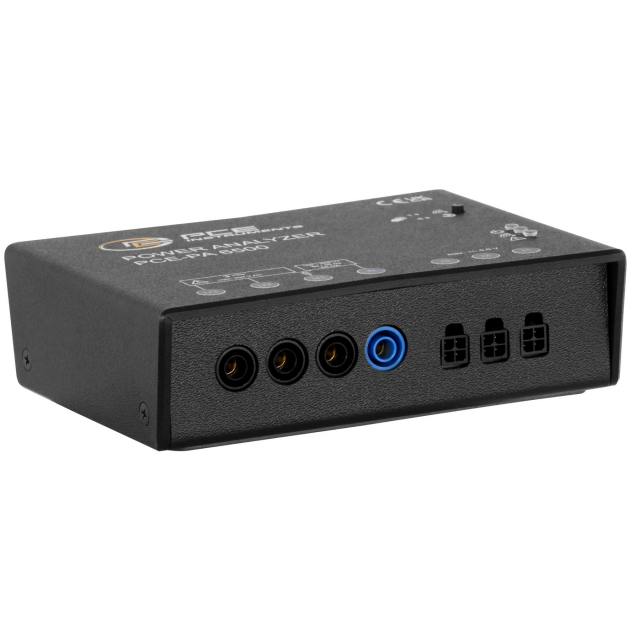

PCE Instruments PCE-PA 6500 R11 0 - 80 A Digital Power Meter

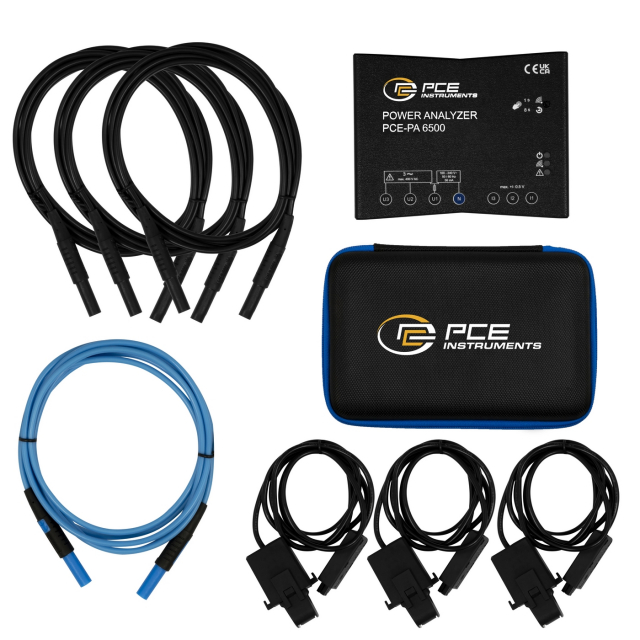

PCE-PA 6500 R11 Includes Only:

• 1 x PCE-PA 6500 R11 Power Meter
• 4 x test leads (blue, brown, black, gray) 2 m
• 3 x Rogowski coils
• 3 x magnetic measuring adaptors 6.6 mm
• 1 x blue crocodile clip
• 1 x user manual
• 1 x service bag

Features:

• Active, apparent and reactive power
• Power factor and electrical energy
• 32 GB internal memory
• App for Android
• Data as CSV fil
• Measurement via Rogowski coils
• No additional mains connection necessary

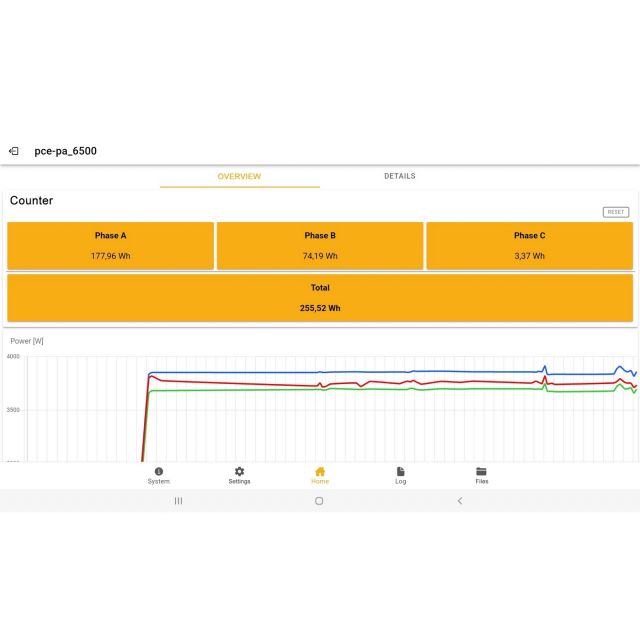

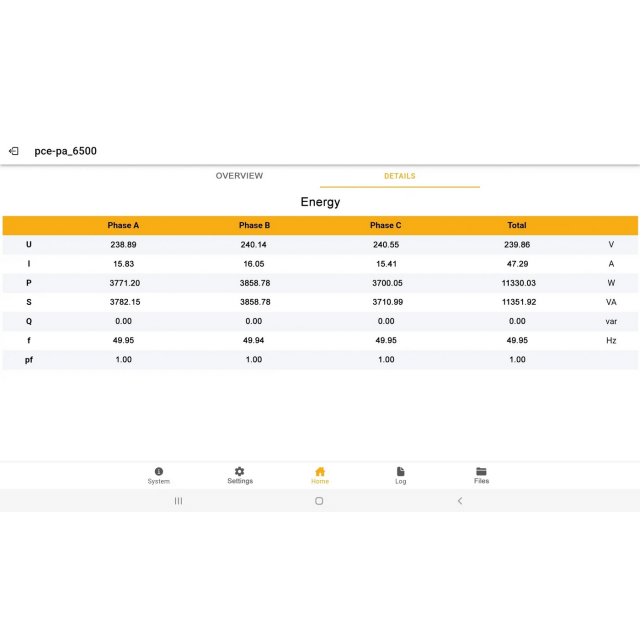

The Power Meter measures current and voltage values using the connected current transformers and test leads. From this, the active, apparent and reactive power are determined and transmitted to the measuring platform every second via Wi-Fi. The data is then filed historically on the Power Meter, processed graphically and can be analysed or exported. The measurement with the Power Meter is carried out using Rogowski coils or folding current transformers.

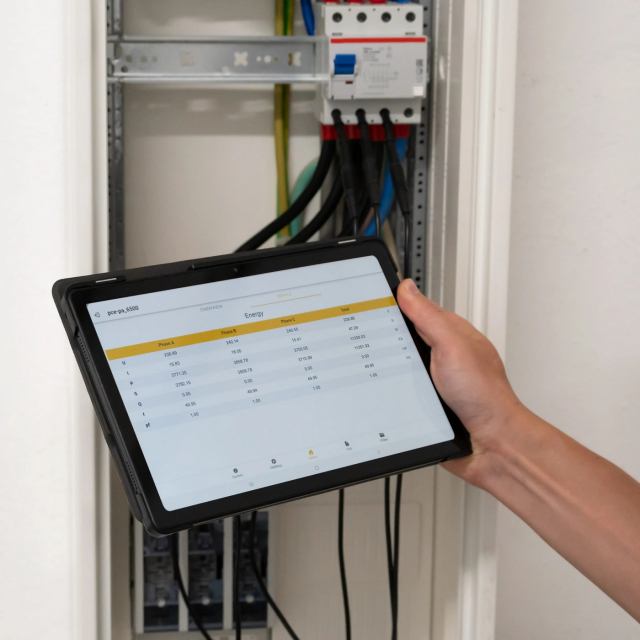

Alternatively the data can be recorded in the built-in 32 GB flash memory in the form of a CSV file for further processing at a later date. It is possible to send the CSV files periodically by e-mail, upload them to a server via FTP or transfer them to the measurement platform once the measurement has been completed. Interaction with the Power Meter is mainly via Wi-Fi and web browser or via app (BLE).

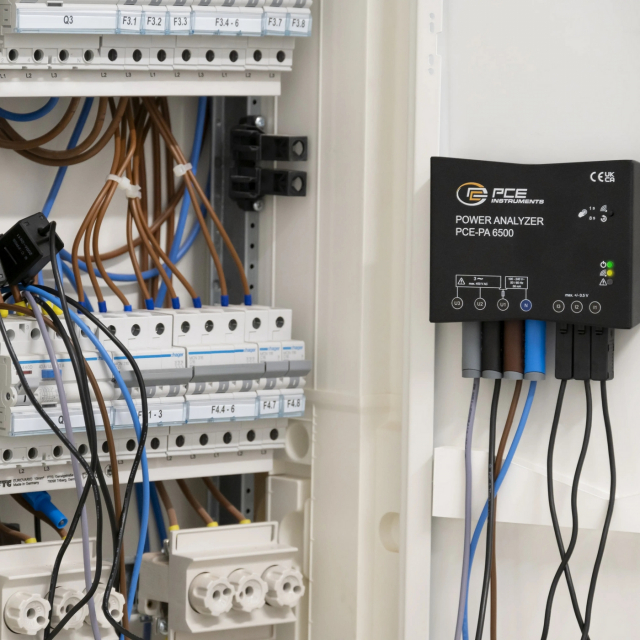

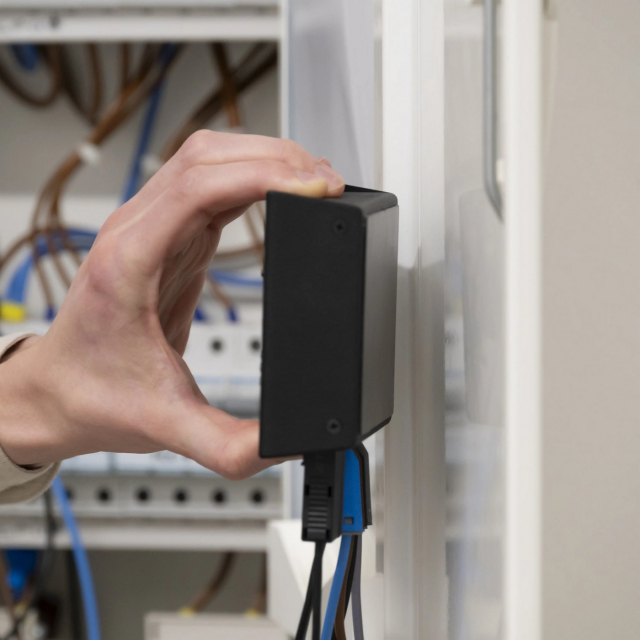

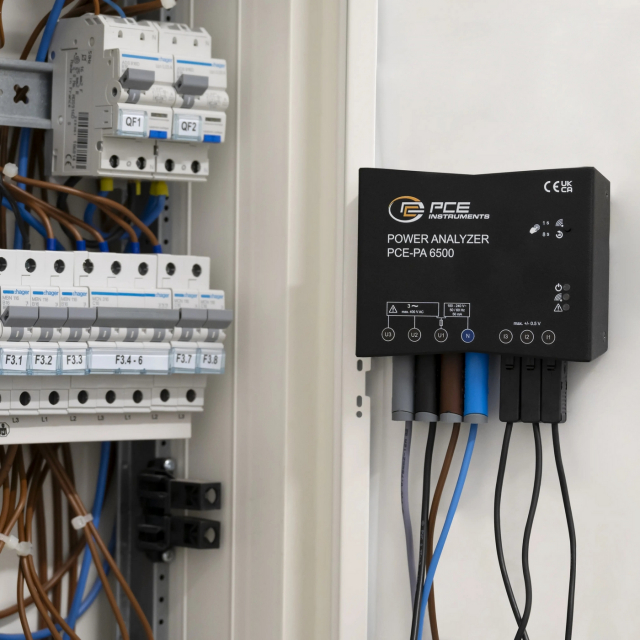

Power is supplied and measured via magnetic measuring tips and connection terminals or probes. The Power Meter can be connected into any main and sub-distribution board as well as into devices and systems - the power supply does not have to be interrupted. Managing the power supply is the top priority. Without measuring consumption and recording instrumental values such as current, voltage, frequency and power, it is virtually impossible to improve efficiency. The Power Meter makes it possible to monitor the entire energy consumption and helps to reduce energy costs.
