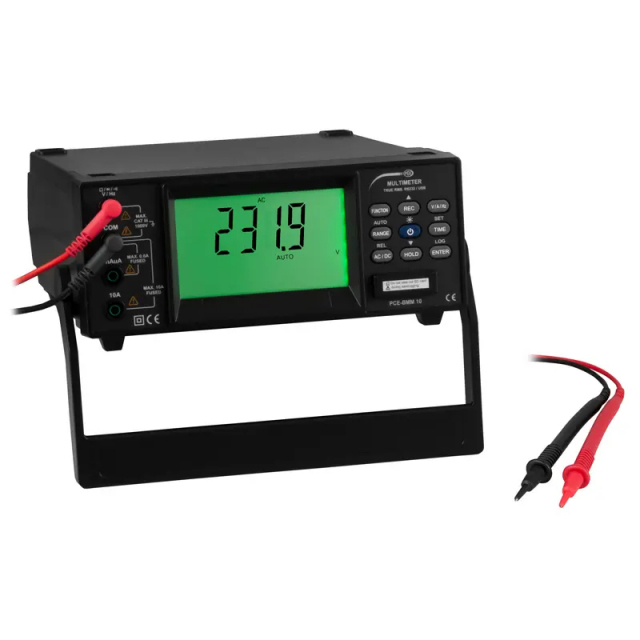

PCE Instruments PCE-BMM 10 Bench Type Multimeter with Data Logger

PCE-BMM 10 Includes Only:

• 1 x Digital Multimeter PCE-BMM 10
• 1 x Set of test leads
• 1 x SD card
• 1 x User manual

Features:

• Automatic / manual range selection
• Also suitable for mobile use
• Continuity test, diode test
• TrueRMS measurement
• RS-232 interface
• Mains / AC power adapter and battery operation
• Frequency measurement up to 60 MHz
• ISO calibration optionally available

Digital Multimeter data logger PCE-BMM 10 Table multimeter with many measuring functions / Data logger / Mains operation (AC power adapter) and battery operation / TrueRMS measuring device / Measuring range up to 1000V and 10 A / RS-232 interface / Automatic switch-off function / Large and illuminated LC display / Storage rate between 1 ... 3600 s

This PCE-BMM 10 digital multimeter data logger is equipped for mobile as well as stationary operation. As a supply voltage, the table multimeter with mains voltage (AC power adapter) as well as in battery operation can be used. A large range of functions of the measuring ranges leaves hardly anything to be desired. In addition to accurately capturing VDC, VAC, ADC, AAC and resistance, this desktop multimeter also determines the capacity and frequency. An acoustic continuity test and a diode test are also integrated in the desk multimeter.

In addition, the measured values can be stored on an SD card of up to 32 GB on the table multimeter using the data logger function. As a result, long-term recordings of electrical components or assemblies, machinery and equipment are possible. Thanks to the large and illuminated display, the readings are very easy to read. This table multimeter can optionally also be laboratory-calibrated and equipped with an ISO calibration certificate (at the time of initial order or recalibration, eg annually).
