Buy Owon XDG2060, XDG2000 Series 2-CH Arbitrary Waveform Generator

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Sample Rate (GSa/s):: Sample Rate (GSa/s): 0.5

XDG2060 Includes Only:

1 x XDG2060
2 x Q9 Cable
1 x Power Cord
1 x USB Cable
1 x CD ROM
1 x Quick Guide

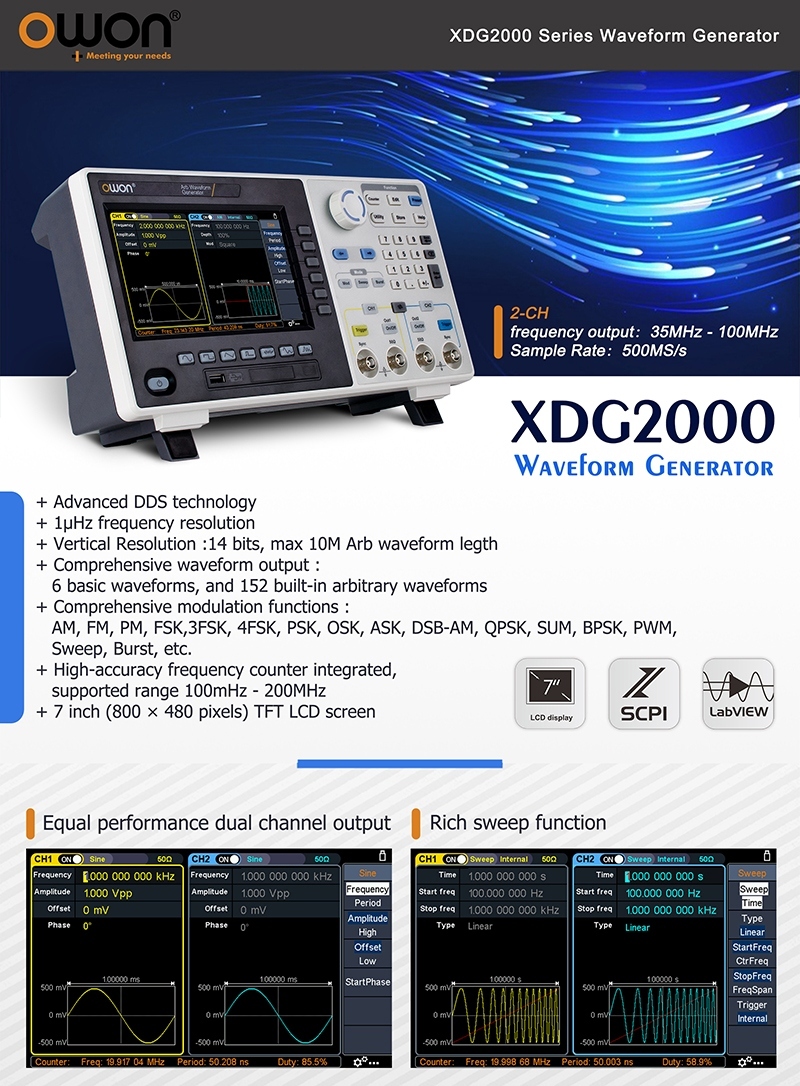

Features:

Max 100MHz frequency output
500MSa/s Sample rate, Vertical resolution 1μHz
14 bits Vertical Resolution, 10Marb waveform length
Comprehensive waveform output : 6 basic waveforms, and 150 built-in arbitrary waveforms
Comprehensive modulation functions : AM, FM, PM, FSK, 3FSK, 4FSK, PSK, OSK, ASK, DSB-AM, QPSK, SUM, BPSK, PWM, Sweep, and Burst
High-accuracy frequency counter integrated, supported range 100mHz - 200MHz
SCPI, and LabVIEW supported
7 inch (800 x 480 pixels) LCD

Features

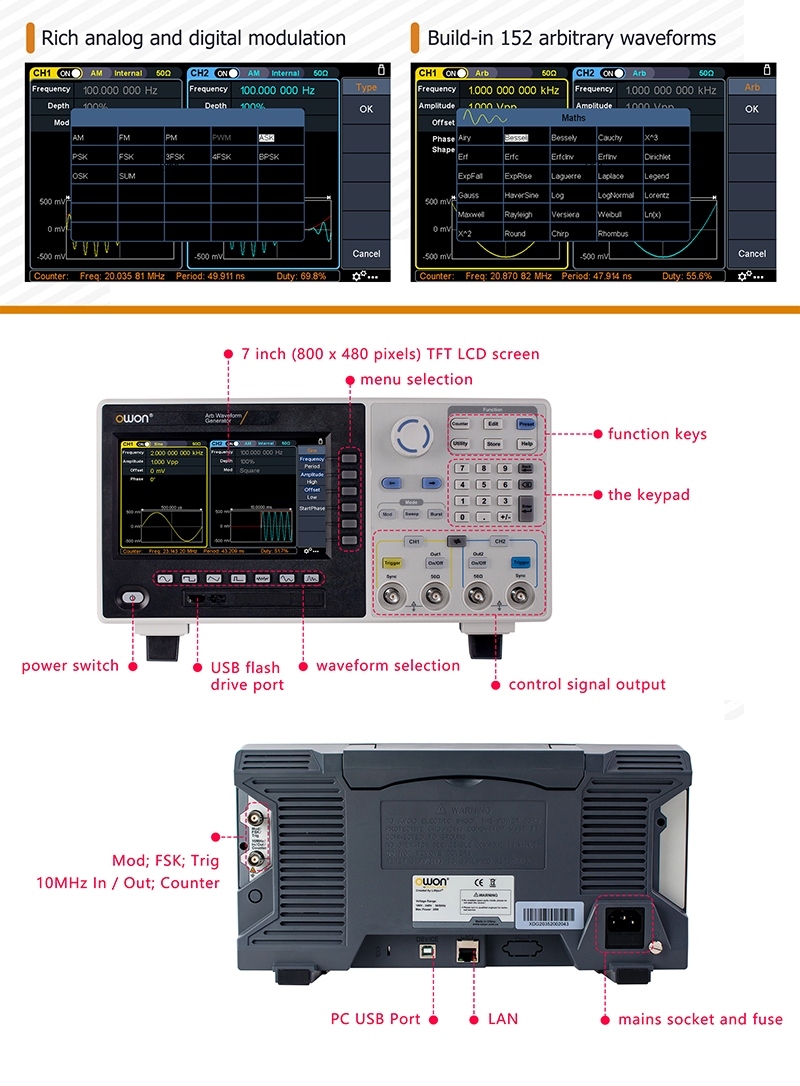

Functions

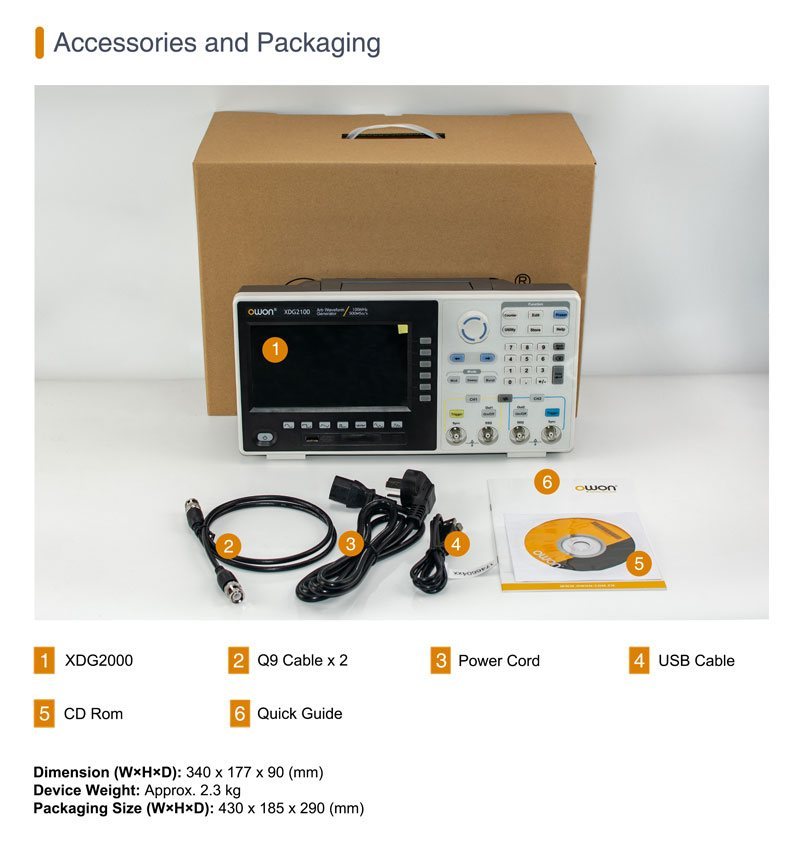

Accessories and Packaging

For more information, please see pdf file Data Sheet and User Manual

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Channel

Frequency Output

60MHz

Sample Rate

500MSa/s

Vertical Resolution

14 bits

Waveform

Standard Waveform

sine, square, pulse, ramp, noise, and harmonic

Arbitrary Waveform

exponential rise, exponential fall, sin(x)/x, step wave, and others,
total 150 built-in waveforms, and user-defined arbitrary waveform

Frequency (resolution 1μHz)

Sine

1μHz-60MHz

Square

1μHz ~ 30MHz

Pulse

1μHz ~ 25MHz

Ramp

1μHz ~ 3MHz

Noise (-3dB typical)

60MHz

Arbitrary Waveform

1μHz ~15MHz

Harmonic

1μHz ~30MHz

Accuracy

±2ppm, 25°C±5°C

Waveform Length

2 points - 10M points

Amplitude

Into 50Ω load

1mVpp ~ 10Vpp(≤ 25MHz)
1mVpp ~ 5Vpp (≤60MHz)
1mVpp ~ 2.5Vpp(≤100MHz)

Modulation

Type

AM, DSB-AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK, PWM, SUM

Frequency Counter

Function

Frequency, period, +width, -width, +duty, and -duty

Frequency Range

100mHz ~ 200MHz

Frequency Resolution

7 digits

Input / Output

Input mode

frequency counter,
external modulation input,
external trigger input,
Internal clock output,
external reference clock input / output

Communication Interface

USB Host, USB Device,LAN

Mechanical specifications

Size

340mm x 177mm x 90mm

Weight

2.3kg

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Channel

Frequency Output

60MHz

Sample Rate

500MSa/s

Vertical Resolution

14 bits

Waveform

Standard Waveform

sine, square, pulse, ramp, noise, and harmonic

Arbitrary Waveform

exponential rise, exponential fall, sin(x)/x, step wave, and others,
total 150 built-in waveforms, and user-defined arbitrary waveform

Frequency (resolution 1μHz)

Sine

1μHz-60MHz

Square

1μHz ~ 30MHz

Pulse

1μHz ~ 25MHz

Ramp

1μHz ~ 3MHz

Noise (-3dB typical)

60MHz

Arbitrary Waveform

1μHz ~15MHz

Harmonic

1μHz ~30MHz

Accuracy

±2ppm, 25°C±5°C

Waveform Length

2 points - 10M points

Amplitude

Into 50Ω load

1mVpp ~ 10Vpp(≤ 25MHz)
1mVpp ~ 5Vpp (≤60MHz)
1mVpp ~ 2.5Vpp(≤100MHz)

Modulation

Type

AM, DSB-AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK, PWM, SUM

Frequency Counter

Function

Frequency, period, +width, -width, +duty, and -duty

Frequency Range

100mHz ~ 200MHz

Frequency Resolution

7 digits

Input / Output

Input mode

frequency counter,
external modulation input,
external trigger input,
Internal clock output,
external reference clock input / output

Communication Interface

USB Host, USB Device,LAN

Mechanical specifications

Size

340mm x 177mm x 90mm

Weight

2.3kg

Note

Note: Please read description carefully. Do not base your order on the picture presented.
