Opticon C41SBU1-00 C-41 Cabled Barcode Scanner

  • Brand Opticon
  • Part # C41SBU1-00
  • Model # C-41
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

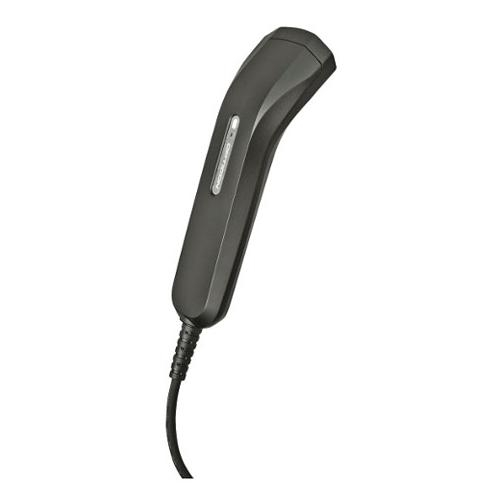

    Cabled CCD Barcode scanner

    The C-41S is a cabled, handheld CCD barcode scanner that features a simple ergonomic design and enhanced decoding algorithms for ultra-fast (300 scans/second) barcode scanning. A single red LED aiming line helps to quickly find the appropriate scanning position and it"s capable of scanning barcodes from LCD screens and mobile phones. The C-41S is an ideal solution for a wide variety of applications in health care, retail, manufacturing, warehousing, transportation and logistics, and hospitality.

    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    Visual1 LED
    AudibleBuzzer
    Entry Options1 scan key
    USBVersion 2.0, HID/COM (VCP)
    Voltage Requirement (USB)4.5 - 5.5V
    Voltage Requirement (RS-232C)5.5 - 6.5V
    Light Source1 red LED
    Scan MethodCCD linear sensor, 1500 pixels
    Scan Rate300 scans/sec
    Trigger ModeManual, auto-trigger
    Reading Pitch Angle-50 to 0°, 0 to +50°
    Reading Skew Angle-65 to 0°, 0 to +65°
    Reading Tilt Angle-25 to 0°, 0 to +25°
    CurvatureR>15 mm (EAN 8), R>20 mm (EAN 13)
    Minimum Resolution At Pc S 0.90.076 mm
    Ambient Light Immunity10,000 lx
    Drop Test5 ft (1.5 m) drop onto concrete surface
    Vibration Test10 - 100 Hz with 2G for 1 hour
    Protection RateIP 42
    Dimensions (W x H x D)2.2 x 1.33 x 6.06 in
    Power Supply100-240V/0.5A, 50/60 Hz, 6V/2A
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    Visual1 LED
    AudibleBuzzer
    Entry Options1 scan key
    USBVersion 2.0, HID/COM (VCP)
    Voltage Requirement (USB)4.5 - 5.5V
    Voltage Requirement (RS-232C)5.5 - 6.5V
    Light Source1 red LED
    Scan MethodCCD linear sensor, 1500 pixels
    Scan Rate300 scans/sec
    Trigger ModeManual, auto-trigger
    Reading Pitch Angle-50 to 0°, 0 to +50°
    Reading Skew Angle-65 to 0°, 0 to +65°
    Reading Tilt Angle-25 to 0°, 0 to +25°
    CurvatureR>15 mm (EAN 8), R>20 mm (EAN 13)
    Minimum Resolution At Pc S 0.90.076 mm
    Ambient Light Immunity10,000 lx
    Drop Test5 ft (1.5 m) drop onto concrete surface
    Vibration Test10 - 100 Hz with 2G for 1 hour
    Protection RateIP 42
    Dimensions (W x H x D)2.2 x 1.33 x 6.06 in
    Power Supply100-240V/0.5A, 50/60 Hz, 6V/2A
