Buy One Stop Systems OSS-KIT-EXP-3810-1M, PCIe x16 Gen3 Host to Target Kit

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

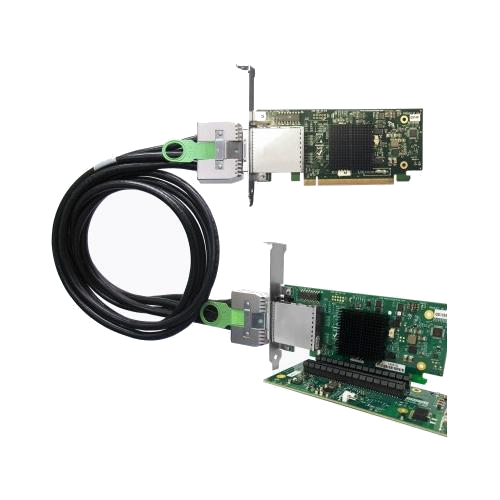

The PCIe x16 Gen 3 expansion kit connects a server to one I/O card. The PCIe x16 Gen 3 switch-based cable adapter plugs into a server and cables to a PCIe x16 Gen 3 switch-based target cable adapter. The PCIe x16 3.0 slot backplane supports up to a PCIe x16 Gen3 add-in board.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Subject to the use of all the optional accessories

Form Factor

PCIe half card

Operating Temperature

0°C to +70°C environment

Storage Temperature

-40°C to 85°C

Operating Humidity

10% to 90% relative humidity non-condensing

Storage Humidity

5% to 95% relative humidity non-condensing

Power

1.5A at 3.3V; 900mA at 12V; 250mA at 3.3V (aux)

Connectors

PCIe x16 cable connector
PCIe x16 edge connector

Industry Specifications

PCIe External Cabling Specification, Rev. 1.0
PCI Express Card Electromechanical
Specification, Rev. 3.0
PCI Express Base Specification, Rev. 3.0
ATX Specification, Version 2.2

PCB

PCI Express add-in card standard
PCIe x16 cable
PCB thickness .063 +/-0.008 inch (1.6 +/- 0.2mm)
Mounting holes for face plate

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Subject to the use of all the optional accessories

Form Factor

PCIe half card

Operating Temperature

0°C to +70°C environment

Storage Temperature

-40°C to 85°C

Operating Humidity

10% to 90% relative humidity non-condensing

Storage Humidity

5% to 95% relative humidity non-condensing

Power

1.5A at 3.3V; 900mA at 12V; 250mA at 3.3V (aux)

Connectors

PCIe x16 cable connector
PCIe x16 edge connector

Industry Specifications

PCIe External Cabling Specification, Rev. 1.0
PCI Express Card Electromechanical
Specification, Rev. 3.0
PCI Express Base Specification, Rev. 3.0
ATX Specification, Version 2.2

PCB

PCI Express add-in card standard
PCIe x16 cable
PCB thickness .063 +/-0.008 inch (1.6 +/- 0.2mm)
Mounting holes for face plate

Note

Note: Please read description carefully. Do not base your order on the picture presented.
