Buy OMAX M837ZL-PHD-A185A-C90U, Phase Contrast Microscope 9MP Camera, Case

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Type:: Type: Phase Contrast Trinocular Microscope with 9MP Camera and Aluminum Carrying Case

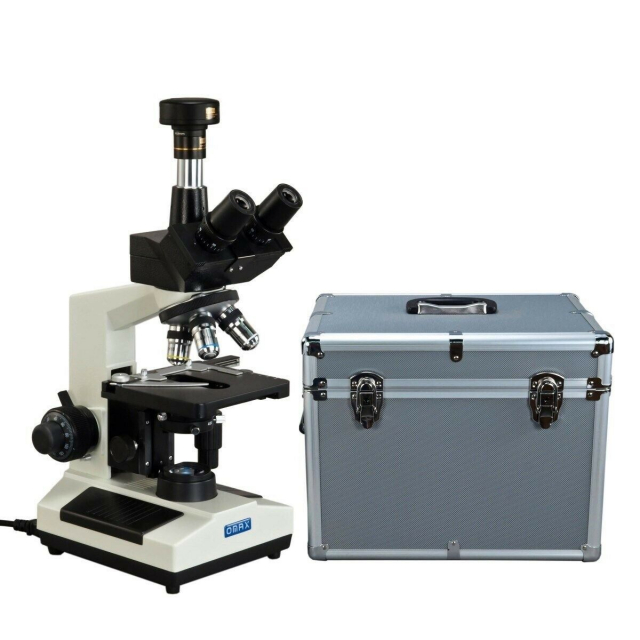

OMAX, M837ZL-PHD-A185A-C90U, 40X-2500X Phase Contrast Trinocular LED Compound Microscope with 9MP Camera and Aluminum Carrying Case

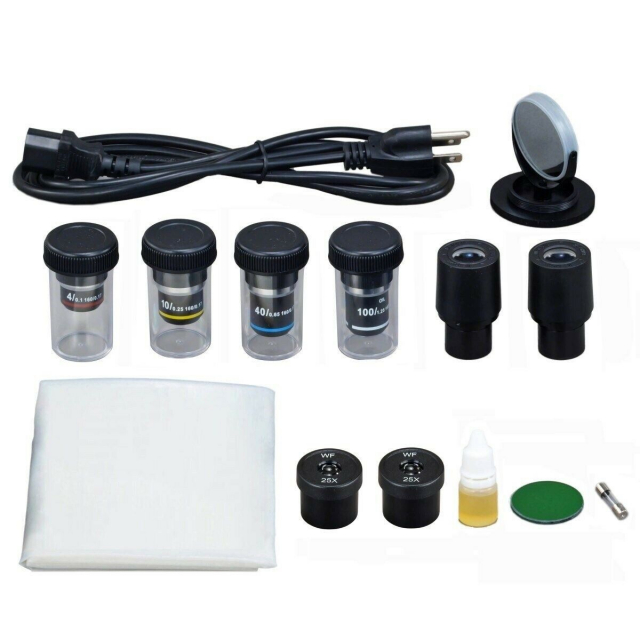

M837ZL-PHD-A185A-C90U Includes Only:

Microscope aluminum carrying case
Trinocular microscope head
Microscope stand
Photo tube
4 objectives: 4X, 10X, 40X, 100X
A pair of eyepieces WF10X/18
A pair of eyepieces WF25X
A bottle of immersion oil
Power cord (US and Canada standard)
Mirror for power outage
Dust cover
Color filter
Extra fuse
1 centering telescopic eyepiece
3 phase contrast objectives: achromatic PH10X, PH40X, PH100X
3 separated phase plates for 10X, 40X and 100X light passing
1 NA1.25 phase contrast condenser
1 green filter
9MP digital camera
0.5X reduction lens
1 CD including driver, software and user's instruction
0.01mm calibration slide (stage micrometer)
USB cable

The compound microscope features an optical system for simultaneously observing images through eyepieces and an adjustable trinocular port. It offers six levels of brightfield magnification from 40X to 2500X. The phase contrast microscope can improve the images of transparent and colorless objects, which are hard to see or invisible in an ordinary microscope. The 3488x2616 pixels USB digital imaging system that captures still microscope images and live video on computer. Software is compatible with Windows, Mac OS X and Linux operating systems. The Windows software can also be used to make measurements. This phase contrast compound microscopy is widely used clinical, biological research and schools, specially for observing live cells.

Features:

Phase contrast microscope for viewing live cell cycle
9MP (3488x2616 pixels) color digital camera with 0.5X reduction lens and 0.01mm calibration slide
Replaceable 3W LED transmitted light with adjustable intensity
Large double layer mechanical stage and coaxial oarse and fine focus knobs

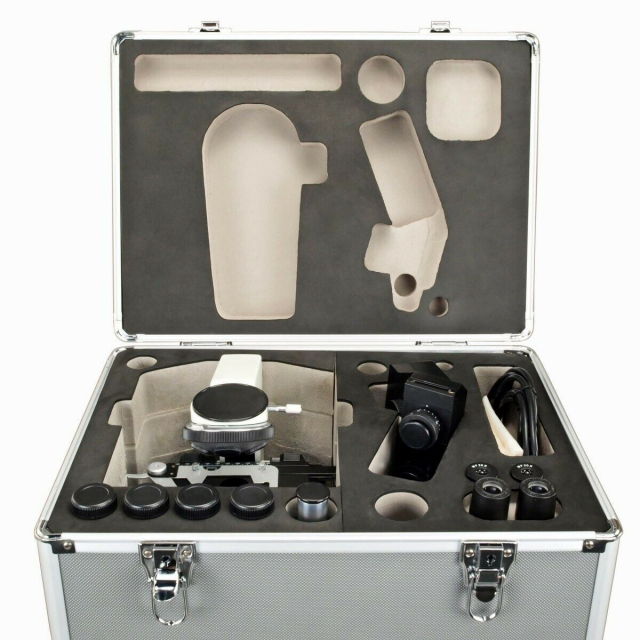

Sturdy versatile aluminum carrying case with protection foam
Black palm rest on the base
Metal mechanical components

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Microscope Type

Compound

Magnifying Type

Multi-Power

Magnification Power for Brightfield

40X-100X-250X-400X-1000X-2500X

Magnification Power for Phase Contrast

100X-250X-400X-1000X-2500X

Optics

Achromatic

Field View

Head Type

Trinocular

Objective Power

4X, 10X, 40X, 100X

Eyepiece Power

10X, 25X

Eyepieces

Widefield WF10X/18 and WF25X

Objectives

Achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil)

Phase Contrast Objectives

PH10X, PH40X (S), PH100X (S, Oil)

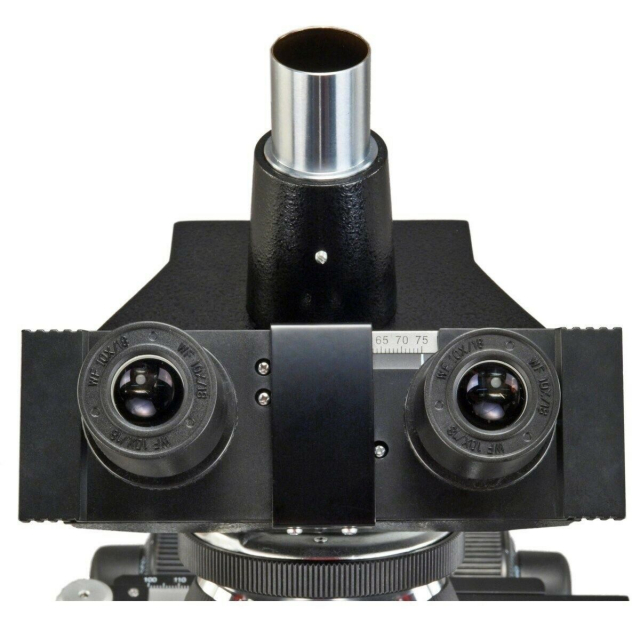

Viewing Head

45° Inclined 360° swiveling trinocular

Interpupillary Distance

Sliding adjustable 2-3/16" ~ 2-15/16" (55mm ~ 75mm)

Diopter

Adjustable on both eyepiece tubes

Nosepiece

Revolving quadruple

Stage

mechanical stain-resistant double layer
size: 5-1/2" x 5-1/2" (140mm x 140mm)
translation range: 3" x 2" (75mm x 50mm)

Photo tube adjustment range

5/8" (15mm)

Focus

coaxial coarse and fine focus knobs on both sides
rack and pinion adjustment
tension control

Condenser and Diaphragm

Abbe NA1.25 rack and pinion adjustment condenser with iris aperture diaphragm

Illumination

Transmitted (lower)
Replaceable 3W LED light
Variable intensity

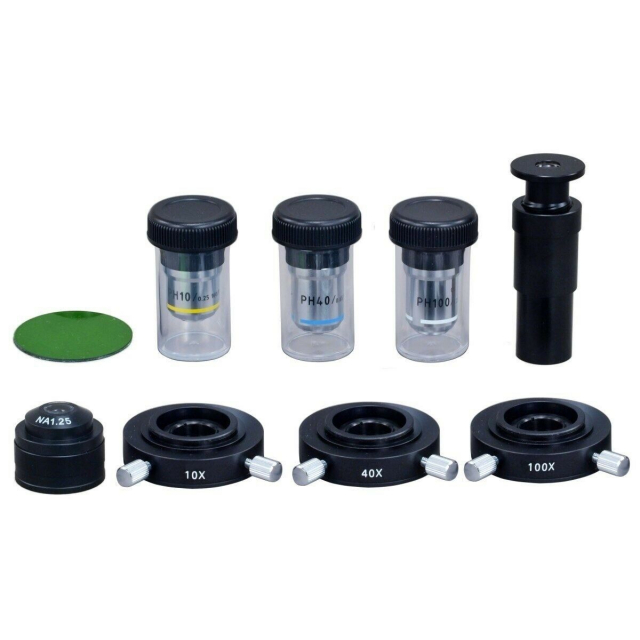

Phase Contrast Kit

NA1.25 condenser
Three separated condenser annular plates: 10X, 40X, 100X
Three phase contrast objectives: 10X, 40X, 100X
Each phase contrast condenser can be centered individually
37mm mounting size in diameter
Centering telescope: 23.2mm

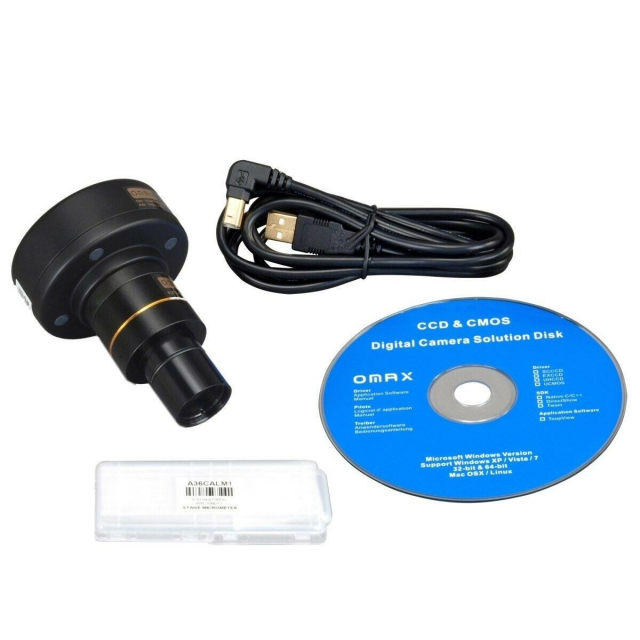

Digital Camera

True color 3488x2616 pixels (9M pixels)
0.5X reduction lens to get larger field of view
0.01 mm calibration slide: 1mm/100 division
Frame rate: 1.9fps at 3488x2616, 8fps at 1744x1308, 27fps at 872x654
Software compatible with Windows, Mac OS X and Linux operating systems
Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images

Power Supply

100V~240V 50/60Hz worldwide range (US and Canada power plug)

Dimension of Microscope

16" x 10-1/4" x 7-7/8" (41cm x 26cm x 20cm)

Dimension of Aluminum Case

18-1/8" 13-3/8" x 13" (46cm x 34cm x 33cm)

Shipping Weight

26 lbs (12 kg)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Microscope Type

Compound

Magnifying Type

Multi-Power

Magnification Power for Brightfield

40X-100X-250X-400X-1000X-2500X

Magnification Power for Phase Contrast

100X-250X-400X-1000X-2500X

Optics

Achromatic

Field View

Head Type

Trinocular

Objective Power

4X, 10X, 40X, 100X

Eyepiece Power

10X, 25X

Eyepieces

Widefield WF10X/18 and WF25X

Objectives

Achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil)

Phase Contrast Objectives

PH10X, PH40X (S), PH100X (S, Oil)

Viewing Head

45° Inclined 360° swiveling trinocular

Interpupillary Distance

Sliding adjustable 2-3/16" ~ 2-15/16" (55mm ~ 75mm)

Diopter

Adjustable on both eyepiece tubes

Nosepiece

Revolving quadruple

Stage

mechanical stain-resistant double layer
size: 5-1/2" x 5-1/2" (140mm x 140mm)
translation range: 3" x 2" (75mm x 50mm)

Photo tube adjustment range

5/8" (15mm)

Focus

coaxial coarse and fine focus knobs on both sides
rack and pinion adjustment
tension control

Condenser and Diaphragm

Abbe NA1.25 rack and pinion adjustment condenser with iris aperture diaphragm

Illumination

Transmitted (lower)
Replaceable 3W LED light
Variable intensity

Phase Contrast Kit

NA1.25 condenser
Three separated condenser annular plates: 10X, 40X, 100X
Three phase contrast objectives: 10X, 40X, 100X
Each phase contrast condenser can be centered individually
37mm mounting size in diameter
Centering telescope: 23.2mm

Digital Camera

True color 3488x2616 pixels (9M pixels)
0.5X reduction lens to get larger field of view
0.01 mm calibration slide: 1mm/100 division
Frame rate: 1.9fps at 3488x2616, 8fps at 1744x1308, 27fps at 872x654
Software compatible with Windows, Mac OS X and Linux operating systems
Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images

Power Supply

100V~240V 50/60Hz worldwide range (US and Canada power plug)

Dimension of Microscope

16" x 10-1/4" x 7-7/8" (41cm x 26cm x 20cm)

Dimension of Aluminum Case

18-1/8" 13-3/8" x 13" (46cm x 34cm x 33cm)

Shipping Weight

26 lbs (12 kg)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
