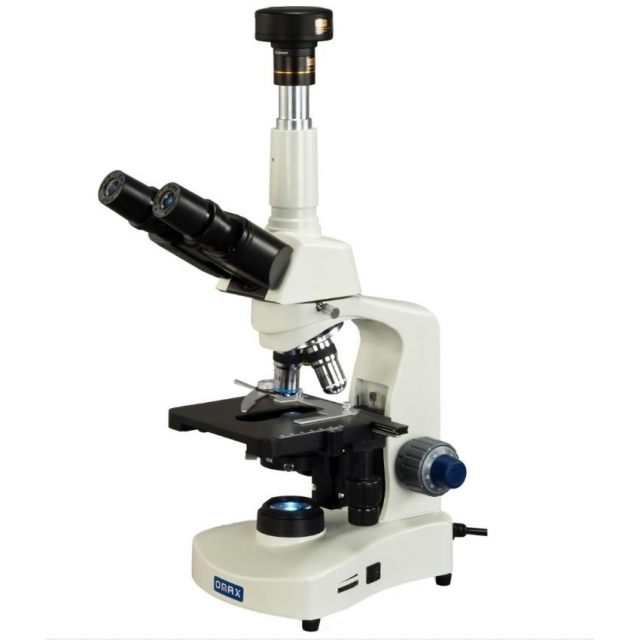

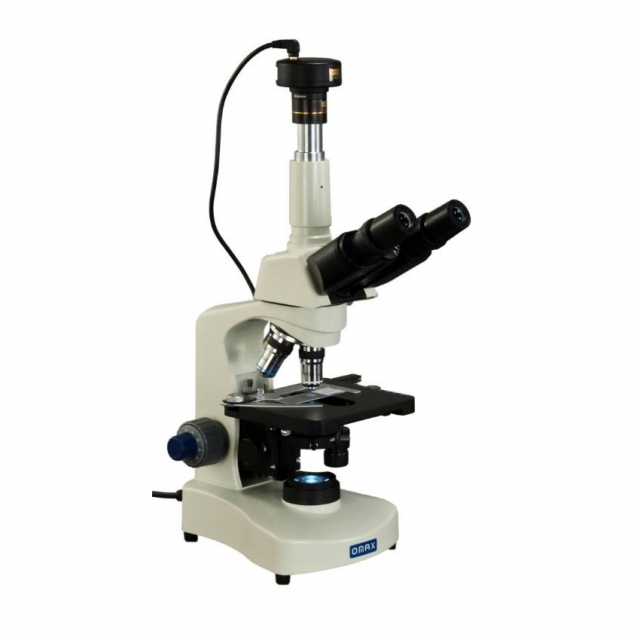

OMAX M8311Z-PHD-C13U Phase Contrast Trinocular Microscope with Camera

OMAX, M8311Z-PHD-C13U, 40X-2500X Phase Contrast LED Trinocular Biological Siedentopf Microscope with 1.3MP USB Camera

M8311Z-PHD-C13U Includes Only:

• One trinocular siedentopf microscope head
• One photo tube for digital cameras
• One microscope stand and base
• Four objectives: 4X, 10X, 40X, and 100X
• A pair of eyepieces WF10X
• A pair of eyepieces WF25X
• One bottle of immersion oil
• One power cord (US and Canada standard)
• One focus tension adjustment wrench
• One dust cover
• Color filter: green
• Extra fuse (in the fuse holder of the microscope)

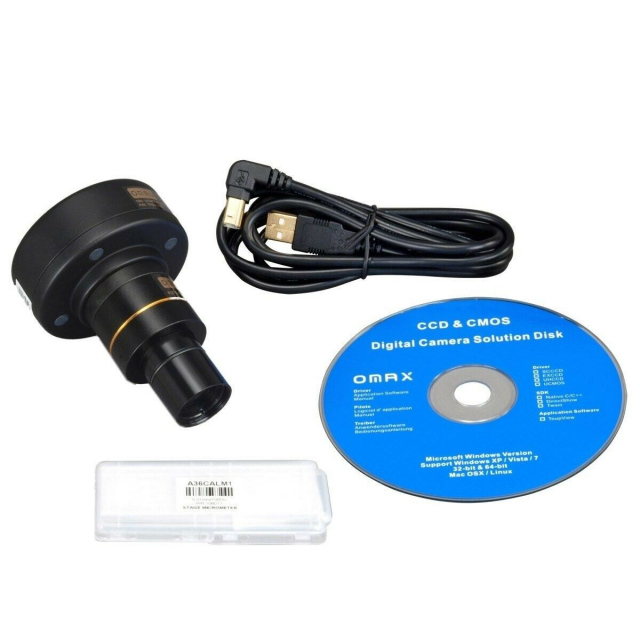

• Digital Camera
• 1 CD including driver, software and user's instruction
• USB cable

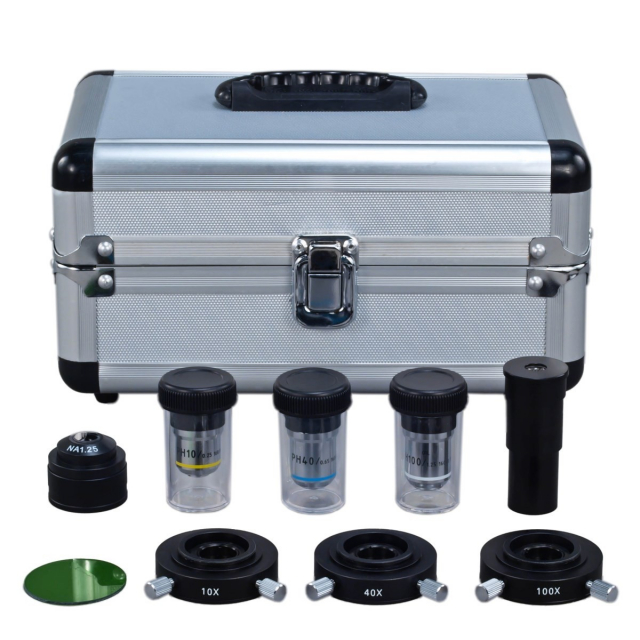

• Phase contrast kit:
  • 1 centering telescopic eyepiece
  • 3 phase contrast objectives: 10X, 40X, and 100X
  • 3 separated phase contrast plates for 10X, 40X, and 100X light passing
  • 1 NA1.25 phase contrast condenser
  • 1 green filter
  • 1 aluminum phase contrast storage box

The trinocular compound siedentopf LED microscope provides phase contrast microscope system and brightfield microscope system and USB imaging digital system. The compound microscope features an optical system for observing images through eyepieces and an adjustable trinocular port. It offers six levels of brightfield magnification from 40X to 2500X. The phase contrast microscope can improve the images of transparent and colorless objects, which are hard to see or invisible in an ordinary microscope. The 1280x1024 pixels USB digital imaging system that captures still microscope images and live video on computer. Software is compatible with Windows, Mac OS X and Linux operating systems. The Windows software can also be used to make measurements. This phase contrast compound microscopy is widely used clinical, biological, research and schools, specially for observing live cells.

Features:

• Phase contrast microscope system for viewing live cell cycle
• 1.3MP digital camera with 0.37X reduction lens and 0.01mm calibration slide

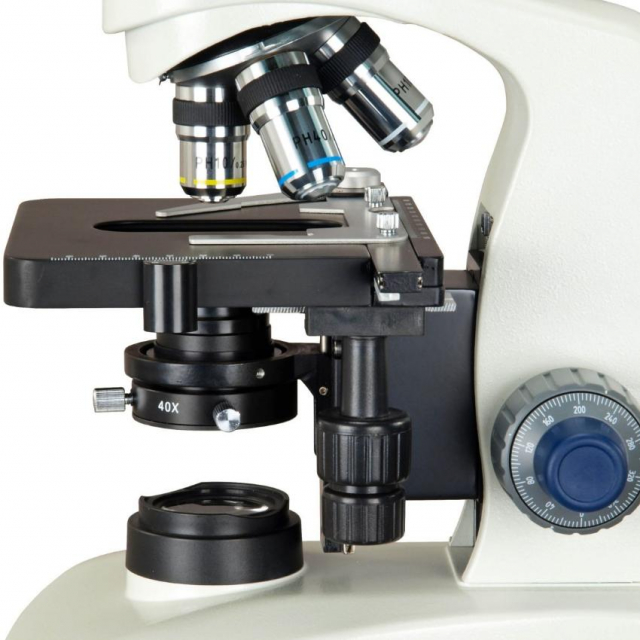

• One NA1.25 phase contrast condenser with three (10X, 40X, and 100X) condenser annular plates
• Large double layer mechanical stage and coaxial coarse and fine focus knobs
• Replaceable 3W LED transmitted light with adjustable intensity
• Solid metal base and stand
