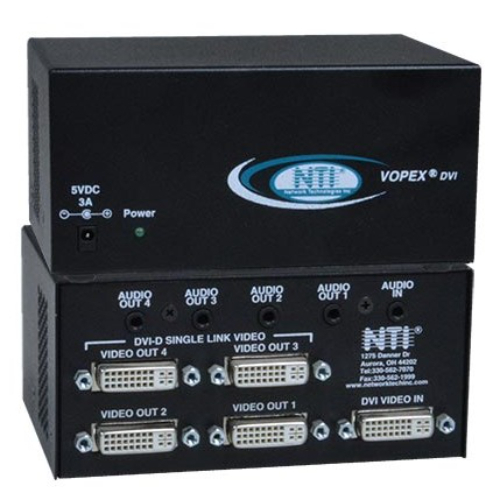

NTI, vopex-dvisa-4, Vopex 4-Port DVI Video Splitter with Audio

The Vopex DVI Video Splitter enables up to four single-link digital DVI displays to be driven by a single digital DVI source with no loss of signal.

Features:

Supports DVI interface for the crisp and clear video quality on flat-panel displays.
Supports HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
Passes HDMI audio and video signal through DVI-I port.
- Transmit audio and video over a single cable with the DVI-HD-xx-MM male DVI-D to male HDMI cable.
Available with optional stereo audio.
Compliant with DVI 1.0 and HDCP standards.
Supports the DDC2B protocol.
EDID learning for the support of any DVI display device.
Cascade multiple units for more numerous display configurations.
Ideal for digital signage, tradeshows, or classrooms where high-quality video on multiple monitors is needed.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Video Input

Compatible with a computer or HDTV video source (satellite receiver, DVD player, etc) with DVI output.
Multiplatform support: Windows 7/8/10, Windows Server 2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 10/11.
Female DVI-I connector.
Signal type: single link digital DVI
HDCP compliant

Video Output

Female DVI-I connectors.
Signal type: single link digital DVI.
Supports HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA) at 60Hz.
HDCP compliant

Optional Audio

3.5 mm stereo audio jacks.
Frequency response: 20 Hz to 20 kHz, +/-1 dB.
Total Harmonic Distortion (THD): 0.012%.
Stereo Crosstalk: -82 dB.
Input impedance: 10k Ohms.
CD quality audio output.
Requires powered speakers.

Power

100 to 240 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included.)

Environmental

Operating temperature: 32 to 122 °F (0 to 50 °C).
Storage temperature: -22 to 140 °F (-30 to 60 °C).
Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.

Cables

One 3-foot single link DVI-I male-to-male cable included.
Use DVI-HD-xx-MM to connect an HDMI source or display (not included).

Regulatory Approval

CE, RoHS
TAA compliant

Dimensions

5.14x3.47x2.44

Product Details

Video Input

Compatible with a computer or HDTV video source (satellite receiver, DVD player, etc) with DVI output.
Multiplatform support: Windows 7/8/10, Windows Server 2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 10/11.
Female DVI-I connector.
Signal type: single link digital DVI
HDCP compliant

Video Output

Female DVI-I connectors.
Signal type: single link digital DVI.
Supports HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA) at 60Hz.
HDCP compliant

Optional Audio

3.5 mm stereo audio jacks.
Frequency response: 20 Hz to 20 kHz, +/-1 dB.
Total Harmonic Distortion (THD): 0.012%.
Stereo Crosstalk: -82 dB.
Input impedance: 10k Ohms.
CD quality audio output.
Requires powered speakers.

Power

100 to 240 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included.)

Environmental

Operating temperature: 32 to 122 °F (0 to 50 °C).
Storage temperature: -22 to 140 °F (-30 to 60 °C).
Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.

Cables

One 3-foot single link DVI-I male-to-male cable included.
Use DVI-HD-xx-MM to connect an HDMI source or display (not included).

Regulatory Approval

CE, RoHS
TAA compliant

Dimensions

5.14x3.47x2.44
