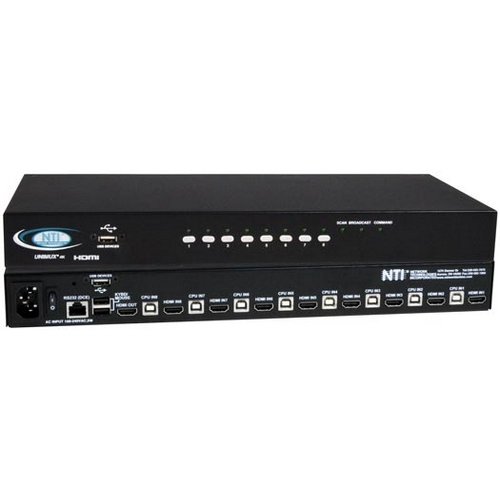

Buy NTI unimux-hd4k18gb-8, 4K 18Gbps HDMI USB KVM Switch 8-port

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Type:: Type: 8-Port

unimux-hd4k18gb-8 Includes Only:

Switch
Rackmount kit
Cable management tray

Features:

Supports Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 at24/30/60Hz RGB/YUV 4:4:4, HDTV resolutions to 1080p at120Hz, and up to 1920x1200 (WUXGA).
HDMI features supported:
- HDMI 2.0
- Up to 12-bit Deep Color on input and 8-bit on output.
- Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, Dolby Digital+, Dolby Atmos, LPCM 2/5.1/7.1CH, DTS 5.1, and DTS:X
- RGB, YUV 4:4:4, YUV 4:2:2, and YUV 4:2:0
- Bandwidth up to 600 MHz (18Gbps)
- 3D (1080p at60Hz)
- HDR
HDCP 2.2/1.4 compliant.
Features NTI's patented true autoboot USB switching - all attached computers can be booted simultaneously.
Compatible with USB computers (PC and MAC) with HDMI outputs.
Control the switch through the front panel buttons, keyboard commands, OSD, or RS232.
Two transparent USB 2.0 ports, in addition to keyboard and mouse ports, for connecting USB devices such as printers, game controllers, USB flash drives, touch screen monitors, whiteboards, etc.
- Supports high-speed (480 Mbps), full speed (12 Mbps), or low speed (1.5 Mbps) USB devices.
High quality steel construction.
Flash upgradeable.

The UNIMUX™ 4K 18Gbps HDMI USB KVM Switch allows a user to control up to 32 HDMI 2.0 Ultra-HD 4Kx2K 60Hz 4:4:4 USB computers with one USB keyboard, USB mouse, and 4K HDMI monitor. Dedicated internal microprocessors emulate keyboard and mouse presence to each attached CPU 100% of the time so all computers boot error-free.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Type

4-Port

Hosts

Female HDMI-A connectors.
Female USB Type B connectors.
Supports USB-enabled computers (PC and MAC) with HDMI video.
Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Linux, FreeBSD, and MAC OS 10/11/12/13.
Compliant with HDMI 2.0 and HDCP 2.2/1.4 standards.

Monitor

Supports Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 at24/30/60Hz RGB/YUV 4:4:4, HDTV resolutions to 1080p at120Hz, and up to 1920x1200 (WUXGA).
One female HDMI-A connector.
Compliant with HDMI 2.0 and HDCP 2.2/1.4 standards.

Devices

Two female USB 1.1 Type A connectors for keyboard and mouse.
- Supports full-speed (12 Mbps) or low-speed (1.5 Mbps) USB keyboard and mouse.
- Keyboard and mouse are hot-pluggable.
- Supports MAC extra keys.
Two transparent female USB 2.0 Type A connectors for additional USB devices.
- Supports high-speed (480 Mbps), full-speed (12 Mbps) and low-speed (1.5 Mbps) USB devices including, but not limited to, touchscreens monitors, CAC card readers, printers, scanners, and thumb drives.

Power

100 to 240 VAC at 50 or 60 Hz via IEC connector.
14W
The combined current consumption of the connected USB devices cannot exceed 1.0A.

Environmental

Operating temperature: 32 to 104°F (0 to 40°C).
Storage temperature: -22 to 140°F (-30 to 60°C).
Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.

MTBF

68,907 Hours

Regulatory Approval

CE, RoHS
TAA compliant

Compatible NTI Products

Combine NTI's extenders, switches, splitters and cables for complex applications.

Ultra Low-Cost VGA + Audio to HDMI Converter Cable (VGAA-HD-ULC)
- Use to connect VGA PC to switch.
- VGAA-HD-ULC is not hot-pluggable – PC will need to be restarted.

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Type

4-Port

Hosts

Female HDMI-A connectors.
Female USB Type B connectors.
Supports USB-enabled computers (PC and MAC) with HDMI video.
Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Linux, FreeBSD, and MAC OS 10/11/12/13.
Compliant with HDMI 2.0 and HDCP 2.2/1.4 standards.

Monitor

Supports Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 at24/30/60Hz RGB/YUV 4:4:4, HDTV resolutions to 1080p at120Hz, and up to 1920x1200 (WUXGA).
One female HDMI-A connector.
Compliant with HDMI 2.0 and HDCP 2.2/1.4 standards.

Devices

Two female USB 1.1 Type A connectors for keyboard and mouse.
- Supports full-speed (12 Mbps) or low-speed (1.5 Mbps) USB keyboard and mouse.
- Keyboard and mouse are hot-pluggable.
- Supports MAC extra keys.
Two transparent female USB 2.0 Type A connectors for additional USB devices.
- Supports high-speed (480 Mbps), full-speed (12 Mbps) and low-speed (1.5 Mbps) USB devices including, but not limited to, touchscreens monitors, CAC card readers, printers, scanners, and thumb drives.

Power

100 to 240 VAC at 50 or 60 Hz via IEC connector.
14W
The combined current consumption of the connected USB devices cannot exceed 1.0A.

Environmental

Operating temperature: 32 to 104°F (0 to 40°C).
Storage temperature: -22 to 140°F (-30 to 60°C).
Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.

MTBF

68,907 Hours

Regulatory Approval

CE, RoHS
TAA compliant

Compatible NTI Products

Combine NTI's extenders, switches, splitters and cables for complex applications.

Ultra Low-Cost VGA + Audio to HDMI Converter Cable (VGAA-HD-ULC)
- Use to connect VGA PC to switch.
- VGAA-HD-ULC is not hot-pluggable – PC will need to be restarted.

Note

Note: Please read description carefully. Do not base your order on the picture presented.
