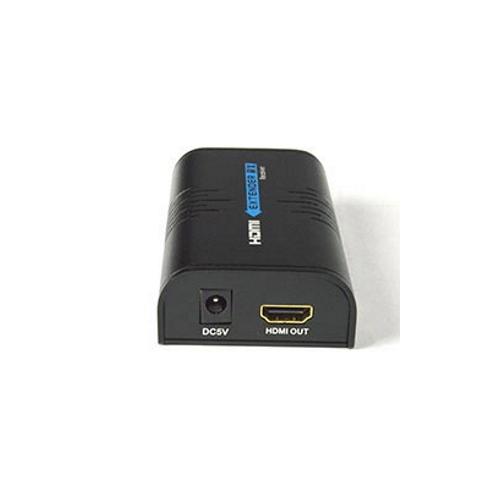

NTI st-iphd-r-lceu HDMI IP Extender, Euro CEE 7/16

Low-Cost HDMI Over IP Extender via CATx to 330 feet, Europlug CEE 7/16

Features:

• Supports HDTV resolutions to 1080p.
• Ideal solution for digital signage applications.
• Broadcast real-time HDMI video and audio signals to multiple display locations with a managed or unmanaged (also known as non-managed) network switch.
• Transmits an HDMI signal over one CAT5e/6 cable.
• Plug-and-Play installation allows Extenders to find the transmitters automatically on the same subnet. (Network configuration may be required for managed network switch.)
• Web interface for changing IP addresses, firmware updates and resetting units to factory default settings.
• Easily expandable. Add remote units as you add monitors.
• Inexpensive CAT5e/6 cable replaces bulky video cables.
• Supports 10/100/1000 Ethernet connection.
• Built in default EDID table.
• HDCP compliant.
• Support for multiple transmitters requires a managed network switch with VLAN/IGMP support. Standard LAN switches can only support one transmitter.
• For a point-to-many connection, a standalone network with an unmanaged network switch, hub, or router can be used instead of a managed network switch.
• Uses M-JPEG technology to process image compression on a fixed bandwidth.
• Local and remote units must be in the same LAN. The units do not support WAN connections.

The XTENDEX Low-Cost HDMI Over Gigabit IP Extender multicasts digital video and audio signals to one or more Extenders up to 330 feet away over a 1000Base-T Gigabit Network connected with CAT5e/6 cable.

Each Low-Cost HDMI Over Gigabit IP Extender consists of a local unit that connects to an HDMI source, and a remote unit that connects to an HDMI display. The local and remote units can be connected together for a Point-to-Point connection via CATx or a Point-to-Many connection via a network switch. Support for multiple transmitters requires a managed network switch.

For more information, please see Data Sheet
