Network Technologies, st-fousbvars-lc12v, VGA USB KVM Extender via One LC Singlemode/Multimode Fiber Optic Cable

st-fousbvars-lc12v Includes Only:

One transmitter
One receiver
One 4 ft (1.2 m) male-to-male USB Type A cable
Two power supplies
Mounting brackets

Features:

Signal transmission via single-strand LC fiber optic cable - no RF interference.
- Using singlemode 9-micron cable, extend to 12.4 miles (20 kilometers).
- Using multimode 50-micron or 62.5-micron cable, extend to 1,968 feet (600 meters).
Supports one local and two remote VGA monitors.
Supports computer resolutions to 1920x1080.
Two USB ports for keyboard and mouse
- Keyboard and mouse are hot-pluggable.
Supports stereo audio speakers and microphone.
Plug and play functionality - no software needed.
Low RFI/EMI for sensitive applications.
Supports full-duplex RS232 up to 57600 baud.
Built-in default EDID table.
Supports the DDC2B protocol.
Cables can be installed in conduit prior to extender installation.
Integrated mounting brackets for easy surface/wall mounting.

The XTENDEX® VGA USB KVM Extender via Fiber Optic Cable provides remote KVM (USB keyboard, USB mouse and VGA monitors) access to a USB computer up to 12.4 miles (20 kilometers) away from a computer using a single LC singlemode fiber optic strand and 1,968 feet (600 meters) using multimode fiber optic cable. Each extender consists of a transmitter that connects to a computer and a local display via the VGA loop output; and a receiver that connects to two VGA monitors, USB keyboard, USB mouse, 3.5mm stereo audio speakers and microphone, and RS232.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

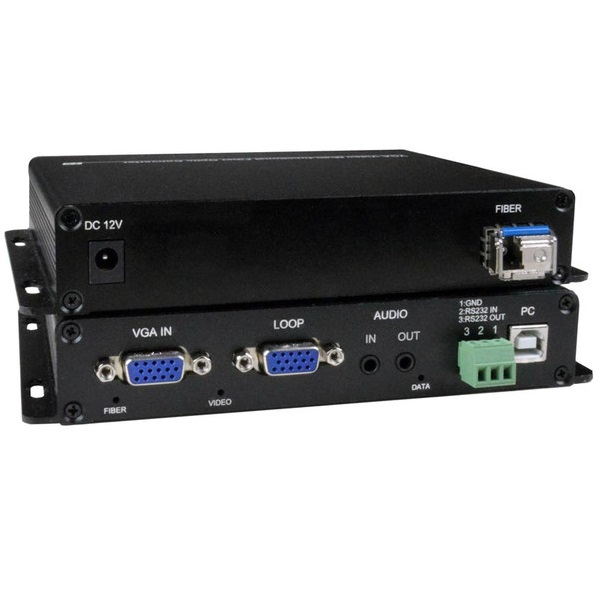

Local Unit

Supports a PC, SUN, or MAC with VGA video.
Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Solaris, Linux, FreeBSD, and MAC OS 10/11.
Supports resolutions to 1920x1080.
One female 15-pin HD connector for computer connection.
One female 15-pin HD connector for local VGA monitor.
Once female USB Type B connector.
Two 3.5 mm stereo audio jacks (audio in/out).
3-pin screw terminal for RS232.
One simplex LC fiber optic port for sending/receiving video/audio, USB, and RS232 signals.

Remote Unit

Two female 15-pin HD connectors for VGA displays.
Two female USB Type A connectors for connecting USB keyboard and mouse.
Two 3.5 mm stereo audio jacks (audio in/out).
3-pin screw terminal for RS232.
One simplex LC fiber optic port for sending/receiving video/audio, USB, and RS232 signals.
Supports resolutions to 1920x1080.

Power

Input: 100 to 240 VAC at 50 or 60Hz via AC adapter.
Output: 12VDC, 1A
Power consumption: 9.12W max.

Environmental

Operating temperature: -4 to 158°F (-20 to 70°C).
Operating and storage relative humidity: 5 to 90% non-condensing RH.

Dimensions

WxDxH (in): 6.59x5.02x1.12(167x128x28 mm)

Regulatory Approvals

CE, FCC, RoHS

Max Distance

12.4 miles (20 km) over 9µm singlemode LC fiber optic cable.
1,968 feet (600 meters) over 50µm or 62.5µm multimode LC fiber optic cable.

Cables

Interface cables between the source/display and the transmitter/receiver are required for proper operation.
Use VEXT-xx-MM VGA Male-to-Male Cable without Ferrites to connect to a VGA source or display up to 25 feet.
Use VEXT-F-xx-MM VGA Male-to-Male Cable with Ferrites to connect to a VGA source or display.
Use SA-xx-MM male to male 3.5mm stereo audio cables to connect speakers.
Use USB2-AB-x-5T male USB Type A to male USB Type B cable to connect source.
Use a simplex LC singlemode 9-micron fiber optic cable to extend the receiver from the transmitter up to 12.4 miles (20 km).
Use a simplex multimode LC 50-micron or 62.5-micron fiber optic cable to extend the receiver from the transmitter up to 1,968 feet (600 meters).

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Local Unit

Supports a PC, SUN, or MAC with VGA video.
Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Solaris, Linux, FreeBSD, and MAC OS 10/11.
Supports resolutions to 1920x1080.
One female 15-pin HD connector for computer connection.
One female 15-pin HD connector for local VGA monitor.
Once female USB Type B connector.
Two 3.5 mm stereo audio jacks (audio in/out).
3-pin screw terminal for RS232.
One simplex LC fiber optic port for sending/receiving video/audio, USB, and RS232 signals.

Remote Unit

Two female 15-pin HD connectors for VGA displays.
Two female USB Type A connectors for connecting USB keyboard and mouse.
Two 3.5 mm stereo audio jacks (audio in/out).
3-pin screw terminal for RS232.
One simplex LC fiber optic port for sending/receiving video/audio, USB, and RS232 signals.
Supports resolutions to 1920x1080.

Power

Input: 100 to 240 VAC at 50 or 60Hz via AC adapter.
Output: 12VDC, 1A
Power consumption: 9.12W max.

Environmental

Operating temperature: -4 to 158°F (-20 to 70°C).
Operating and storage relative humidity: 5 to 90% non-condensing RH.

Dimensions

WxDxH (in): 6.59x5.02x1.12(167x128x28 mm)

Regulatory Approvals

CE, FCC, RoHS

Max Distance

12.4 miles (20 km) over 9µm singlemode LC fiber optic cable.
1,968 feet (600 meters) over 50µm or 62.5µm multimode LC fiber optic cable.

Cables

Interface cables between the source/display and the transmitter/receiver are required for proper operation.
Use VEXT-xx-MM VGA Male-to-Male Cable without Ferrites to connect to a VGA source or display up to 25 feet.
Use VEXT-F-xx-MM VGA Male-to-Male Cable with Ferrites to connect to a VGA source or display.
Use SA-xx-MM male to male 3.5mm stereo audio cables to connect speakers.
Use USB2-AB-x-5T male USB Type A to male USB Type B cable to connect source.
Use a simplex LC singlemode 9-micron fiber optic cable to extend the receiver from the transmitter up to 12.4 miles (20 km).
Use a simplex multimode LC 50-micron or 62.5-micron fiber optic cable to extend the receiver from the transmitter up to 1,968 feet (600 meters).
