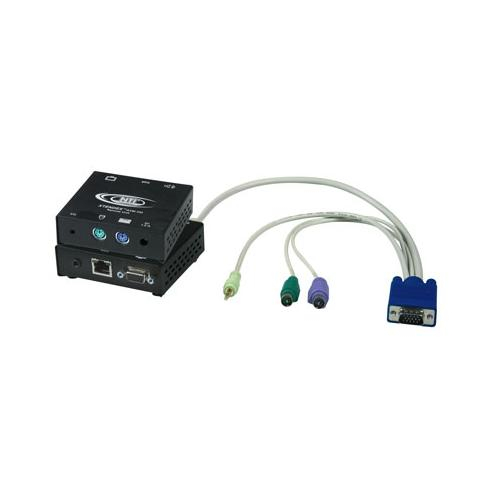

Network Technologies, st-c5kvma-300, VGA PS/2 KVM Extender with Audio via CATx to 300 feet

Features:

Sharpest and clearest VGA quality over CAT5 of any manufacturer.
Supports two users: one local and one remote.
Local unit provides local KVM access.
Supports resolutions to 1920x1440.
Allows local and remote access to network servers.
Built-in surge protection.
Keep-alive keyboard/mouse emulation for flawless operation.
Use in-house CAT5/5e/6/6a wiring to locate a keyboard, monitor and mouse remotely.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Dimensions

WxDxH: 3.5x3.1x1.2 in (89x79x30 mm)
Weight: 1.2 lbs (0.54 kg)

Local Unit

Host Connection

Supports a PC, SUN Fire V20z, or NTI Switch.
Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Male 15-pin HD/male 6-pin miniDIN connectors for PC or NTI KVM switch.

Local Access

Crisp and clear 1920x1440 video resolution.
Female 15-pin HD connector.
Female 6-pin miniDIN connectors.
Compatible with Japanese keyboard layout.
Supports PS/2 mice including the IBM ScrollPoint mouse.
NTI recommends using identical keyboards and mice at local and remote units.

Remote Unit

Supports resolutions up to 1920x1440; refer to the resolution chart below for resolutions at different lengths.
Female 15-pin HD connector.
Female 6-pin miniDIN connectors.
Compatible with Japanese keyboard layout.
Supports PS/2 mice including the IBM ScrollPoint mouse.

Video Quality Adjustment

Video quality adjustment for different lengths of CAT5/5e/6/6a cable is done manually.

Operating Temperature

32 to 113deg F (0 to 45deg C)

Storage temperature

-20 to 140deg F (-30 to 60deg C)

Operating and Storage Relative Humidity

17 to 90% non-condensing RH

Regulatory Approvals

CE, RoHS
TAA compliant

Power

Local and remote unit: 110 or 220 VAC at 50 or 60 Hz via AC adapter.
Power Consumption: 10 W (each - local and remote unit).

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Dimensions

WxDxH: 3.5x3.1x1.2 in (89x79x30 mm)
Weight: 1.2 lbs (0.54 kg)

Local Unit

Host Connection

Supports a PC, SUN Fire V20z, or NTI Switch.
Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Male 15-pin HD/male 6-pin miniDIN connectors for PC or NTI KVM switch.

Local Access

Crisp and clear 1920x1440 video resolution.
Female 15-pin HD connector.
Female 6-pin miniDIN connectors.
Compatible with Japanese keyboard layout.
Supports PS/2 mice including the IBM ScrollPoint mouse.
NTI recommends using identical keyboards and mice at local and remote units.

Remote Unit

Supports resolutions up to 1920x1440; refer to the resolution chart below for resolutions at different lengths.
Female 15-pin HD connector.
Female 6-pin miniDIN connectors.
Compatible with Japanese keyboard layout.
Supports PS/2 mice including the IBM ScrollPoint mouse.

Video Quality Adjustment

Video quality adjustment for different lengths of CAT5/5e/6/6a cable is done manually.

Operating Temperature

32 to 113deg F (0 to 45deg C)

Storage temperature

-20 to 140deg F (-30 to 60deg C)

Operating and Storage Relative Humidity

17 to 90% non-condensing RH

Regulatory Approvals

CE, RoHS
TAA compliant

Power

Local and remote unit: 110 or 220 VAC at 50 or 60 Hz via AC adapter.
Power Consumption: 10 W (each - local and remote unit).

Note

Note: Please read description carefully. Do not base your order on the picture presented.
