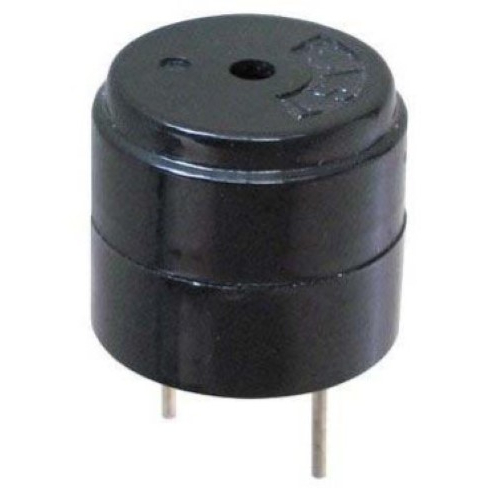

NTI e-beep2-800 Miniature Piezo Buzzer, 85 dB, 800 ft

Size: 800 ft
  • Brand NTI
  • Part # e-beep2-800
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

    Options and Related Products

    Size:
    Size: 800 ft

    NTI, e-beep2-800, Miniature Piezo Buzzer, 85 dB, 800 ft

    E-BEEP2-x is a general-purpose piezo buzzer to provide an audible indication of alert when configured to respond to variations in a sensor's readings. Operating on 12VDC, the E-BEEP2-x can be controlled and powered by an E-2D, E-5D, or E-16D Enterprise Environment Monitoring System (SYSTEM). With an optional 12V DC Power Supply, the E-BEEP2 can also be controlled by an E-MINI-LXO. A 22AWG 2-wire cable is pre-soldered to the leads.

    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    MountingPCB Mount- 7.62 mm centers (without pre-attached leads)
    Operating ModeContinuous sound at 4KHz
    Operating Voltage1-18 Vdc
    Typical Operating Current20 mA at 12 Vdc
    Typical Sound Pressure at 10cm85 dB(A)
    TerminationSolder terminals (long lead is positive)- 2-wire cable pre-attached (white wire is positive)
    Operating Temperature-20 ~ 60 C
    Storage Temperature-20 ~ 60 C
    Available 2-Wire cable lengths800 feet
    Dimensions (W x H)0.61 x 0.55 in (15.5 x 14 mm)
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    MountingPCB Mount- 7.62 mm centers (without pre-attached leads)
    Operating ModeContinuous sound at 4KHz
    Operating Voltage1-18 Vdc
    Typical Operating Current20 mA at 12 Vdc
    Typical Sound Pressure at 10cm85 dB(A)
    TerminationSolder terminals (long lead is positive)- 2-wire cable pre-attached (white wire is positive)
    Operating Temperature-20 ~ 60 C
    Storage Temperature-20 ~ 60 C
    Available 2-Wire cable lengths800 feet
    Dimensions (W x H)0.61 x 0.55 in (15.5 x 14 mm)
    Note

    Note: Please read description carefully. Do not base your order on the picture presented.
