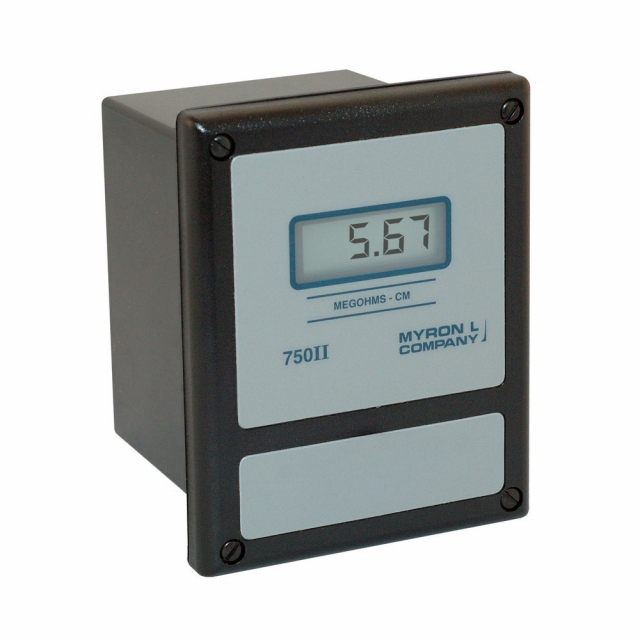

Myron L 754II-11-35BL-PC 750 Series II Digital Monitor Only 3.5" LCD

Myron L, 754II-11-35BL-PC, 750 Series II Resistivity-Digital Monitor Only 20 Ω with 3½ Digit Backlit LCD with Power Cord 115 VAC

Features:

• Range 0-20 Megaohms
• 3½ Digit Backlit LCD
• Automatic temperature
• Compensation to 25°C
• Isolated 0-10 VDC
• Recorder Output standard
• IP65/NEMA 4X water-resistant and corrosion-proof enclosure
• Built-in electronic calibration
• Single setpoint/alarm
• Adjustable setpoint hysteresis
• Solid State 24 VDC Output
• 10-amp relay operates on choice of increasing or decreasing reading
• LEDs show "above/below" Alarm/Control status
• Push-to-test setpoint check
• Internal setpoint discourages
• Unauthorized adjustment
• Selectable 115/230 VAC
• Reliable, easily installed sensor
• Power Cord 115 VAC (8 ft./2,44 meters with plug and strain relief)

Applications:

• Deionization (Dl) and distillation ultrapure water treatment systems
• Electronics
• Pharmaceuticals
• Laboratories
• Food Processing
• Plating
• Power Plants
• Boiler Condensate
• Process Control

Benefits:

• Affordable
• Ease of Operation
• Low Maintenance
• Ensures Product Quality

The unique circuitry of 750 Series II Resistivity Monitor/controllers guarantees accurate and reliable measurements. Drift-free performance is assured by "field proven" electronics, including automatic DC offset compensation and highly accurate drive voltage. Since Temperature Compensation is at the heart of accurate water measurement, all Myron L Monitor/controllers feature a highly refined and precise TC circuit. This feature perfectly matches the water temperature coefficient as it changes. All models are corrected to 25°C. The TC may be disabled to conform with USP requirements. Built-in electronic calibration allows for fast quality checks. A push-to-test button makes setpoint checks easy, while the internal alarm set discourages unauthorized adjustments. Standard on all controller models is a heavy-duty, 10-amp output relay, operatingon either increasing or decreasing readings. Bright green/red LEDs indicate readings above or below setpoint. All 750 Series II models feature an IP65/ NEMA 4X water-resistant and corrosionproof rated enclosure. Compact in size at 152 x 122 mm/6 x 4.8 in., they are suitable for panel, bench or surface mounting.

For more information, please see Data Sheet and Manual
