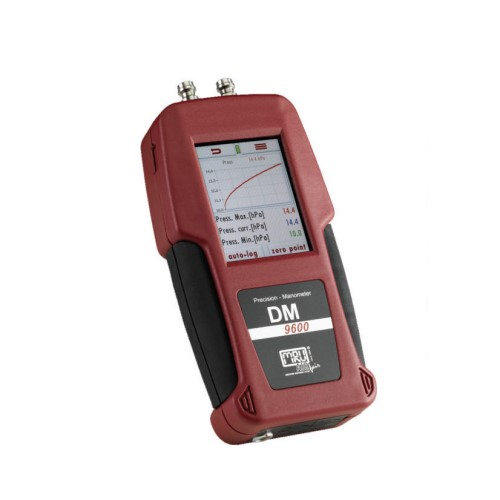

MRU Instruments 912224 DM 9600 CHP Engine Manometer, Pressure Monitor

  • Brand MRU Instruments
  • Part # 912224
  • Model # DM 9600 CHP
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

    MRU Instruments, 912224, DM 9600 CHP Engine Manometer, Pressure Monitor, 10-Bar 150 PSI

    912224 Includes Only:

    • DM9600 Manometer, with Robust Transport Case with Foam Insert
    • External Pressure Transmitter + 10 bar (150PSI) for oil and water Measurements
    • Quick Coupling Set (2 pcs of self-lock quick coupler for intake of 6/8mm hose)

    Features:

    • Engine Inlet Pressure
    • Boost Pressure
    • Inter-Cooler differential Pressure
    • Oil and water Pressure
    • Temperature Measurement
    • Gas leak detector in the inlet area
    • Large 2.8" Color, touch screen
    • AUX input for Leak detection or external Pressure probes
    • Automatic zeroing for long-term stability
    • Two (2) K type thermocouple sockets
    • Simultaneous display of Pressure and Temperature readings
    • 1, 000 points and 500 sites data memory
    • Micro SD card slot
    • USB charging and data download
    • Hands free operation via magnetic back case
    • 20-hour Lithium battery

    Applications:

    • Portable engine Pressure manometer, engine Pressure testing, trouble-shooting, reporting, biogas, landfill, CHP, manometers, simple
    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Optional Accessories
    Reviews
    ParameterRange / Accuracy
    Engine Inlet Pressure40 to 80 in H2O / ± 0.4 in H2O or 1 % reading
    Boost Pressure14.5 to 58 psi / ± 0.4 in H2O or 1 % reading
    Intercooler Differential Pressure80 to 200 in H2O / ± 0.4 in H2O or 1 % reading
    Exhaust Back Pressure8 to 80 in H2O / ± 0.4 in H2O or 1 % reading
    Carter Pressure0 to 80 in H2O / ± 0.4 in H2O or 1 % reading
    Internal Pressure (ext. Transmitter)14.5 to 130 psi / ± 8 in H2O or 1 % reading
    Temperature32°F to 1830°F / ± 2 °F or 1 % reading
    Gas leakage5 - 20,000 ppm / NA
    Measuring UnitsPressure (in H2O, Pa, hPa, mbar, bar, psi, mm Hg); Temp C/F; Flow fpm, m/s, CFM, m3/sec; HC ppm to % LEL
    InterfacesMini-USB, Micro-SD
    RechargeableBattery Lithium-Ion
    Dimensions (W x H x D)3.23" x 6.65" x 1.42" (82 x 169 x 36 mm)
    Weightapprox. 14 ounces (400g)
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    ParameterRange / Accuracy
    Engine Inlet Pressure40 to 80 in H2O / ± 0.4 in H2O or 1 % reading
    Boost Pressure14.5 to 58 psi / ± 0.4 in H2O or 1 % reading
    Intercooler Differential Pressure80 to 200 in H2O / ± 0.4 in H2O or 1 % reading
    Exhaust Back Pressure8 to 80 in H2O / ± 0.4 in H2O or 1 % reading
    Carter Pressure0 to 80 in H2O / ± 0.4 in H2O or 1 % reading
    Internal Pressure (ext. Transmitter)14.5 to 130 psi / ± 8 in H2O or 1 % reading
    Temperature32°F to 1830°F / ± 2 °F or 1 % reading
    Gas leakage5 - 20,000 ppm / NA
    Measuring UnitsPressure (in H2O, Pa, hPa, mbar, bar, psi, mm Hg); Temp C/F; Flow fpm, m/s, CFM, m3/sec; HC ppm to % LEL
    InterfacesMini-USB, Micro-SD
    RechargeableBattery Lithium-Ion
    Dimensions (W x H x D)3.23" x 6.65" x 1.42" (82 x 169 x 36 mm)
    Weightapprox. 14 ounces (400g)
