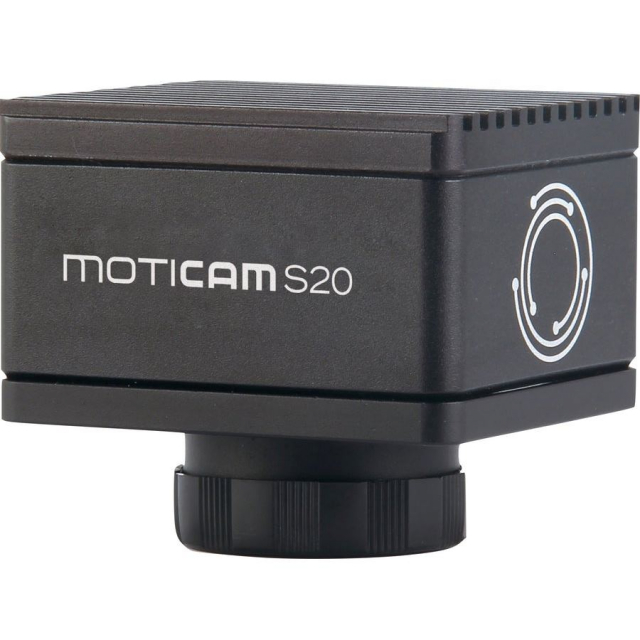

Buy Motic 1100600101401, S-Line Moticam S20 Camera

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Features:

Super Fast Frame rates with USB3.1 interface
Easy to replace your old imaging device
Compact size and lightweight
Two-color LED status indicator

The Moticam S20 is the highest resolution model for back-illuminated sensor technology. With speedy data transfer (excellent frame rates up to 50 fps) creates an optimal imaging environment and makes capturing microscopic images easy. Create your perfect images for a professional database.

Dimensions:

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Subject to the use of all the optional accessories

Sensor Type

sCMOS

Sensor Size

Imaging Area

15.86 mm

Capture Resolution Info

20MP

Live display mode through USB

5472 x 3648 at 18 fps
2736 x 1824 at 50 fps

Pixel size

2.4 µm x 2.4 µm

Scan mode

Progressive

Shutter mode

Rolling shutter

Data transfer

USB 3.1

Exposure time

15 µsec to 2 sec

Operating temperature

From -10 to +60 Degrees Celsius noncondensing

Sensitivity

461mV at 1/30 sec

Support device

TWAIN, SDK, and DirectShow Driver

Supported OS

Windows 7 / 8 / 10, MAC OSX, Linux, or higher

Minimum computer requirements

2GHz dual-core - RAM memory 2GB - Video memory min. 512 MB

Lens mount

C-Mount

Software

Motic Images Plus 3.0 for Windows, OSX, and Linux

Functions

Still, image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.

Power supply

5V (from USB Port)

Package includes

CS ring adaptor, USB 3.1 cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 for Windows / OSX / Linux

Other features

Frames per second under optimal lighting conditions and in compliance with computer technical requirements.

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Subject to the use of all the optional accessories

Sensor Type

sCMOS

Sensor Size

Imaging Area

15.86 mm

Capture Resolution Info

20MP

Live display mode through USB

5472 x 3648 at 18 fps
2736 x 1824 at 50 fps

Pixel size

2.4 µm x 2.4 µm

Scan mode

Progressive

Shutter mode

Rolling shutter

Data transfer

USB 3.1

Exposure time

15 µsec to 2 sec

Operating temperature

From -10 to +60 Degrees Celsius noncondensing

Sensitivity

461mV at 1/30 sec

Support device

TWAIN, SDK, and DirectShow Driver

Supported OS

Windows 7 / 8 / 10, MAC OSX, Linux, or higher

Minimum computer requirements

2GHz dual-core - RAM memory 2GB - Video memory min. 512 MB

Lens mount

C-Mount

Software

Motic Images Plus 3.0 for Windows, OSX, and Linux

Functions

Still, image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.

Power supply

5V (from USB Port)

Package includes

CS ring adaptor, USB 3.1 cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 for Windows / OSX / Linux

Other features

Frames per second under optimal lighting conditions and in compliance with computer technical requirements.

Note

Note: Please read description carefully. Do not base your order on the picture presented.
