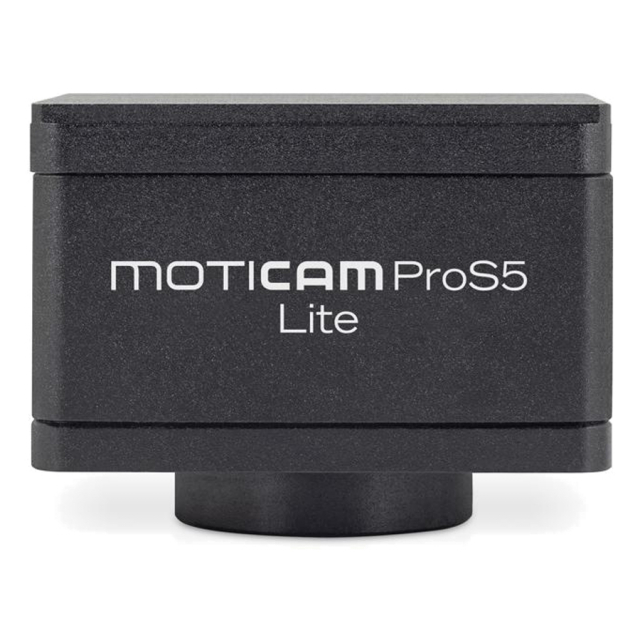

Motic 1100600101101 Moticam Pro S5 Lite Microscopy Camera, 5MP

Exposure Time: 14 Micro-Sec To 2 Sec
  • Brand Motic
  • Part # 1100600101101
  • Model # Moticam Pro S5 Lite
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

    Options and Related Products

    Exposure Time:
    Exposure Time: 14 Micro-Sec To 2 Sec

    1100600101101 Includes Only:

    • Microscopy Camera
    • CS ring adaptor
    • USB 3.1 cable
    • Motic 4-dot calibration slide
    • Motic Images Plus 3.0 for Windows/OSX/Linux

    Moticam Pro S5 Lite with 5MP resolution delivers best conditions to document large samples from all biological/medical fields, at the same time showing high low-light sensitivity. The global shutter readout helps to accelerate data transfer moving/fast phenomena from biology and industrial production.

    Functions: Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.

    For more information see Data Sheet

    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    Sensor TypesCMOS
    Sensor Size2/3"
    Imaging Area11.1mm (Diagonal)
    Capture Resolution Info5MP
    Live display mode through USB2448x2048, 1224x1024 pixels
    Pixel size3.45x3.45µm
    Scan modeProgressive
    Shutter modeGlobal shutter
    Data transferUSB 3.1
    Max. frames per second (fps)2448x2048 at 37.5fps 1224x1024 at 88.4fps
    Exposure time14 µsec to 2 sec
    Operating temperatureFrom -10 to +60 Degrees Celsius non condensing
    Max. signal to noise ratio0.1mV at1/30 sec
    Sensitivity1146mV(G) at 1/30 sec
    Support deviceTWAIN, SDK and DirectShow Driver
    Supported OSWindows 7/8/10, MAC OSX, Linux or higher
    Minimum computer requirements2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB
    Lens mountC-Mount
    SoftwareMotic Images Plus 3.0 for Windows, OSX and Linux
    Power supply5V (From USB Port)
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    Sensor TypesCMOS
    Sensor Size2/3"
    Imaging Area11.1mm (Diagonal)
    Capture Resolution Info5MP
    Live display mode through USB2448x2048, 1224x1024 pixels
    Pixel size3.45x3.45µm
    Scan modeProgressive
    Shutter modeGlobal shutter
    Data transferUSB 3.1
    Max. frames per second (fps)2448x2048 at 37.5fps 1224x1024 at 88.4fps
    Exposure time14 µsec to 2 sec
    Operating temperatureFrom -10 to +60 Degrees Celsius non condensing
    Max. signal to noise ratio0.1mV at1/30 sec
    Sensitivity1146mV(G) at 1/30 sec
    Support deviceTWAIN, SDK and DirectShow Driver
    Supported OSWindows 7/8/10, MAC OSX, Linux or higher
    Minimum computer requirements2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB
    Lens mountC-Mount
    SoftwareMotic Images Plus 3.0 for Windows, OSX and Linux
    Power supply5V (From USB Port)
