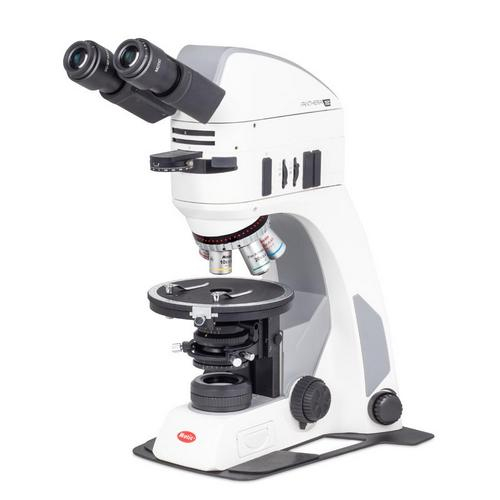

Motic 1100104600261 Panthera TEC POL Epi Binocular Microscope, LED

Type: Binocular, Lights: LED
  • Brand Motic
  • Part # 1100104600261
  • Model # Panthera TEC POL Epi
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

    Options and Related Products

    Type:
    Type: Binocular
    Lights:
    Lights: LED

    1100104600261 Includes Only:

    • Binocular Microscope
    • Dust cover
    • Power cord
    • Allen key
    • Blue filter
    • Halogen bulb
    • LED module
    • Adjustable key for nosepiece
    • Interference color chart
    • Screws for metal extension support

    Features:

    • Binocular head Siedentopf type 25° inclined
    • Widefield high eyepoint eyepiece N-WF PL10X/22mm with diopter adjustment on both eyepieces, cross hair on one eyepiece
    • Intermediate Tube with Rotatable Analyzer and Bertrand Lens
    • Reversed quintuple nosepiece
    • CCIS UC Plan Strain-free Objectives: 5X/0.13 (WD 17.3mm), 10X/0.25 (WD 16.3mm), 20X/0.40 (WD 7.3mm), UC 40X/0.65/S (WD 0.6mm)
    • 360° Circular Rotating Stage
    • Achromat Swing-out Condenser, N.A.0.9/0.13 (strain-free)
    • Rotatable Polarizer
    • Empty Insertion Plate
    • 3W LED Epi-illumination with slots for analyzer and polarizer
    • Universal Power Supply 100-240V
    • Koehler illumination quartz halogen 6V/30W with intensity control
    • Universal Power Supply 100-240V

    It is a trinocular microscope with a set of UC Plan Achromatic objectives, working with UC eyepieces of 20mm Field of View. An interchangeable 30W Halogen/3W LED light source is part of a full Koehler setup in transmitted light. Incident light is provided by a compact illuminator with 3W LED light source. The Motic LightTracer system with memory function, a built-in low-energy mode and an LED feedback indicator helps to optimize workflow.

    For more information see Data Sheet

    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Optional Accessories
    Reviews
    Observation tubeBinocular head, Siedentopf type
    Optical systemColour Corrected Infinity Optical System (CCIS)
    CondenserFocusable and centerable Achromat Swing-out Abbe condenser N.A. 0.90/0.13 (strain-free) with rotatable polarizer
    DiaphragmIris diaphragm
    Diopter adjustmentOn both eyepieces, +/- 4 diopter
    EyepiecesWidefield UC-WF10X/20mm with diopter adjustment
    Filter holderOn top of the illuminator with fixing cap
    Fine focus precision2µm
    Focus mechanismCoaxial coarse and fine focusing system with tension adjustment
    Focusing stroke25mm
    Illumination featuresMotic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator
    Illumination interchangeabilityHalogen/LED and LED color temperature interchangeability
    Incident illuminationLED 3W with integrated field and aperture diaphragms
    Inclination25° inclined
    Interpupillary distance48-75mm
    NosepieceReversed quintuple, coded with single centering holes
    Objective classificationCCIS LD Plan Achromatic & UC Plan (strain-free), DIN
    Objective mounting threadW 4/5"x1/36" (RMS standard)
    Objectives5X/0.13 (WD 17.3mm), 10X/0.25 (WD 16.3mm), 20X/0.40 (WD 7.3mm), UC 40X/0.65/S (WD 0.6mm)
    StageCircular rotating 360°, lockable
    Stage sizeDiameter 160mm
    Stand typeUpright
    Standard contrast techniqueBrightfield, polarizing
    Transmitted illuminationKoehler LED 3W & Quartz halogen 6V/30W with intensity control
    Travel range X&Y1° increments, 0,1° vernier scale
    Upper limit stopUpper limit stop preset but adjustable
    TransformerInternal
    Power supply110-240V (CE)
    Dimensions LxWxH410x300x450mm
    Weight Net10.4kg
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    Observation tubeBinocular head, Siedentopf type
    Optical systemColour Corrected Infinity Optical System (CCIS)
    CondenserFocusable and centerable Achromat Swing-out Abbe condenser N.A. 0.90/0.13 (strain-free) with rotatable polarizer
    DiaphragmIris diaphragm
    Diopter adjustmentOn both eyepieces, +/- 4 diopter
    EyepiecesWidefield UC-WF10X/20mm with diopter adjustment
    Filter holderOn top of the illuminator with fixing cap
    Fine focus precision2µm
    Focus mechanismCoaxial coarse and fine focusing system with tension adjustment
    Focusing stroke25mm
    Illumination featuresMotic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator
    Illumination interchangeabilityHalogen/LED and LED color temperature interchangeability
    Incident illuminationLED 3W with integrated field and aperture diaphragms
    Inclination25° inclined
    Interpupillary distance48-75mm
    NosepieceReversed quintuple, coded with single centering holes
    Objective classificationCCIS LD Plan Achromatic & UC Plan (strain-free), DIN
    Objective mounting threadW 4/5"x1/36" (RMS standard)
    Objectives5X/0.13 (WD 17.3mm), 10X/0.25 (WD 16.3mm), 20X/0.40 (WD 7.3mm), UC 40X/0.65/S (WD 0.6mm)
    StageCircular rotating 360°, lockable
    Stage sizeDiameter 160mm
    Stand typeUpright
    Standard contrast techniqueBrightfield, polarizing
    Transmitted illuminationKoehler LED 3W & Quartz halogen 6V/30W with intensity control
    Travel range X&Y1° increments, 0,1° vernier scale
    Upper limit stopUpper limit stop preset but adjustable
    TransformerInternal
    Power supply110-240V (CE)
    Dimensions LxWxH410x300x450mm
    Weight Net10.4kg
