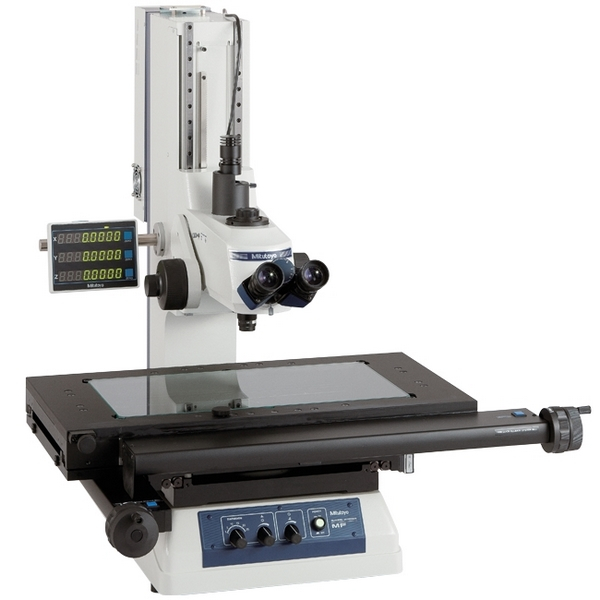

Mitutoyo 176-865-10 MF-A4020D2 Axis Measuring Microscope

Mitutoyo, 176-865-10, MF-A4020D High Accuracy 2 Axis Measuring Microscope

Features:

• Ultra-long working distance practically eliminates any risk of collision with a workpiece even when surface asperities are present
• Observation with a crisp and high-resolution erect image and a wide field of view
• ML series, high-NA objectives that are specially designed for the MF series (long working distance type)
• Illumination unit (reflected/transmitted) selectable from a high-intensity LED or halogen bulb (selection required)
• Variable aperture diaphragm (reflected/ transmitted) allows observation measurement while suppressing light diffraction
• Variety of standardized stages with travel ranges up to 400x200mm
• Quick-release mechanism useful for moving the stage quickly when measuring workpieces that are large in size or quantity
• Coarse/fine feed handles equipped as standard on both sides allow precise focus and observation measurement regardless of handedness
• Sliding nosepiece (factory installed option) allows up to two objectives to be mounted
• Dedicated camera port for seamless integration of Mitutoyo Vision unit or third party c-mount camera

The MF measuring microscopes provide the best-in-class accuracy. The MF series microscopes use telecentric objectives that reduce the magnification error due to slight variations in the working distance.
