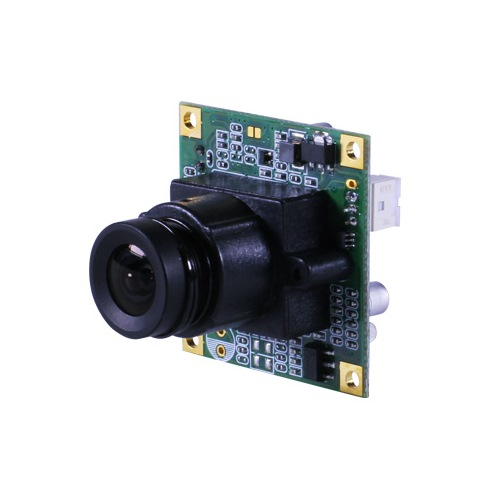

Marshall Electronics, V-1217-PCB-3.7, Black and White Camera, 420 TV Line CCD DSP

Features:

1/3" CCD Black & White
420 Tv Lines
Auto Gain Control

V-1217-PCB-3.7 is a special 1/3 CCD sensor single board B&W camera designed for a variety of OEM, industrial process, test and measurement, law enforcement, military, medical, scientific and security applications, RoHS compliant.

Featuring compact 32mm X 32mm board size, Auto Gain Control, Electronic Shutter, low 12 VDC 1.2W power input, light 17g weight enables one off to tens of thousands OEM product and application potential.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

TV System	EIA
Image Sensor Device	1/3" interline transfer CCD
Image Sensor Area	4.8mm x 3.6mm
Horizontal Frequency	15.734KHz
Vertical Frequency	59.9Hz
Total Pixels	542(H) x 492(V)
Scanning System	525 lines, 60 fields/sec EIA
Resolution	420 TV lines horizontal
Minimum Illumination	0.5 lux at F2.0
S/N Ratio	> 48 dB
Video Signal Output	1.0Vp-p composite video signal at 75 ohm load
Gamma Correction	0.45
Gain Control	Auto Gain Control
Power Supply	12V DC ±10% 1.2W
Lens & View Angle	3.7 mm F2.0 / 92°
Operating Temperature	-20° TO +50° C
Operational Humidity	Within 85 % RH
Dimensions / Weight	32(W) x 32(H) x 30(D) mm / 17g

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

TV System	EIA
Image Sensor Device	1/3" interline transfer CCD
Image Sensor Area	4.8mm x 3.6mm
Horizontal Frequency	15.734KHz
Vertical Frequency	59.9Hz
Total Pixels	542(H) x 492(V)
Scanning System	525 lines, 60 fields/sec EIA
Resolution	420 TV lines horizontal
Minimum Illumination	0.5 lux at F2.0
S/N Ratio	> 48 dB
Video Signal Output	1.0Vp-p composite video signal at 75 ohm load
Gamma Correction	0.45
Gain Control	Auto Gain Control
Power Supply	12V DC ±10% 1.2W
Lens & View Angle	3.7 mm F2.0 / 92°
Operating Temperature	-20° TO +50° C
Operational Humidity	Within 85 % RH
Dimensions / Weight	32(W) x 32(H) x 30(D) mm / 17g
