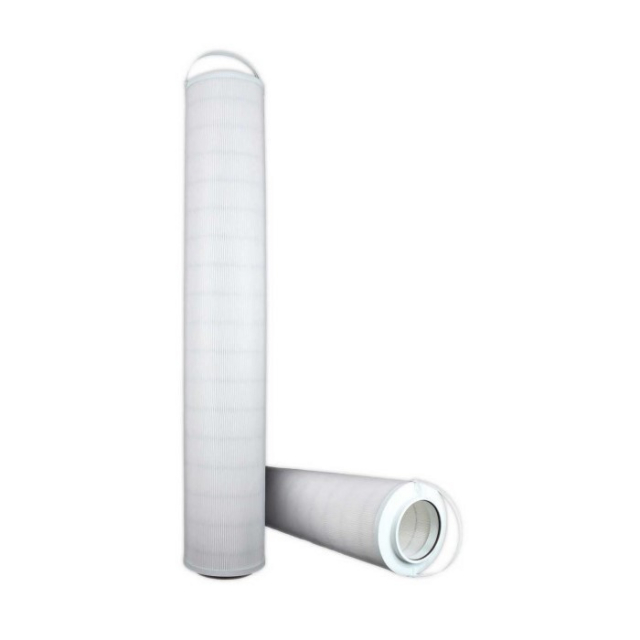

Main Filter, BE83143912AV, MF0058324 Hydraulic Filter, Capacity (GR) 117

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Type	Hydraulic
Element Type	Coreless
Product Media	Glass
Height Inch	36.500
OD Top Inch	5.980
ID Top Inch	3.780
OD Bottom Inch	5.980
ID Bottom Inch	3.880
Collapse Pressure (PSI)	145
Operating Temp Min (F)	-13
Operating Temp Max (F)	248
Capacity (GR)	117
Filter Area (SQ IN)	8816
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/9.9
Beta Ratio 2	1000/12.4
Micron 1	10
Weight (lbs)	8.053

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Type	Hydraulic
Element Type	Coreless
Product Media	Glass
Height Inch	36.500
OD Top Inch	5.980
ID Top Inch	3.780
OD Bottom Inch	5.980
ID Bottom Inch	3.880
Collapse Pressure (PSI)	145
Operating Temp Min (F)	-13
Operating Temp Max (F)	248
Capacity (GR)	117
Filter Area (SQ IN)	8816
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/9.9
Beta Ratio 2	1000/12.4
Micron 1	10
Weight (lbs)	8.053

Note: Please read description carefully. Do not base your order on the picture presented.
