Options and Related Products

Interchange for:: Interchange for: Hydac/Hycon-0990D005BH4HCV

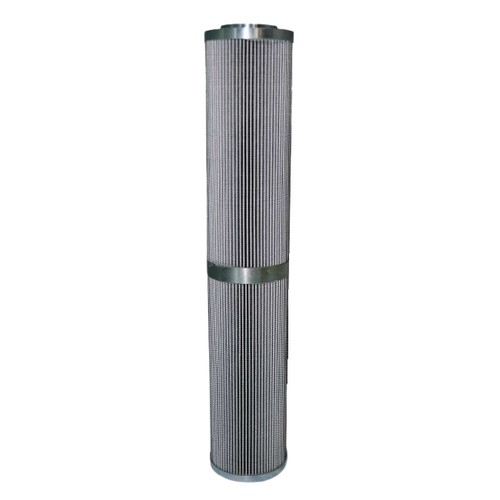

Main Filter, 0990D005BH4HCV, MF0060503 Interchange Hydraulic Pressure Line Filter, Glass, 5 Micron, 66g Capacity, 708 sq.in. Filter Area

Features:

Direct Interchange for Hydac/Hycon-0990D005BH4HCV
Manufactured following strict OE standards to work like the original component
Engineered using the latest technology to ensure the product lasts longer in service
Features a factory-like fit for hassle-free installation
Made of high-quality components for durability, reliability, and performance

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Part Type	Hydraulic
Element Type	Pressure Line
Product Media	Glass
Height	19.170
OD Top	3.560
ID Top	1.900
OD Bottom	3.560
Collapse Pressure (PSI)	3045
Operating Temp Min (F)	-13
Operating Temp Max (F)	248
Capacity (GR)	66
Filter Area (SQ IN)	708
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/5.4
Beta Ratio 2	1000/7.7
Micron 1	5
Weight (LBS)	6.578

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Part Type	Hydraulic
Element Type	Pressure Line
Product Media	Glass
Height	19.170
OD Top	3.560
ID Top	1.900
OD Bottom	3.560
Collapse Pressure (PSI)	3045
Operating Temp Min (F)	-13
Operating Temp Max (F)	248
Capacity (GR)	66
Filter Area (SQ IN)	708
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/5.4
Beta Ratio 2	1000/7.7
Micron 1	5
Weight (LBS)	6.578

Note: Please read description carefully. Do not base your order on the picture presented.
