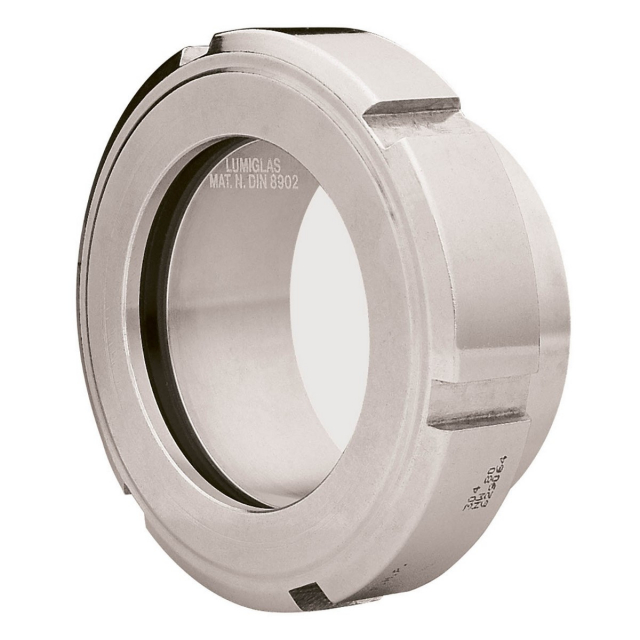

LJ Star MV-125-SA1A1NN MV Series 125 mm Weld Neck Sightglass Fitting

LJ Star, MV-125-SA1A1NN, MV Series 125 mm Weld Neck Sightglass Fitting with Silicone Seal

Features:

• Sightglass fittings are specific to DIN 11851 (dairy standard fittings) with see-through circular glasses.
• Threaded nozzles have weld necks.
• Butt-weld sight glass fitting with a threaded cover nut

Applications:

• Sightport for viewing process vessels, silos, mixers, separators, pipelines, and others usually closed containers.
• Particularly suitable for pharmaceutics, food and beverage processing, e.g. breweries, dairies, etc.

This sight glass unit can be combined with the Lumiglas luminaires for use in non-hazardous areas. This sight glass offers easy cleaning and a clear field of visibility and can come equipped with an optional light source. Suitable for use in the chemical, pharmaceutical, and food industries.

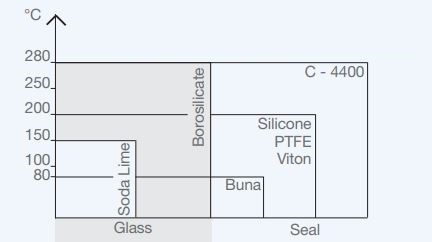

Diagram for individual temperature rating depending on material selection:

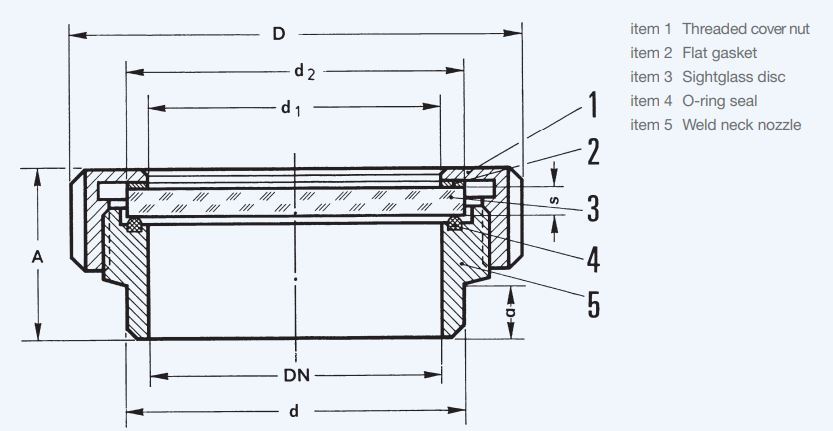

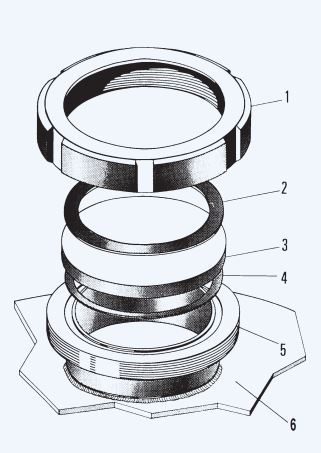

Parts & materials:

1. Threaded cover nut: Stainless steel type 304
2. Cushion gasket: Non-Asbestos
3. Sightglass disc: Soda lime glass, tempered for max temp 150°C
4. D-ring seal: silicone (max. 250°C)
5. Weld neck nozzle Stainless steel type: 316 L
6. Vessel wall
