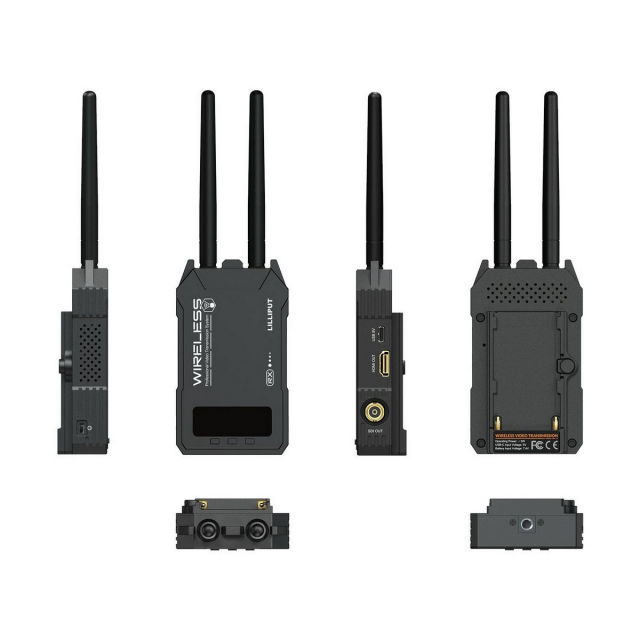

Buy Lilliput WS500, Wireless Video Transmission 1 TX to 2 RX 1600 ft

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

WS500 Includes Only:

Features:

presentation

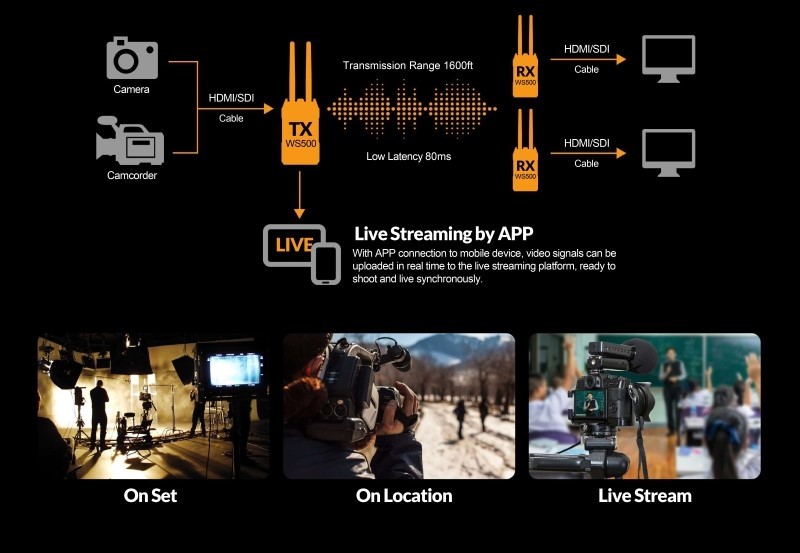

live streaming by APP

low latency transmission range

professional app for video monitoring

design

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

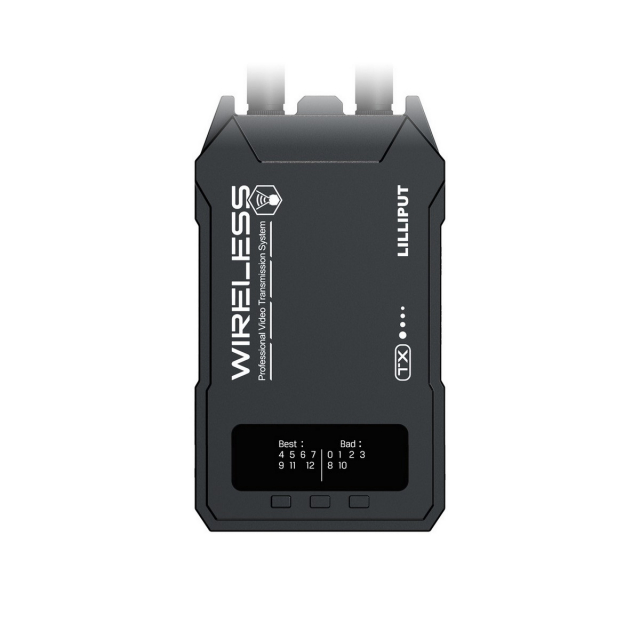

Screen	1.3' OLED
HDMI In	1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/60, 720p 50/60
3G-SDI In	1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/60, 720p 50/60
HDMI Out	1080p 23.98/24/25/29.97/30/50/59.94/60
3G-SDI Out	1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/60, 720p 50/60
Audio	48kHz 24-bit
Latency	80ms (From transmitter to receiver, no interference)
Frequency	5GHz
Transmission Power	17dBm
Transmission Distance	1600ft (No interference)
Input Voltage	DC 5V
Power Consumption	≤3.5W
Operating Temperature	0°C-50°C
Storage Temperature	−20°C-60°C
Dimension (L×W×D)	113mm × 65mm × 29.2mm
Weight	200g each

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Screen	1.3' OLED
HDMI In	1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/60, 720p 50/60
3G-SDI In	1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/60, 720p 50/60
HDMI Out	1080p 23.98/24/25/29.97/30/50/59.94/60
3G-SDI Out	1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/60, 720p 50/60
Audio	48kHz 24-bit
Latency	80ms (From transmitter to receiver, no interference)
Frequency	5GHz
Transmission Power	17dBm
Transmission Distance	1600ft (No interference)
Input Voltage	DC 5V
Power Consumption	≤3.5W
Operating Temperature	0°C-50°C
Storage Temperature	−20°C-60°C
Dimension (L×W×D)	113mm × 65mm × 29.2mm
Weight	200g each

Note: Please read description carefully. Do not base your order on the picture presented.
