Lilliput, Q17-ABBP, Pro 12G-SDI Broadcast Production Monitor 17.3" Anton Bauer Mount

Q17-ABBP Includes Only:

presentation

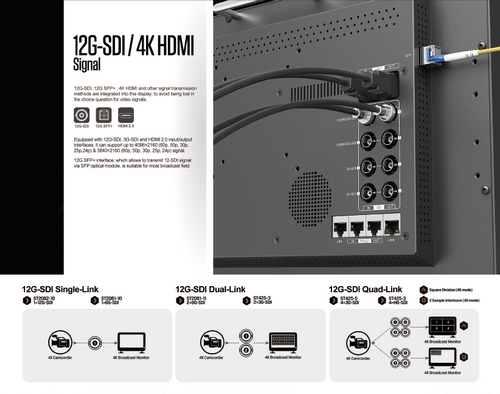

12g-sdi signal

color calibration

audio vector

configuration

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Panel	17.3"
Physical Resolution	1920x1080
Aspect Ratio	16:09
Brightness	300cd/m2
Contrast	1200:1
Viewing Angle	176°7 176°(H/V)
HDR	ST2084 300/1000/10000/HLG
Anamorphic de-squeeze	2x, 1.5x, 1.33x
Supported Log formats	Sony SLog / SLog2 / SLog3 or User...
Look up table (LUT) support	3D LUT (.cube format)
Technology	Calibration to Rec.709 with optional calibration unit
Video Input SDI	2x12G, 2x3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
Video Input SFP	1x12G SFP+(Fiber module for optional)
Video input HDMI	1xHDMI 2.0
Video Loop Output SDI	2x12G, 2x3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
Video Loop OutputHDMI	1xHDMI 2.0
Supported Formats SDI	2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60...
Supported Formats SFP	2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60...
Supported Formats HDMI	2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60...
Audio In/Out (48kHz PCM Audio) SDI	16ch 48kHz 24-bit
Audio In/Out (48kHz PCM Audio) HDMI	8ch 24-bit
Audio In/Out (48kHz PCM Audio) Ear Jack	3.5mm- 2ch 48kHz 24-bit
Audio In/Out (48kHz PCM Audio) Built-in Speakers	2
RS422	In/out
GPI	1
LAN	1
Input Voltage	DC 12-24V
Power Consumption	s26.5W (15V)
Compatible batteries	Anton Bauer Mount
Input voltage (battery)	14.8V nominal
Operating Temperature	0°C-50°C
Storage Temperature	-20°C~60°C
Dimension(LWD)	434mm x 263mm x 54mm
Weight	3.2kg

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Panel	17.3"
Physical Resolution	1920x1080
Aspect Ratio	16:09
Brightness	300cd/m2
Contrast	1200:1
Viewing Angle	176°7 176°(H/V)
HDR	ST2084 300/1000/10000/HLG
Anamorphic de-squeeze	2x, 1.5x, 1.33x
Supported Log formats	Sony SLog / SLog2 / SLog3 or User...
Look up table (LUT) support	3D LUT (.cube format)
Technology	Calibration to Rec.709 with optional calibration unit
Video Input SDI	2x12G, 2x3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
Video Input SFP	1x12G SFP+(Fiber module for optional)
Video input HDMI	1xHDMI 2.0
Video Loop Output SDI	2x12G, 2x3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
Video Loop OutputHDMI	1xHDMI 2.0
Supported Formats SDI	2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60...
Supported Formats SFP	2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60...
Supported Formats HDMI	2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60...
Audio In/Out (48kHz PCM Audio) SDI	16ch 48kHz 24-bit
Audio In/Out (48kHz PCM Audio) HDMI	8ch 24-bit
Audio In/Out (48kHz PCM Audio) Ear Jack	3.5mm- 2ch 48kHz 24-bit
Audio In/Out (48kHz PCM Audio) Built-in Speakers	2
RS422	In/out
GPI	1
LAN	1
Input Voltage	DC 12-24V
Power Consumption	s26.5W (15V)
Compatible batteries	Anton Bauer Mount
Input voltage (battery)	14.8V nominal
Operating Temperature	0°C-50°C
Storage Temperature	-20°C~60°C
Dimension(LWD)	434mm x 263mm x 54mm
Weight	3.2kg

Note: Please read description carefully. Do not base your order on the picture presented.
