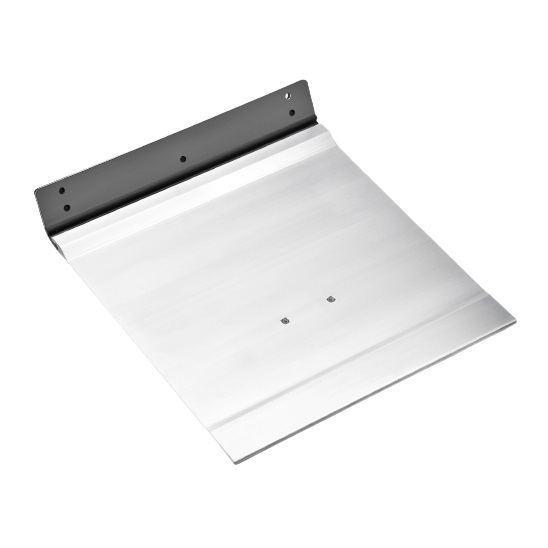

Lectrotab TA12X24 12" x 24" Aluminum Alloy Trim Tab Plate

Features:

• Marine grade 6005-T5 aluminum alloy material
• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure
• Less expensive compared to stainless steel tabs
• Zinc anodes may be installed for additional galvanic corrosion resistance
• Includes carriage bolts and nuts for actuator mounting to tab

The Lectrotab aluminum alloy trim tabs are uniquely designed to meet the needs of aluminum hulled boats and are an economical option for all boats. All aluminum alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. The tabs are made of marine grade 6005-T5 aluminum alloy material that is equivalent in strength to 10 gauge stainless steel. All aluminum tabs are sealed with a corrosion resistant epoxy coating.

Dimensions:

• Tab Width "B": 24"/61cm
• Dimension "X": 5.5"/14cm
• Center Hole Pattern Repeated: 3 Time
