Lectrotab T9X24-9008 9" x 24" Heavy Duty Steel Trim Tab Plate

Lectrotab, T9X24-9008, 9" x 24" Heavy Duty Stainless Steel Trim Tab Plate

Features:

• 90° Taper bent edges for additional strength
• Strong, corrosion resistant 12 gauge, 304 stainless steel
• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Zinc anodes may be installed for additional galvanic corrosion resistance
• Bent trailing edge standard for tabs exceeding 24" width
• Includes carriage bolts and nuts for actuator mounting to tab

Lectrotab heavy duty stainless steel trim tabs incorporate a 90° taper bent edge to provide unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding. The tabs are made of corrosion resistant 12 gauge, 304 stainless steel.

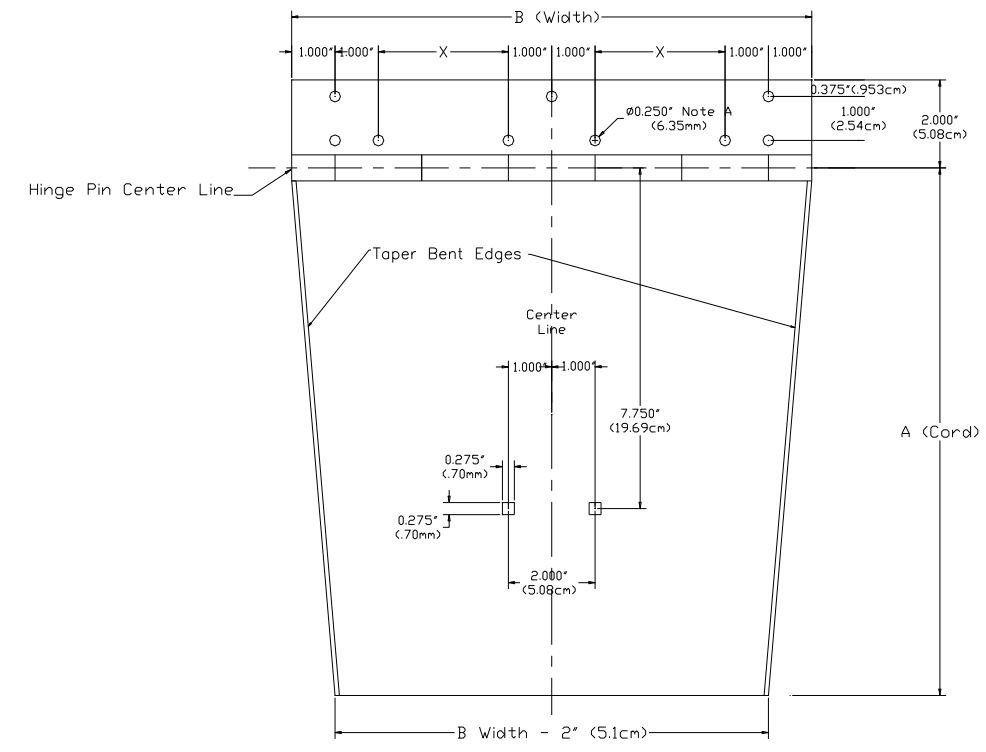

Dimensions:

• Tab Width "B": 24"/61cm
• Dimension "X": 5.33"/135.4mm
• Center Hole Pattern Repeated: 2 Time
