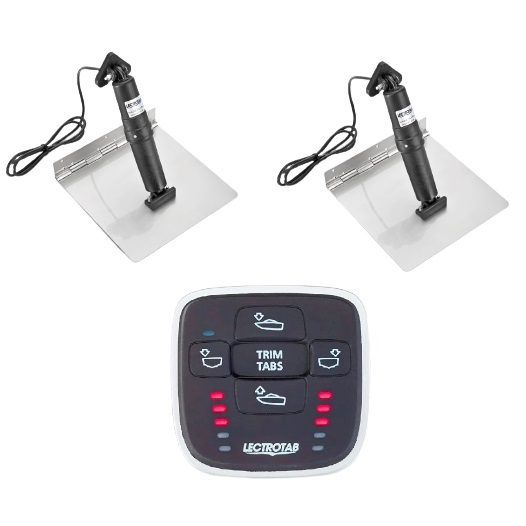

Lectrotab KASML12X42 12" x 42" Trim Tab Kit with 6' Cable Actuators

Lectrotab, KASML12X42, Stainless Steel 12" x 42" Trim Tab Kit with 6' Cable Standard Actuators and Manual Level Switch

KASML12X42 Includes Only:

• Standard Actuator with 23' (7m) cable, 12vdc, 2.25" (57mm) stroke, 8 second stroke time
• 12" x 42" Tab Plate

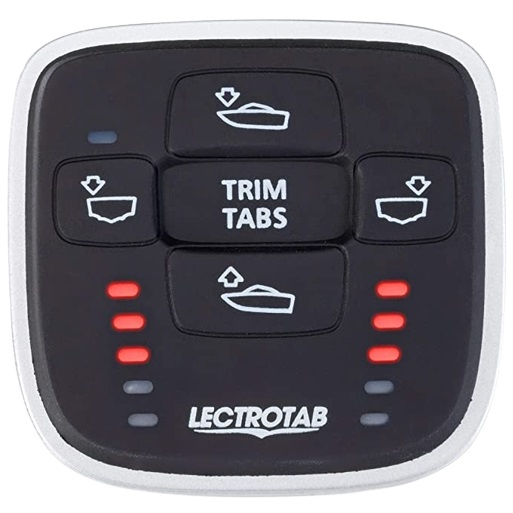

• MLC-1 Manual Level Control

Features:

• A non-hydraulic, electromechanical design that is maintenance-free and requires no hydraulic oil.
• 12 gauge stainless steel with an integrally formed 12 gauge rolled and pinned hinge to strengthen the tab and eliminate spot welds.
• An internal actuator braking design that maintains tab position in rough conditions and when backing down.
• Choice of convenient helm-mounted control switches which provide instant actuator start and stop for very accurate tab positioning.
• A full pivoting upper bracket for maximum installation flexibility.
• A patented ram seal that cannot be fouled by barnacle growth and a patented internal pressurization system for added watertight integrity.
• A complete non-metallic, double-insulated, actuator which cannot corrode and will not deteriorate in the sun or underwater.
• Microprocessor-based trim tab control with LED tab position indicators
• Single button press to move both tabs up or down simultaneously
• Rubber overlay with a sleek bezel design
• Automatic return to last tab position if the ignition key is turned off and back on again
• Completely sealed, completely waterproof, and will not deteriorate in sunlight
• Automatic tab retraction and calibration with key or accessory switch off
• Easy upgrade from rocker switch style control or Oval control
• No external power module is required for one actuator per tab system
• LED tab position indicators dim automatically in darkness and brighten in the sunlight
• Adjustable programming features are located on the back of the specification sheet
• Operates on 12 or 24-volt dc systems

Lectrotab designs and manufactures premium quality electromechanical trim tab systems for the leisure and commercial marine markets. The Lectrotab system is easy to install on boats or to replace existing trim tabs.
