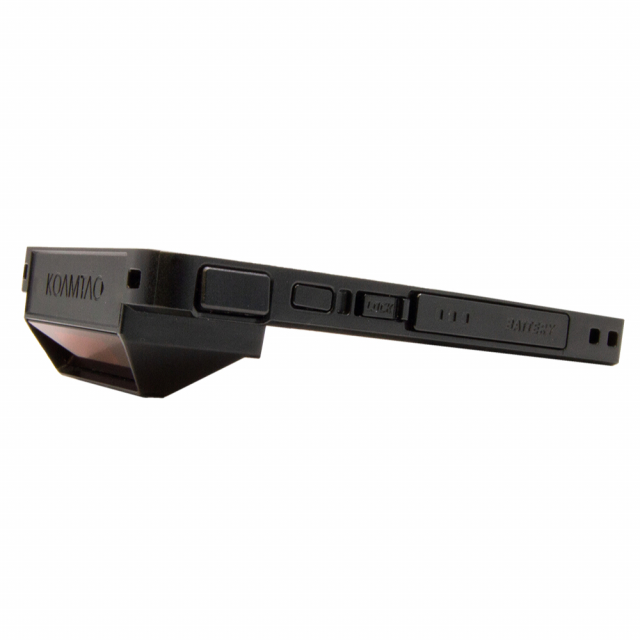

Buy Koamtac 344840, KDC485ER Extended Range Angled 2D Barcode SmartSled

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Scan Range:: Scan Range: 3.4" to 112.1"

Features:

SmartSled Case Sold Separately
Supports all Major 1D and 2D Barcodes
8MB Internal Flash Memory for storing data
Bluetooth® Low Energy 5.0: HID (Android/iOS/Windows),
SPP (Optional Secure Mode)
Scan Range: 3.4" to 104.1" (88 mm to 2848 mm)

The KD485ER Extended Range 2D Imager Bluetooth Low Energy Barcode Sled Scanner which enables diverse mobile Auto-Identification applications to collect barcode data with various smartphones and tablets.

The KDC485 is IP65-rated and has a 5' drop spec, making it ideal for any tough environment. In addition, the angled scanner improves the ergonomics of the overall design.

KOAMTAC's innovative Bluetooth technology and user friendly design allows users to upgrade the smartphone periodically while keeping the KDC480 main system. Integrated charging cases allow the battery and phone to charge simultaneously utilizing a USB Type-C cable or charging cradle.

KDC485 comes with FREE KTSync keyboard wedging software and FREE SDK for Android, Blackberry, iOS (iPhone, iPod touch, iPad) and Windows.

For more information, please see Product Manual

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Regulatory Conformance

R&TTE, RED, FCC, KC, J-MIC, VCCI, SRRC, RoHS Compliant
Laser Safety: IEC60825/CDRH Class II
LED Safety: IEC62471:2006

Scan Range (20mil Code39)

Imager

3.4" to 112.1" (88 mm to 2848 mm)

KDC480L/D/C Symbologies

Laser/CCD (1D)

EAN-13, EAN-8, UPC-A, UPC-E, Code 39, ITF14, Code 128, Interleaved 2 of 5, Codabar, GS1-128, Code 93, Code 35, Bookland EAN-13, EAN-13/8 incl. add on, UPC-A/E incl. add on, GS1 Omni, GS1 Limited, GS1 Expanded

Imager (1D)

Codabar, Code 11, Code 39, Code 93, Code 128, EAN-8, EAN-13, GS1 Composite, Interleaved 2 of 5, Matrix 2 of 5, MSI, Plessey, GS1 Omni, GS1 Limited, GS1 Expanded, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, Telepen, Tri-Optic,UPC-A, UPC-E0, UPC-E1

Imager (2D)

Aztec Code, Aztec Runes, Codablock F, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code

Postal Codes

POSTNET, Planet Code, British Post, Canadian Post, Netherlands (KIX) Post, Australian Post, Japanese Post, Chinese Post, Korean Post

MRZ

Supported

KDC485S/H Symbologies

Laser (1D)

Imager (1D)

Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, EAN-8, EAN-13, GS1 Composite, Interleaved 2of 5, Matrix 2 of 5, MSI, Plessey, PosiCode, GS1 Omni, GS1 Limited, GS1 Expanded, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, TCL39, Telepen, Tri-Optic, UPC-A, UPC-E0, UPC-E1

Imager (2D)

Aztec Code, Aztec Runes, Codablock F, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, Han Xin Code

Postal Codes

POSTNET, Planet Code, British Post, Canadian Post, Netherlands (KIX) Post, Australian Post, Japanese Post, Chinese Post, Korean Post

Physical Characteristics

Size (w/o Case)

2.56" x 4.13" x 0.94" (65 mm x 105 mm x 24 mm)

Weight

3.1 oz (88 g)

Electrical Characteristics

Battery

Lithium-ion (3.7V DC, 1100 mAh)

Charging

USB, Charging Cradle

Interfaces

Bluetooth® Low Energy 5.0

HID (Android/iOS/Windows), SPP (Optional Secure Mode)

USB

USB HID, USB Serial (Android with an integrated case)

Lightning

Serial (iOS with an integrated case)

User Environment

Ingress Protection Rating

IP65

Drop Spec

5′ (1.5 m)

Operating

-4°F to 122°F (-20°C to 50°C)

Storage

-4°F to 140°F (-20°C to 60°C)

Humidity

5% to 95% (non-condensing)

Functionality

Memory Flash

8MB User Data
Can store more than 400,000 barcodes (EAN-13)

Wedging and Synchronization

Keyboard wedge function
Add-on prefixes and suffixes
Barcode option selection

Application Generation

SDK for PC and smartphone application

OS Support

Android, iOS, Mac OS X, Windows

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Regulatory Conformance

R&TTE, RED, FCC, KC, J-MIC, VCCI, SRRC, RoHS Compliant
Laser Safety: IEC60825/CDRH Class II
LED Safety: IEC62471:2006

Scan Range (20mil Code39)

Imager

3.4" to 112.1" (88 mm to 2848 mm)

KDC480L/D/C Symbologies

Laser/CCD (1D)

Imager (1D)

Imager (2D)

Aztec Code, Aztec Runes, Codablock F, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code

Postal Codes

POSTNET, Planet Code, British Post, Canadian Post, Netherlands (KIX) Post, Australian Post, Japanese Post, Chinese Post, Korean Post

MRZ

Supported

KDC485S/H Symbologies

Laser (1D)

Imager (1D)

Imager (2D)

Aztec Code, Aztec Runes, Codablock F, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, Han Xin Code

Postal Codes

POSTNET, Planet Code, British Post, Canadian Post, Netherlands (KIX) Post, Australian Post, Japanese Post, Chinese Post, Korean Post

Physical Characteristics

Size (w/o Case)

2.56" x 4.13" x 0.94" (65 mm x 105 mm x 24 mm)

Weight

3.1 oz (88 g)

Electrical Characteristics

Battery

Lithium-ion (3.7V DC, 1100 mAh)

Charging

USB, Charging Cradle

Interfaces

Bluetooth® Low Energy 5.0

HID (Android/iOS/Windows), SPP (Optional Secure Mode)

USB

USB HID, USB Serial (Android with an integrated case)

Lightning

Serial (iOS with an integrated case)

User Environment

Ingress Protection Rating

IP65

Drop Spec

5′ (1.5 m)

Operating

-4°F to 122°F (-20°C to 50°C)

Storage

-4°F to 140°F (-20°C to 60°C)

Humidity

5% to 95% (non-condensing)

Functionality

Memory Flash

8MB User Data
Can store more than 400,000 barcodes (EAN-13)

Wedging and Synchronization

Keyboard wedge function
Add-on prefixes and suffixes
Barcode option selection

Application Generation

SDK for PC and smartphone application

OS Support

Android, iOS, Mac OS X, Windows

Note

Note: Please read description carefully. Do not base your order on the picture presented.
