Buy Koamtac 344800, KDC485H 2D Imager Angled Barcode SmartSled

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Sensor Type:: Sensor Type: 2D Imager Angled

Wedging & Synchronization

Keyboard wedge function
Add-on prefixes and suffixes
Barcode option selection

Applications:

SDK for PC and smartphone application

Whether you need to read barcodes or RFID tags this is the KDC for you. The devices are rugged devices with an IP65 rating and are built to last. No matter what type of data you need to collect or how you need to collect it, there is a companion module to get the job done quickly and accurately. Charge your device with unique charging cases and never miss a minute of productivity.

Attach to ANY Smartphone or Tablet

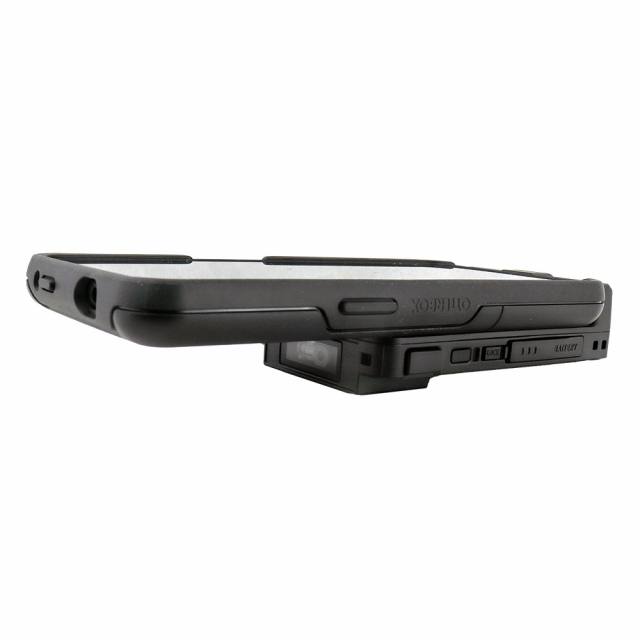

The KDC480 can be attached to any smart device via a custom case to create a sled scanning solution. This unique modular design allows you to upgrade your smart device without worrying about replacing the entire scanning solution. Your investment in a KDC is protected regardless of upgrades in smartphone and tablet technology.

Barcode Reading

The KDC485 offers downward angled scan engines, allowing you to hold your device at level while scanning barcodes at a lower height. The KDC connects via Bluetooth Low Energy (BLE) for easy pairing and reliable data transfers.

For more information, please see Data Sheet

See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Kdc480 Size (W/O Case)	2.56" x 4.13" x 0.62" (65 mm x 105 mm x 15.8 mm)
Kdc480 Weight	3.07 oz (87g)
Kdc485 Size (W/O Case)	2.56" x 4.13" x 0.94" (65 mm x 105 mm x 24 mm)
Kdc485 Weight	3.1 oz (88 g)
Battery	Lithium-ion (3.7V DC, 1100 mAh)
Charging	via USB Type-C connector, Charging Cradle
Bluetooth® Low Energy 5.0	HID (Android/iOS/Windows), SPP (Optional Secure Mode)
Usb Type-C	USB HID, USB Serial (Android with an integrated case)
Lightning	Serial (iOS with an integrated case)
Ingress Protection Rating	IP65
Drop Spec	5' (1.5 m)
Operating	-4°F to 122°F (-20°C to 50°C)
Storage	-4°F to 140°F (-20°C to 60°C)
Humidity	5% to 95% (non-condensing)
Memory Flash Rom	256KB Program, 8MB User Data
Memory Ram	64KB
Laser Safety	IEC60825/CDRH Class II
Led Safety	IEC62471:2006
Scan Range (20Mil Code39) H - Imager	1.73" to 31.5" (44 mm to 800 mm)
Imager (2D)	Aztec Code, Aztec Runes, Codablock F, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Kdc480 Size (W/O Case)	2.56" x 4.13" x 0.62" (65 mm x 105 mm x 15.8 mm)
Kdc480 Weight	3.07 oz (87g)
Kdc485 Size (W/O Case)	2.56" x 4.13" x 0.94" (65 mm x 105 mm x 24 mm)
Kdc485 Weight	3.1 oz (88 g)
Battery	Lithium-ion (3.7V DC, 1100 mAh)
Charging	via USB Type-C connector, Charging Cradle
Bluetooth® Low Energy 5.0	HID (Android/iOS/Windows), SPP (Optional Secure Mode)
Usb Type-C	USB HID, USB Serial (Android with an integrated case)
Lightning	Serial (iOS with an integrated case)
Ingress Protection Rating	IP65
Drop Spec	5' (1.5 m)
Operating	-4°F to 122°F (-20°C to 50°C)
Storage	-4°F to 140°F (-20°C to 60°C)
Humidity	5% to 95% (non-condensing)
Memory Flash Rom	256KB Program, 8MB User Data
Memory Ram	64KB
Laser Safety	IEC60825/CDRH Class II
Led Safety	IEC62471:2006
Scan Range (20Mil Code39) H - Imager	1.73" to 31.5" (44 mm to 800 mm)
Imager (2D)	Aztec Code, Aztec Runes, Codablock F, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code

Note

Note: Please read description carefully. Do not base your order on the picture presented.
