Ken Forging, HR6602, 1/2"-13 x 1-1/16" Safety Swivel Hoist Ring, Alloy Steel Black Oxide

Features:

Material: AISI 4140 Aircraft Quality
Finish: Black Oxide (Except Washer)
Safety Factor: 5:1
100% Magnetic particle inspection performed on all bolts (All other load bearing components are inspected based upon
ASTM E709-08 & MILSTD-105 with zero permissible defects)
Working Action: 360° Swivel
180° Pivot
200% Proof-Load test on all hoist rings

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

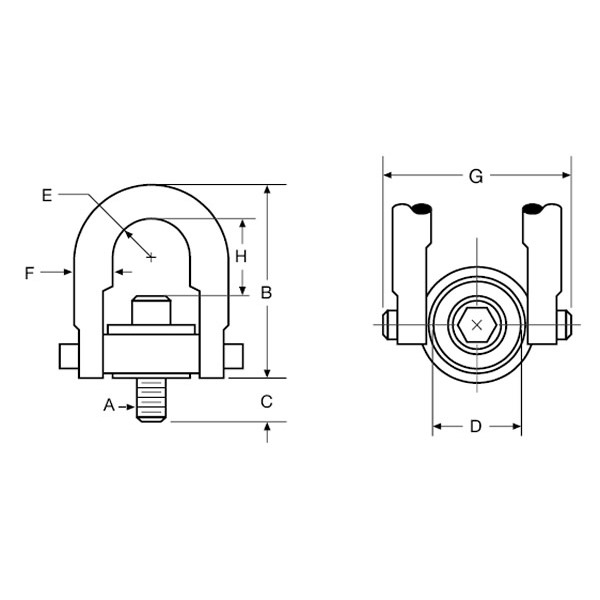

Technical Details

Rated Capacity Lbs.	2,500
(A) Dia. and Thread	1/2"-13
(B) Length	3.75
Dimension C	1-1/16"
Dimension D	1.20
Dimension E	0.69
Dimension G	1.84
Dimension H	1-25/32"
Torque	28
Weight, lbs	1.00
Note	UNC-3A Thread Class for Sizes up to 1 Inch; UNC-2A Thread Class for Sizes over 1 Inch

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Rated Capacity Lbs.	2,500
(A) Dia. and Thread	1/2"-13
(B) Length	3.75
Dimension C	1-1/16"
Dimension D	1.20
Dimension E	0.69
Dimension G	1.84
Dimension H	1-25/32"
Torque	28
Weight, lbs	1.00
Note	UNC-3A Thread Class for Sizes up to 1 Inch; UNC-2A Thread Class for Sizes over 1 Inch
