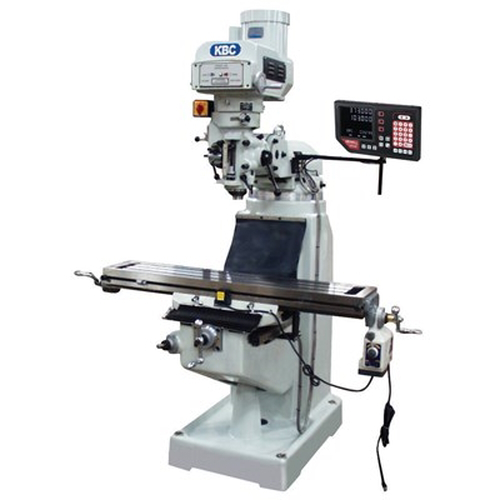

KBC Tools 6-265-007-N3 TUM-1VS Mill PKG with NMS300

With NMS300: Yes
  • Brand KBC Tools
  • Part # 6-265-007-N3
  • Condition
    Brand New
    Availability
    Contact Us
    Quantity
    • Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.
    Share:
    Ask a question

    Options and Related Products

    With NMS300:
    With NMS300: Yes

    Features:

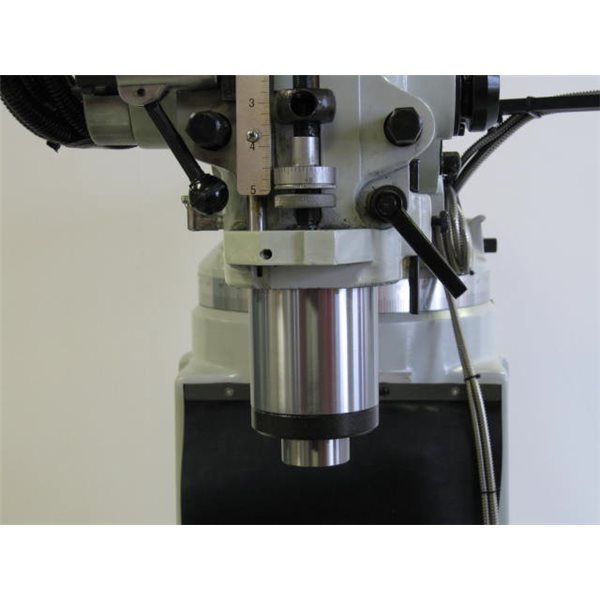

    • Chrome quill with super precision class "7" preloaded bearings.
    • Hardened and ground dovetail way help maintain accuracies over many years.

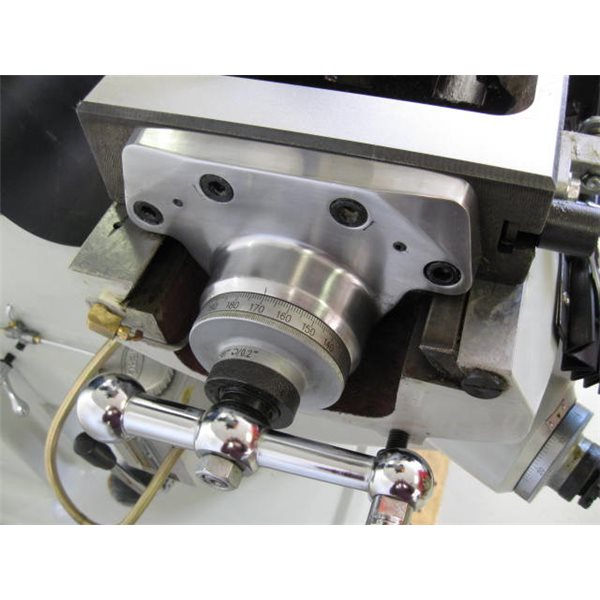

    • Separate manual feed has a lever for rapid quill movement and a handwheel for slow quill movement.
    • Positive two-way power feed tripping mechanism.
    • Micrometer depth stop, graduated in thousandths.

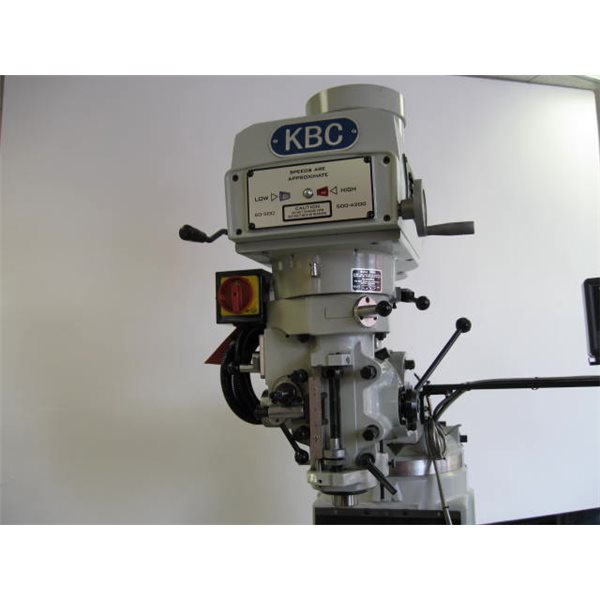

    • Spindle drive is back geared, for maximum use of power.
    • Reversible switch for right or left-hand operation.
    • Counter-balanced quill and spindle for extreme sensitivity.
    • Equipped with power down and up-feed. (Power quill feed)
    • Integral worm and gear for accurate angular positioning.

    KBC Tools, 6-265-007-N3 Includes Only:

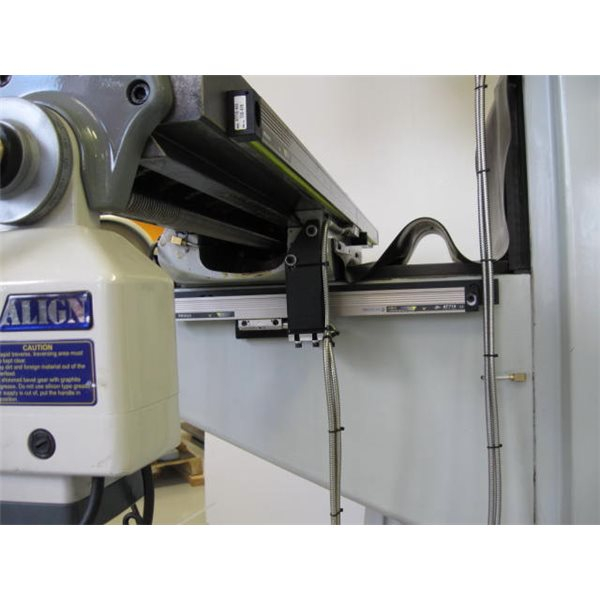

    • Variable Speed R-8 Mill with 9x49 Table Includes NMS300 2-Axis Digital Readout And KBC Table Feed Installed. 3hp Motor Wired 230v 3ph.
    • Drawbar for R8 collets.
    • Front and Rear Way covers.

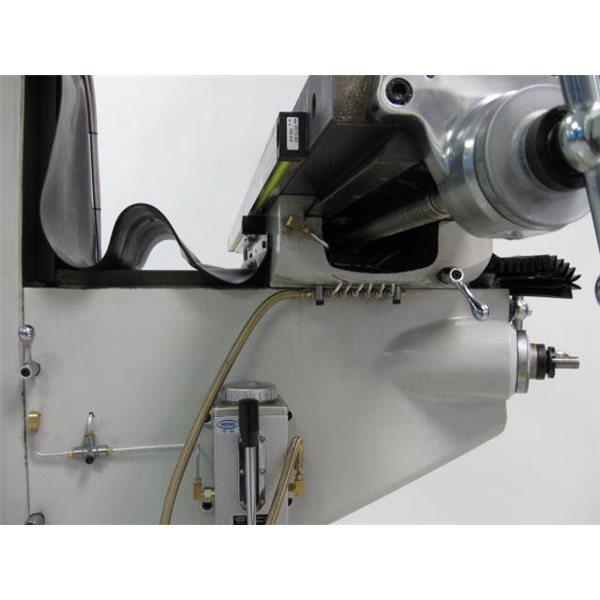

    • One-Shot Lube System.
    • Toolbox with Tools.
    • Manual and Parts List.
    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    Cross Travel12"
    Knee Travel16"
    Longitudinal Travel (Manual)35"
    Longitudinal Travel with Power Feed31"
    Maximum Distance Spindle to Table18-3/4"
    Model NumberTUM-1VS
    Motor3 HP, 230/460V, 3 PH
    Quill Travel5"
    Spindle Speeds70 to 4,200 RPM
    Spindle TaperR8
    Spindle To Column6-3/4 to 18-3/4" at 90°
    Table Size49" x 9"
    Item Weight2,700.00 lbs per EA
    Notes

    ***

    warningWARNING: This product can expose you to chemicals including Di-2(ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

    Product Details
    Cross Travel12"
    Knee Travel16"
    Longitudinal Travel (Manual)35"
    Longitudinal Travel with Power Feed31"
    Maximum Distance Spindle to Table18-3/4"
    Model NumberTUM-1VS
    Motor3 HP, 230/460V, 3 PH
    Quill Travel5"
    Spindle Speeds70 to 4,200 RPM
    Spindle TaperR8
    Spindle To Column6-3/4 to 18-3/4" at 90°
    Table Size49" x 9"
    Item Weight2,700.00 lbs per EA
    Note

    Note: Please read description carefully. Do not base your order on the picture presented.
