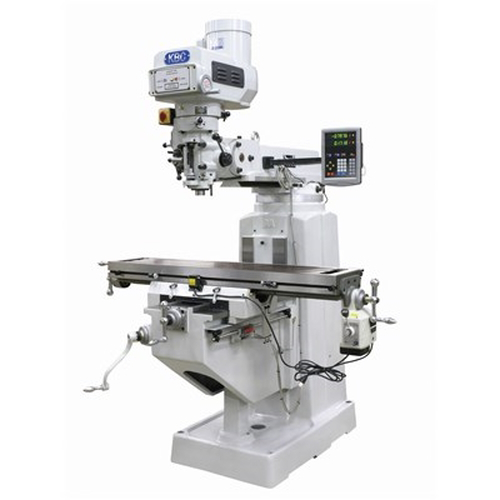

KBC Tools 6-265-006 TUM-3VS Variable Speed Milling Machine

  • Brand KBC Tools
  • Part # 6-265-006
  • Condition
    Brand New
    Availability
    Contact Us
    Quantity
    • Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.
    Share:
    Ask a question

    Features:

    • 3 HP variable speed mill head has compound swivel mount for maximum versatility in your set-ups.
    • Standard R8 spindle taper accepts all common tooling for bridgeport style mills.
    • Hardened and ground square ways on knee and column with wide saddle to support 10" x 50" ground table.
    • Infinitely variable spindle speeds.
    • Satin-chrome dials and chrome ball crank handles for table and cross travels.
    • Chrome lead screws for smooth movements.
    • Precision spindle bearings and chromed quill.
    • Power quill feed with feed trip.

    KBC Tools, 6-265-006 Includes Only:

    • Tum-3vs Variable Speed Milling Machine 3hp Motor Wired 230v 3ph.
    • Drawbar for R8 collets.
    • Front and rear way covers.

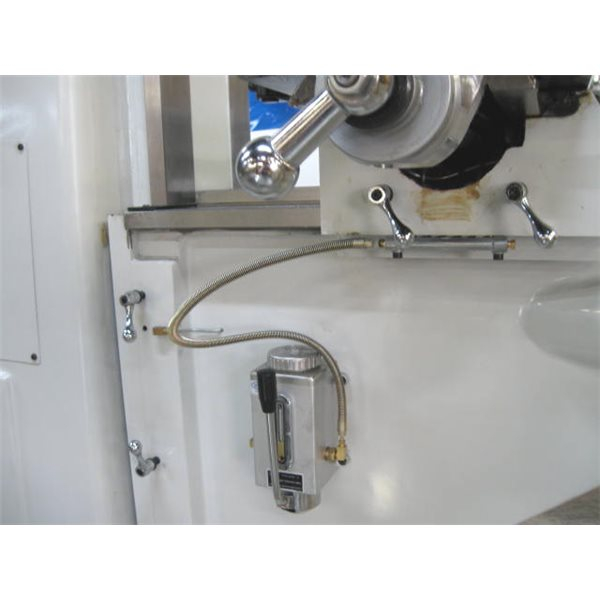

    • One-shot lube system.
    • Toolbox with tools.
    • Manual and parts list.
    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    Cross Travel16"
    Knee Travel16"
    Longitudinal Travel (Manual)32"
    Longitudinal Travel with Power Feed28"
    Maximum Distance Spindle to Table16-5/8"
    Model NumberTUM-3VS
    Motor3 HP, 230/460V, 3 PH
    Quill Travel5"
    Spindle Speeds70 to 4,200 RPM
    Spindle TaperR8
    Spindle To Column5 to 22" at 90°
    Table Size50" x 10"
    Item Weight3,500.00 lbs per EA
    Notes

    ***

    warningWARNING: This product can expose you to chemicals including Di-2(ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

    Product Details
    Cross Travel16"
    Knee Travel16"
    Longitudinal Travel (Manual)32"
    Longitudinal Travel with Power Feed28"
    Maximum Distance Spindle to Table16-5/8"
    Model NumberTUM-3VS
    Motor3 HP, 230/460V, 3 PH
    Quill Travel5"
    Spindle Speeds70 to 4,200 RPM
    Spindle TaperR8
    Spindle To Column5 to 22" at 90°
    Table Size50" x 10"
    Item Weight3,500.00 lbs per EA
    Note

    Note: Please read description carefully. Do not base your order on the picture presented.
