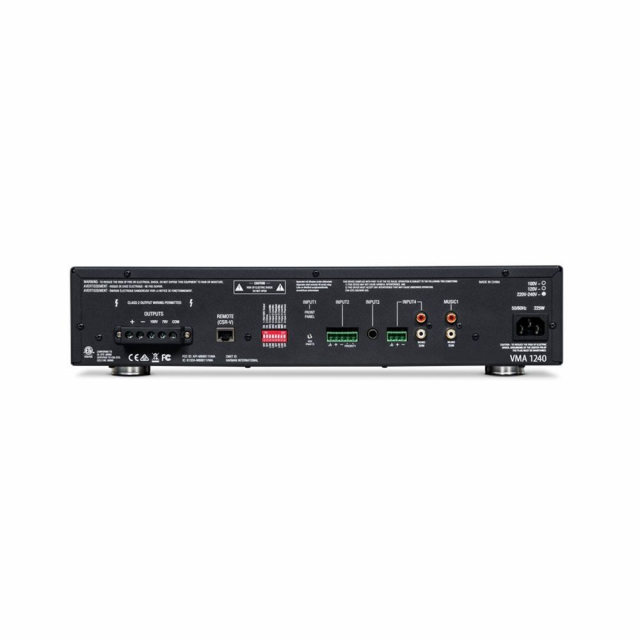

JBL NVMA1240-0-US VMA Series 1 Input Mixer/Amplifier, 240W

Power Output: 240W
  • Brand JBL
  • Part # NVMA1240-0-US
  • Model # VMA Series
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

    Options and Related Products

    Power Output:
    Power Output: 240W

    NVMA1240-0-US Includes Only:

    • Mixer/Amplifier
    • Rack mounting hardware included

    Features:

    • 5 inputs with 1 output of 240-watts of power
    • Independent bass and treble controls for each output channel
    • 100V and 70V output, or 4Ω/8Ω
    • Paging Chime, and Priority muting
    • Works with JBL CSR-V wall controllers
    • Balanced mic/line inputs; RCA (.775V) inputs
    • Rack mounting hardware included

    The JBL VMA Series is a cost-effective line of Mixer/Amplifiers with low impedance functionality (4Ω, 8Ω) and high impedance 70V and 100V output. They are designed with convenient and flexible features to be used by commercial integrators worldwide, ideal for emerging markets.

    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    Max Output Power per Channelinto 4 Ω or 8 Ω; 1kHz, ≤ 0.5% THD - 240W
    Insertion Loss (70V & 100V outputs)1dB maximum
    Number of Inputs5
    Number of Outputs1
    Tone Controls (Bass and Treble non-detented potentiometers on each channel)Bass +/-14dB at 50Hz; Treble +/-14dB at10kHz
    Input Sensitivity (to obtain full rated power into 8 Ω load)Mic Input: 5.5mVRMS Line Input: 1.3VRMS RCA Input (stereo in): 130mVRMS
    Frequency Response (measured at 2.83VRMS into rated load impedance at any output)4/8 Ω Output: 20Hz - 20kHz, +/-2dB; 70V/100V Outputs: 80Hz - 15kHz +/-3dB
    Total Harmonic Distortion (THD) (measured at 2.83VRMS into rated load impedance at any output)Power Amp Output: <0.5%, 20Hz - 20kHz
    Signal to Noise Ratio (Ref. Rated Power, mixer levels at min., master volume at max. A-weighted)>76dB
    Input ImpedanceMic: 400 Ω Line: 20 kΩ RCA: 50 kΩ
    Phantom Power27VDC
    Crosstalk (reference rated power, volume at mid position, 1kHz)-70 dB
    Nominal AC Line Voltages100V, 120V, 220V, 220-240V, 50/60 Hz
    Minimum Load Impedance (Low Impedance Output, 70V Output, 100V Output)4 Ω, 20 Ω, 40 Ω
    Operating Temperature/Humidity0°C to 35°C at 95% R.H. (non-condensing)
    Storage Temperature-20°C to 85°C
    Net Weight25.5 lb (11.6 kg)
    DimensionsWidth: 17.0 in. (432 mm) Depth: 16.3 in. (415 mm) Height: 3.5 in. (88 mm)
    Shipping Weight30.8 lb (14 kg)
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    Max Output Power per Channelinto 4 Ω or 8 Ω; 1kHz, ≤ 0.5% THD - 240W
    Insertion Loss (70V & 100V outputs)1dB maximum
    Number of Inputs5
    Number of Outputs1
    Tone Controls (Bass and Treble non-detented potentiometers on each channel)Bass +/-14dB at 50Hz; Treble +/-14dB at10kHz
    Input Sensitivity (to obtain full rated power into 8 Ω load)Mic Input: 5.5mVRMS Line Input: 1.3VRMS RCA Input (stereo in): 130mVRMS
    Frequency Response (measured at 2.83VRMS into rated load impedance at any output)4/8 Ω Output: 20Hz - 20kHz, +/-2dB; 70V/100V Outputs: 80Hz - 15kHz +/-3dB
    Total Harmonic Distortion (THD) (measured at 2.83VRMS into rated load impedance at any output)Power Amp Output: <0.5%, 20Hz - 20kHz
    Signal to Noise Ratio (Ref. Rated Power, mixer levels at min., master volume at max. A-weighted)>76dB
    Input ImpedanceMic: 400 Ω Line: 20 kΩ RCA: 50 kΩ
    Phantom Power27VDC
    Crosstalk (reference rated power, volume at mid position, 1kHz)-70 dB
    Nominal AC Line Voltages100V, 120V, 220V, 220-240V, 50/60 Hz
    Minimum Load Impedance (Low Impedance Output, 70V Output, 100V Output)4 Ω, 20 Ω, 40 Ω
    Operating Temperature/Humidity0°C to 35°C at 95% R.H. (non-condensing)
    Storage Temperature-20°C to 85°C
    Net Weight25.5 lb (11.6 kg)
    DimensionsWidth: 17.0 in. (432 mm) Depth: 16.3 in. (415 mm) Height: 3.5 in. (88 mm)
    Shipping Weight30.8 lb (14 kg)
    Note

    Note: Please read description carefully. Do not base your order on the picture presented.
