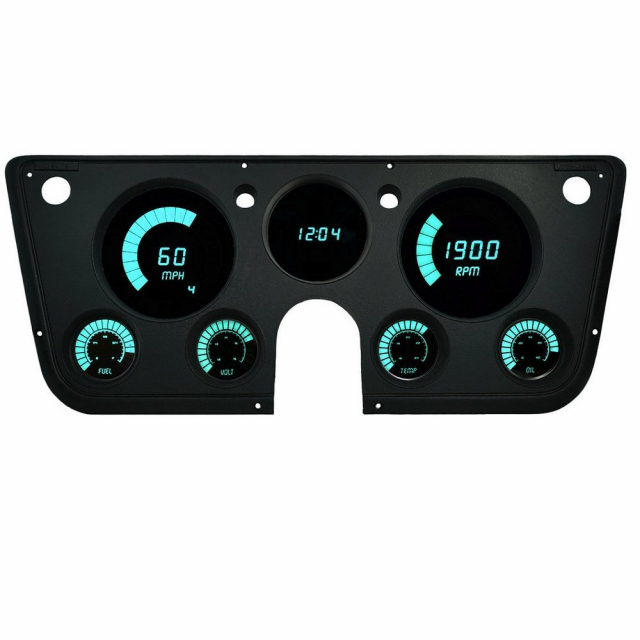

Intellitronix, BG6003T, 1967-1972 Chevy Truck Digital Bargraph Gauge Panel with Teal LED Color
BG6003T Includes Only:
- One (1) Circuit Board (with Speedometer, Tachometer, Voltmeter, Water Temp., Fuel Level, Oil Pressure Gauge, and Clock
- One (1) Smoked Acrylic Lens & Overlay

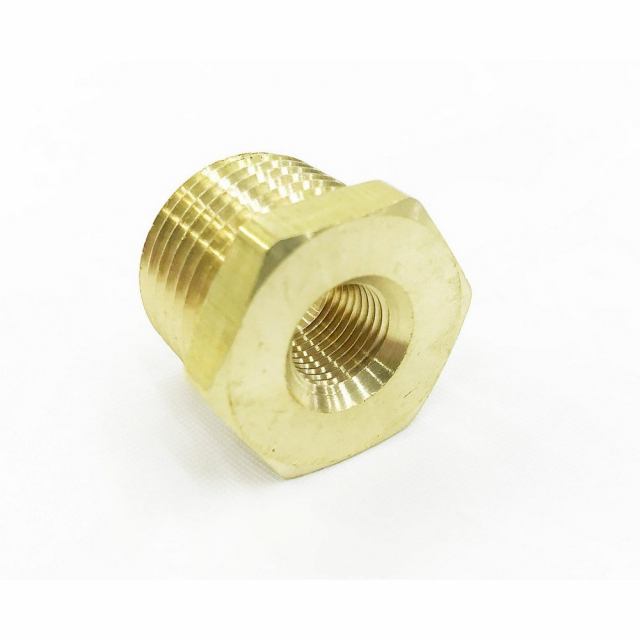

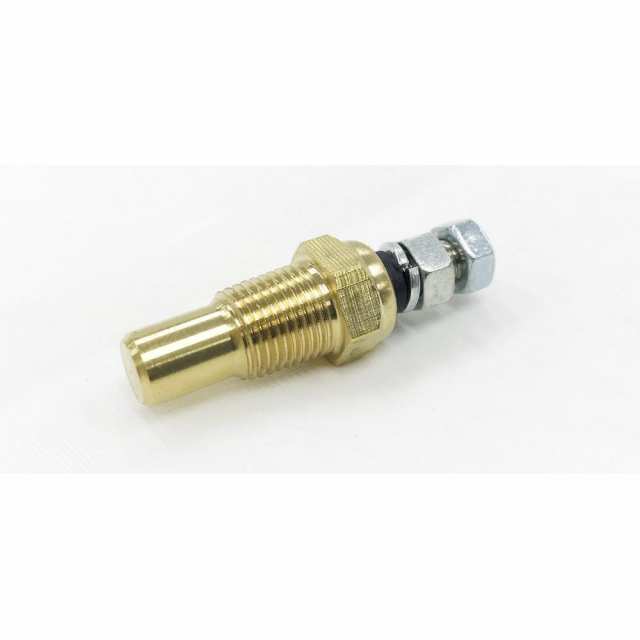

- One (1) Temperature Sending Unit (S8013) - 1/8" NPT, 1/2" NPT Bushing
- One (1) Pressure Sending Unit (S8868) - 1/8" NPT, 0-100 PSI Oil Pressure
- One (1) Universal Speedometer Sensor (S9013) - 7/8" NPT Industry Standard threads

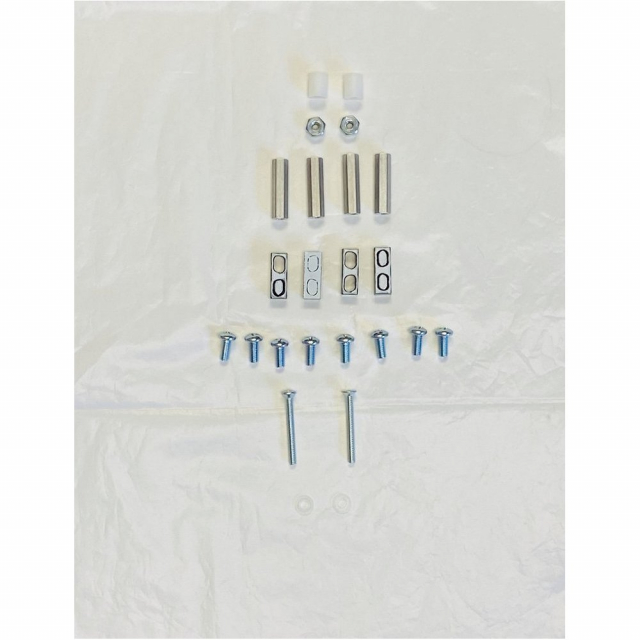

- One (1) Mounting Kit:
- Two (2) - 10/32 x 1" screws Eight(8) #8-32 x 3/8in Pan Head Machine screws
- Two (2) #10 x 3/8" -Nylon spacers Four (4) #8 x 1" Threaded Standoffs/separators
- Two (2) #10- Nylon washers
- Four (4) AttachmentBrackets
- Two (2) -10/32 Nylock nut
Your vintage 1967-72 Chevy Truck will be the talk of the town with a new 67-72 Chevy Truck LED Digital Bargraph Direct Fit Dash Panel Replacement by Intellitronix. Fully loaded with direct fit printed circuit boards, custom fit "smoked" Plexiglas faceplate, universal temperature, oil pressure, and speedometer sending units for vehicles without electronic transmission or cruise control, and instructions for installation.
Upgrade your dashboard effortlessly with Digital Gauge Replacement Panel bundled with a GPS Speedometer Sending Unit. Say goodbye to outdated gauges and hello to modern technology without the hassle. Enjoy the simplicity, ease, and affordability of bundled offer, ensuring a seamless installation process and accurate speed readings powered by GPS. Transform your driving experience today with convenient and cost-effective solution.
A custom-designed LED bargraph is microprocessor controlled with peak rpm memory recall, and automatic night dimming, shift light, and RPM activated switch that can handle 3 amps. It also includes in-dash mounting hardware and installation instructions. It has a 0-9999 readout in 100, 10, or 1 RPM increments (ex. 9900, 9990, 9999). It works on 1-2-4-6-8-10-12-cylinder engines. Red is best for night driving. Size dimensions are 3-3/8 inches in diameter and 1 ½ inches deep.
Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1⁄4 mile elapsed time, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use included S9013 with universal speedometer sending unit, if your vehicle is not equipped with a functional cruise control.
- Temperature display reads 160° to 240°F range. Sender S8013 is included.
- The Oil Pressure display reads 0-80 PSI range plus Oil Pressure sender is included.
- Voltmeter display with 12-16 volt range and no sending unit is required.
- Fuel Level display with Empty to Full in 1/4 increments works with most existing fuel level sending unit.
- The gauge is set at industry standard 0-90.
- The panels also feature turn signals and high beam indicator making it the ultimate way to keep the ride you love cruising through the times.
Note: Bezel not included
