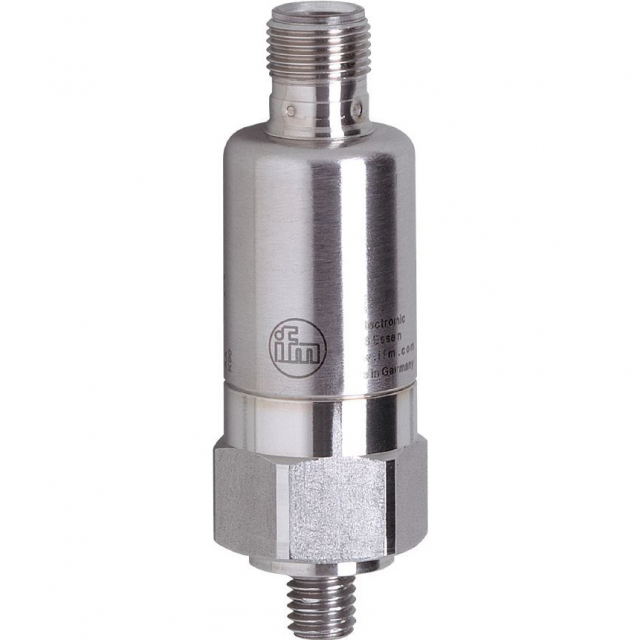

Buy IFM VTV121, 0 - 50 mm/s Vibration Transmitter

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Measuring Range (mm/s):: Measuring Range (mm/s): 0 - 50

Features:

Reliable permanent monitoring of the overall vibration to DIN ISO 10816
Two-wire technology
Precise linearized analog output
Wide operating temperature range and high protection rating
Compact and robust housing for the requirements of harsh industrial environments

Applications

Vibration transmitter to ISO 10816

For more information, please see pdf file Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Product Characteristics

Measuring range of vibration [mm/s]

0 - 50; (RMS)

Frequency Range [Hz]

10 - 1000

Application

Vibration transmitter to ISO 10816

Electrical Data

Operating Voltage [V]

9.6 - 32 DC

Protection Class

III

Type of sensor

Microelectromechanical system (MEMS)

Inputs / Outputs

Total Number of Inputs and Outputs

Outputs

Analog Current Output [mA]

4 - 20

Maximum Load [Ω ]

< (Ub - 9,6 V) x 50; Ub = 24 V: 720

Measuring/Setting Range

Measuring range of vibration [mm/s]

0 - 50; (RMS)

Frequency Range [Hz]

10 - 1000

Number of Measurement Axes

Accuracy / Deviations

Measuring error [% of the final value]

< ± 3

Repeatability

< 0,5; (% of the final value)

Linearity Deviation

0,25 %

Operating Conditions

Ambient Temperature [° C]

-30 - 125

Storage Temperature [° C]

-30 - 125

Protection

IP 67
IP 68
IP 69K

MTTF [Years]

868

Mechanical Data

Weight [g]

124

Type of Mounting

Set screw

Material

Stainless steel (1.4404 / 316L)

Tightening Torque [Nm]

Electrical Connection

Connection

Connector: 1 x M12; coding: A

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Product Characteristics

Measuring range of vibration [mm/s]

0 - 50; (RMS)

Frequency Range [Hz]

10 - 1000

Application

Vibration transmitter to ISO 10816

Electrical Data

Operating Voltage [V]

9.6 - 32 DC

Protection Class

III

Type of sensor

Microelectromechanical system (MEMS)

Inputs / Outputs

Total Number of Inputs and Outputs

Outputs

Analog Current Output [mA]

4 - 20

Maximum Load [Ω ]

< (Ub - 9,6 V) x 50; Ub = 24 V: 720

Measuring/Setting Range

Measuring range of vibration [mm/s]

0 - 50; (RMS)

Frequency Range [Hz]

10 - 1000

Number of Measurement Axes

Accuracy / Deviations

Measuring error [% of the final value]

< ± 3

Repeatability

< 0,5; (% of the final value)

Linearity Deviation

0,25 %

Operating Conditions

Ambient Temperature [° C]

-30 - 125

Storage Temperature [° C]

-30 - 125

Protection

IP 67
IP 68
IP 69K

MTTF [Years]

868

Mechanical Data

Weight [g]

124

Type of Mounting

Set screw

Material

Stainless steel (1.4404 / 316L)

Tightening Torque [Nm]

Electrical Connection

Connection

Connector: 1 x M12; coding: A

Note

Note: Please read description carefully. Do not base your order on the picture presented.
