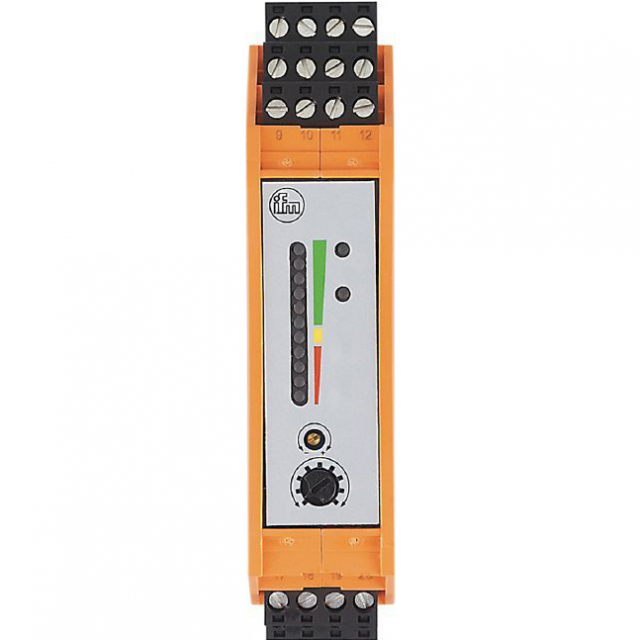

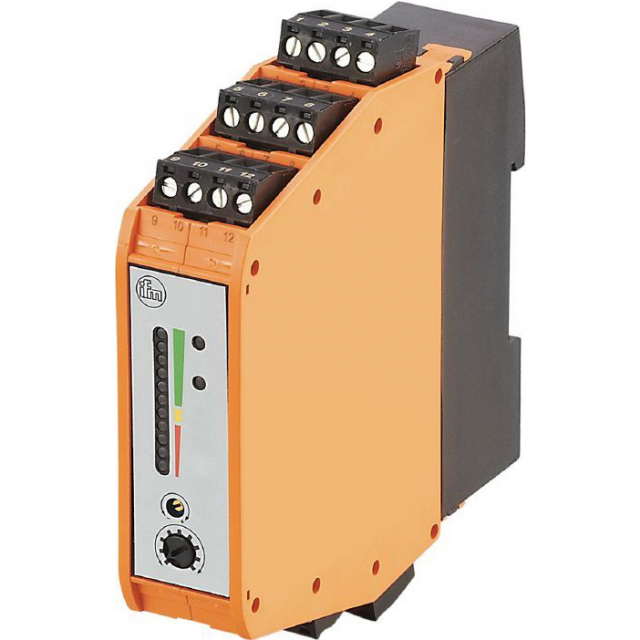

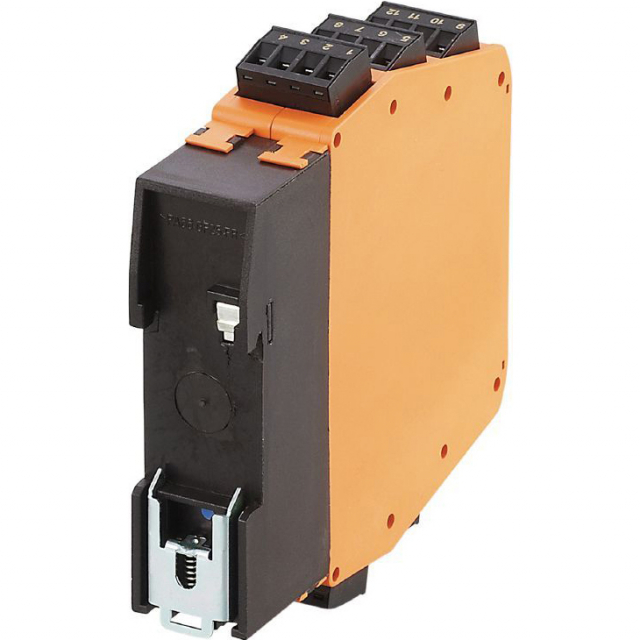

IFM SN0150 0 - 80 Degrees Control Monitor for Flow Sensors

  • Brand IFM
  • Part # SN0150
  • Model # VS3000/85 - 265VAC
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

    Features:

    • For the connection of flow sensors
    • Integrated flow, temperature and wire monitoring
    • Adjustable switching outputs for monitoring flow and temperature
    • Clearly visible multi-color LED bargraph display
    • Signal output via potential-free relay contacts

    Applications

    • Flow monitoring
    • Temperature monitoring
    • Wire break monitoring

    For more information, please see pdf file Data Sheet

    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    Electrical Data
    Frequency AC [Hz]47 - 63
    Operating Voltage Tolerance [%]-5 - 10
    Operating Voltage [V]90 - 240 AC
    Maximum Power Consumption [VA]4
    Protection ClassII
    Reverse Polarity ProtectionNo
    Power-on Delay Time [s]10 - 80; (adjustable (fixed-value resistors terminals 22-23))
    Number of Channels1
    Outputs
    Performance in case of a faultIn case of undervoltage all relays are de-energized, the LED "LOW VOLTAGE/WIRE BREAK-RELAY" lights
    Electrical DesignRelay
    Contact Rating4 A (250 V AC / 30 V DC)
    Switching function flow monitoringRelay energized when flow is present and during the power-on delay time
    Switching function Temperature MonitoringRelay energized when temperature is exceeded
    Switching function wire break monitoringRelay de-energized in case of wire-break or short circuit
    Short-circuit proofNo
    Overload ProtectionNo
    Reaction Times
    Response Time [s]< 3
    Software / Programming
    Adjustment of the switch pointPotentiometer
    Selection liquids / gasesWire bridge; on delivery: monitoring of liquids.; for monitoring of gases: link terminals 23 / 24.
    Switch point settingPotentiometer
    Temperature range [° C]0 - 80
    Repeatability switch point / measured value [K]4
    Operating Conditions
    Ambient Temperature [° C]-20 - 60
    ProtectionIP 20
    Tests / Approvals
    MTTF [Years]168
    Mechanical Data
    Weight [g]252.5
    HousingHousing for DIN rail mounting
    Dimensions [mm]100 x 25 x 103.5
    MaterialPBT
    Electrical Connection
    Required ProtectionMiniature fuse to IEC60127-2 sheet 1; ≤ 5 A; fast acting
    Electrical Connection
    ConnectionCombicon connector
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    Electrical Data
    Frequency AC [Hz]47 - 63
    Operating Voltage Tolerance [%]-5 - 10
    Operating Voltage [V]90 - 240 AC
    Maximum Power Consumption [VA]4
    Protection ClassII
    Reverse Polarity ProtectionNo
    Power-on Delay Time [s]10 - 80; (adjustable (fixed-value resistors terminals 22-23))
    Number of Channels1
    Outputs
    Performance in case of a faultIn case of undervoltage all relays are de-energized, the LED "LOW VOLTAGE/WIRE BREAK-RELAY" lights
    Electrical DesignRelay
    Contact Rating4 A (250 V AC / 30 V DC)
    Switching function flow monitoringRelay energized when flow is present and during the power-on delay time
    Switching function Temperature MonitoringRelay energized when temperature is exceeded
    Switching function wire break monitoringRelay de-energized in case of wire-break or short circuit
    Short-circuit proofNo
    Overload ProtectionNo
    Reaction Times
    Response Time [s]< 3
    Software / Programming
    Adjustment of the switch pointPotentiometer
    Selection liquids / gasesWire bridge; on delivery: monitoring of liquids.; for monitoring of gases: link terminals 23 / 24.
    Switch point settingPotentiometer
    Temperature range [° C]0 - 80
    Repeatability switch point / measured value [K]4
    Operating Conditions
    Ambient Temperature [° C]-20 - 60
    ProtectionIP 20
    Tests / Approvals
    MTTF [Years]168
    Mechanical Data
    Weight [g]252.5
    HousingHousing for DIN rail mounting
    Dimensions [mm]100 x 25 x 103.5
    MaterialPBT
    Electrical Connection
    Required ProtectionMiniature fuse to IEC60127-2 sheet 1; ≤ 5 A; fast acting
    Electrical Connection
    ConnectionCombicon connector
