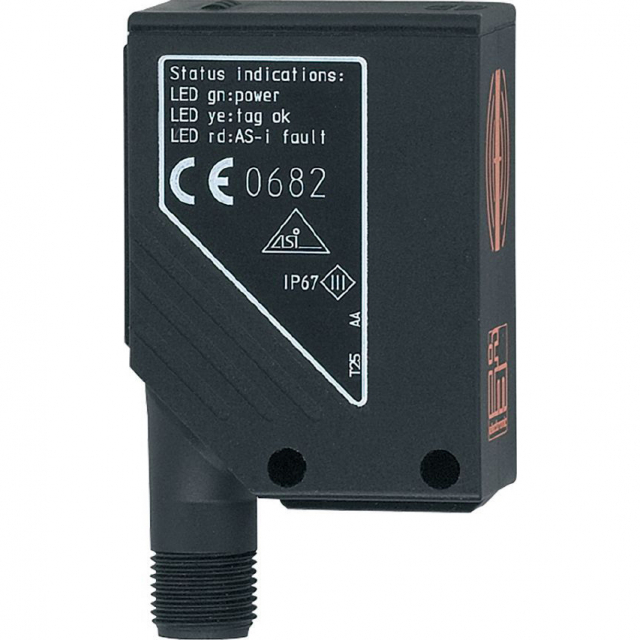

IFM DTA100 RFID Read/Write Antenna with AS-Interface

  • Brand IFM
  • Part # DTA100
  • Model # DTSLF AARWASUS01
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

    Features:

    • Identification of workpiece carriers in routing conveyors
    • Non-contact reading and writing of RFID tags / transponders
    • Compact and at a low cost: Antenna and evaluation in one housing
    • With AS-i interface
    • For use in production lines and in material flow control

    Applications

    • Detection of objects on transport equipment

    For more information, please see pdf file Data Sheet

    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    Radio Approval forUSA; Canada; EU/RED; Australia; China
    Electrical Data
    Operating Voltage [V]26.5 - 31.6 DC; (cULus - Class 2 source required)
    Current Consumption [mA]<50
    Protection ClassIII
    Operating Frequency [MHz]0,125
    Outputs
    Electrical DesignAS-i
    Monitoring Range
    Travel Speed [m/s]<0.5
    Distance read/read head front200
    Distance read/read head side200
    Distance Write/Read Head front [mm]400
    Distance Write/Read Head Side [mm]400
    Interfaces
    Communication InterfaceAS-i
    Operating Conditions
    Ambient Temperature [°C]-20 - 50
    Storage Temperature [°C]-25 - 80
    ProtectionIP 67
    MTTF [years]422
    AS-i Classification
    AS-i I/O Configuration [hex]7
    AS-i ID Code [hex]4
    AS-i Certificate71501
    Mechanical Data
    Weight [g]104.3
    HousingRectangular
    Dimensions [mm]55 x 24 x 41
    MaterialPA
    Electrical Connection
    ConnectionConnector: 1 x M12; coding: A
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    Radio Approval forUSA; Canada; EU/RED; Australia; China
    Electrical Data
    Operating Voltage [V]26.5 - 31.6 DC; (cULus - Class 2 source required)
    Current Consumption [mA]<50
    Protection ClassIII
    Operating Frequency [MHz]0,125
    Outputs
    Electrical DesignAS-i
    Monitoring Range
    Travel Speed [m/s]<0.5
    Distance read/read head front200
    Distance read/read head side200
    Distance Write/Read Head front [mm]400
    Distance Write/Read Head Side [mm]400
    Interfaces
    Communication InterfaceAS-i
    Operating Conditions
    Ambient Temperature [°C]-20 - 50
    Storage Temperature [°C]-25 - 80
    ProtectionIP 67
    MTTF [years]422
    AS-i Classification
    AS-i I/O Configuration [hex]7
    AS-i ID Code [hex]4
    AS-i Certificate71501
    Mechanical Data
    Weight [g]104.3
    HousingRectangular
    Dimensions [mm]55 x 24 x 41
    MaterialPA
    Electrical Connection
    ConnectionConnector: 1 x M12; coding: A
    Note

    Note: Please read description carefully. Do not base your order on the picture presented.
