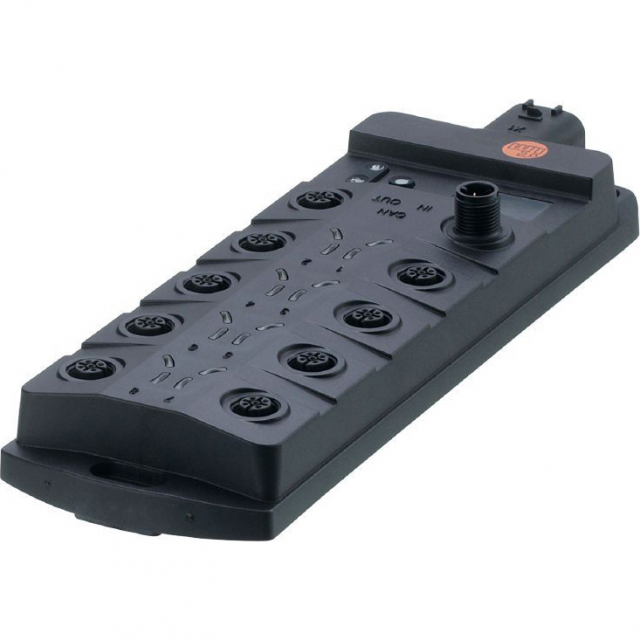

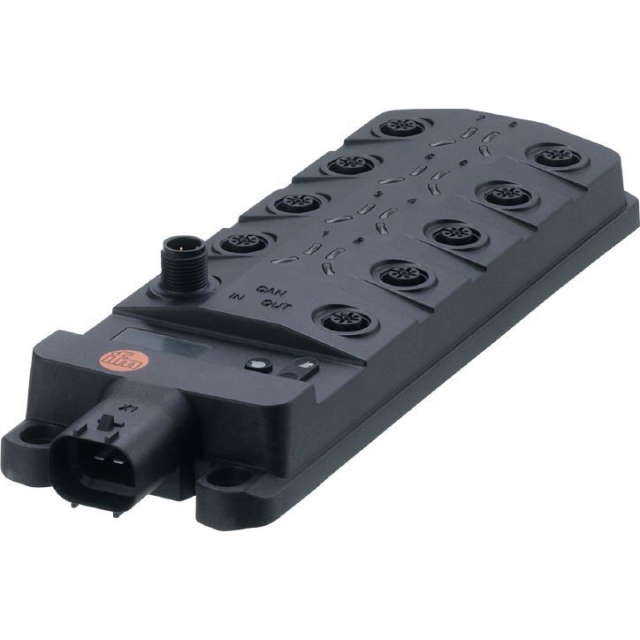

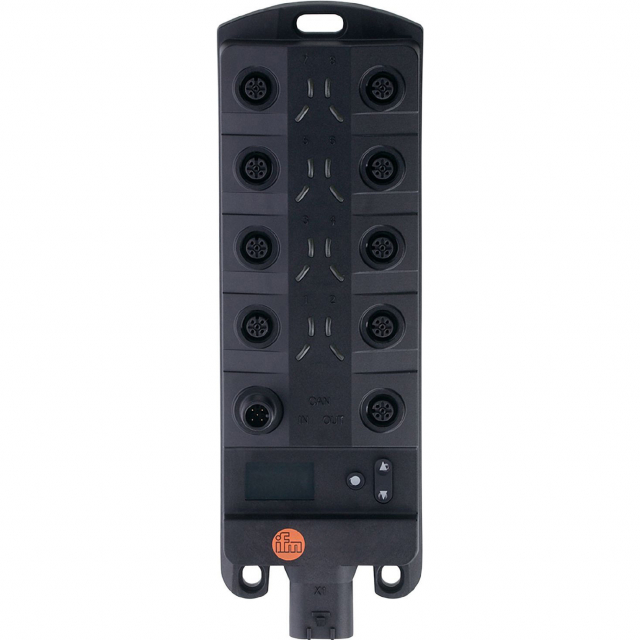

Buy IFM CR2042, I/O Modules with 8 Inputs and 8 Outputs

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Version:: Version: Modules with 8 Inputs and 8 Outputs

Features:

Decentralized connection of sensors and actuators
With many multifunctional configurable input and output channels
High-performance CAN interface for various communication tasks
Programmable to IEC 61131-3 with CODESYS
Protection rating for the requirements of mobile machines

For more information, please see pdf file Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Reviews

System

Gold-plated contacts

Electrical Data

Operating Voltage [V]

8 - 32 DC

Nominal Voltage DC [V]

12 / 24

Current Consumption [mA]

188; (24 V DC: 105 mA; maximum: 300 mA)

Reverse Polarity Protection

Yes

Overvoltage protection

Yes; (36 V: t ≤ 10 s)

Inputs / Outputs

Total Number of Inputs and Outputs

Number of Inputs and Outputs

Number of Digital Inputs: 8
Number of Analog Inputs: 4
Number of Frequency Inputs: 4
Number of Resistor Inputs: 4
Number of Digital Outputs: 8

Inputs

Total number of inputs

Number of Frequency Inputs

Number of Resistor Inputs

Number of Digital Inputs

Number of Analog Inputs

Analog Input (Current) [mA]

0 - 20

Analog Input (Voltage) [V]

0 - 32

Outputs

Total number of outputs

Number of Digital Outputs

Short-Circuit Protection

Yes

Short-Circuit Proof

Yes

Number of PWM Outputs

Number of PWM-I Outputs

Software / Programming

Parameter Setting

CODESYS 2.3

PLC Function to IEC 61131-3

Yes

Interfaces

Communication Interface

CAN

Number of CAN Interfaces

Transmission Rate

20 kBit/s - 1 MBit/s

Protocol

CANopen; SAE J1939; free protocol

Profile

CiA DS 301 Version 4; CiA DS 401 Version 1.4

Interface

CAN Interface 2.0 A/B ISO 11898

Operating Conditions

Ambient Temperature [°C]

-40 - 85

Storage Temperature [°C]

-40 - 85

Maximum Relative Air Humidity [%]

90; (non condensing)

Maximum Height above Sea Level [m]

2000

Protection

IP 65; IP 67

Degree of Soiling

MTTF [years]

Mechanical Data

Weight [g]

648.9

Type of Mounting

Mounting via screws

Dimensions [mm]

234 x 76 x 37

Material

Housing: PA6/6.6
Display: PA
Pushbuttons: silicone

Hardware

Processor

Freescale PowerPC 50 MHz

Working Memory

592 kByte

Mass Storage

1536 kByte Flash / 1 kByte FRAM

CAN IN

Connector: 1 x M12; coding: A; Contacts: gold-plated

CAN OUT

Connector: 1 x M12; coding: A; Contacts: gold-plated

Inputs Con. 1, 3, 5, 7

Connector: 8 x M12; coding: A; Contacts: gold-plated

Connector: 1 x AMP connector (TE-AMP 1745078-1); Contacts: tin-plated

Notes
