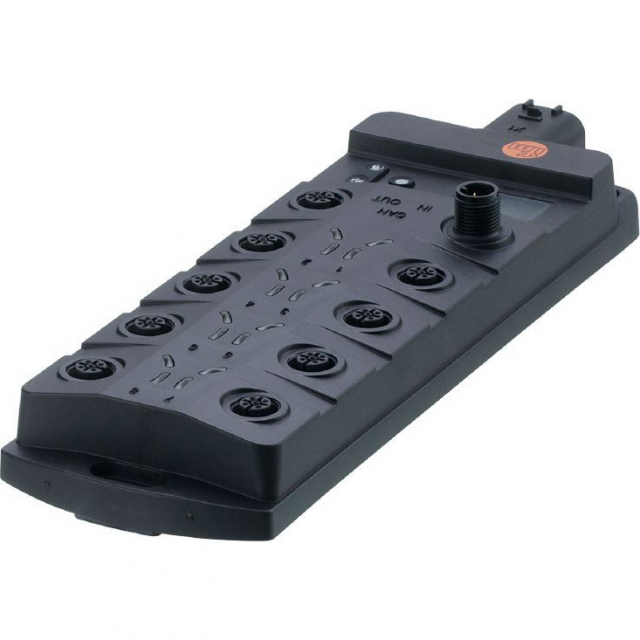

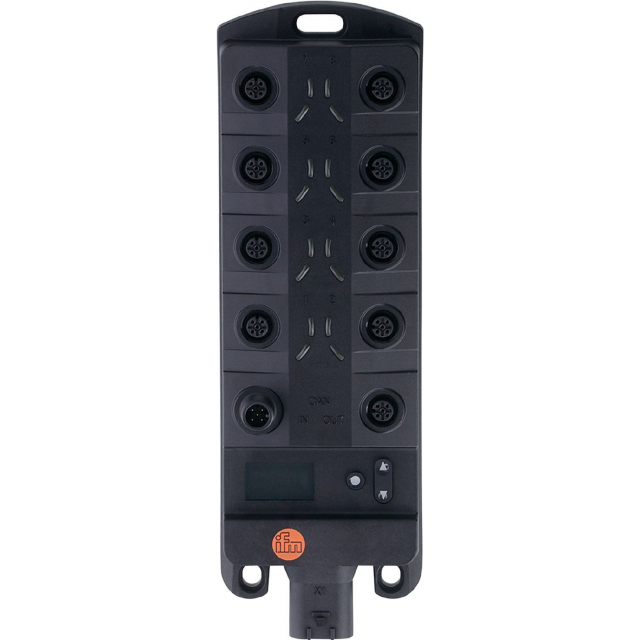

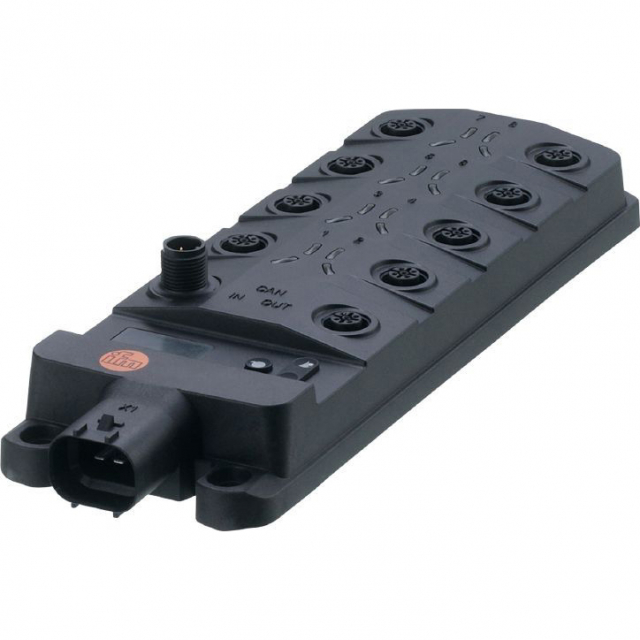

IFM CR2041 Output Module for Mobile Machines

Version: Output Module
  • Brand IFM
  • Part # CR2041
  • Model # IoControl/Out 16/M12
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

    Options and Related Products

    Version:
    Version: Output Module

    Features:

    • Decentralized connection of sensors and actuators
    • With many multifunctional configurable output channels
    • High-performance CAN interface for various communication tasks
    • Programmable to IEC 61131-3 with CODESYS
    • Protection rating for the requirements of mobile machines

    For more information, please see pdf file Data Sheet

    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    Electrical Connection - CAN INElectrical Connection - CAN OUTElectrical Connection - OutputsElectrical Connection - supply / CAN interface
    SystemGold-plated contacts
    Electrical Data
    Operating Voltage [V]8 - 32 DC
    Nominal Voltage DC [V]12 / 24
    Current Consumption [mA]188; (24 V DC: 105 mA; maximum: 300 mA)
    Reverse Polarity ProtectionYes
    Overvoltage protectionYes; (36 V: t ≤ 10 s)
    Inputs / Outputs
    Total Number of Inputs and Outputs16
    Number of Inputs and OutputsNumber of Digital Outputs: 16
    Outputs
    Total number of outputs16
    Number of Digital Outputs16
    Short-Circuit ProtectionYes
    Short-Circuit ProofYes
    Number of PWM Outputs16
    Number of PWM-I Outputs8
    Software / Programming
    Parameter SettingCODESYS 2.3
    PLC Function to IEC 61131-3Yes
    Interfaces
    Communication InterfaceCAN
    Number of CAN Interfaces2
    Transmission Rate20 kBit/s - 1 MBit/s
    ProtocolCANopen; SAE J1939; free protocol
    ProfileCiA DS 301 Version 4; CiA DS 401 Version 1.4
    InterfaceCAN Interface 2.0 A/B ISO 11898
    Operating Conditions
    Ambient Temperature [°C]-40 - 85
    Storage Temperature [°C]-40 - 85
    Maximum Relative Air Humidity [%]90; (non condensing)
    Maximum Height above Sea Level [m]2000
    ProtectionIP 65; IP 67
    Degree of Soiling2
    MTTF [years]95
    Mechanical Data
    Weight [g]655.9
    Type of MountingMounting via screws
    Dimensions [mm]234 x 76 x 37
    MaterialHousing: PA6/6.6; Display: PA; Pushbuttons: silicone
    Hardware
    ProcessorFreescale PowerPC 50 MHz
    Working Memory592 kByte
    Mass storage1536 kByte Flash / 1 kByte FRAM
    CAN INConnector: 1 x M12; coding: A; Contacts: gold-plated
    CAN OUTConnector: 1 x M12; coding: A; Contacts: gold-plated
    Con. 1 - 8Connector: 8 x M12; coding: A; Contacts: gold-plated
    X1Connector: 1 x AMP connector (TE-AMP 1745078-1); Contacts: tin-plated
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    Electrical Connection - CAN INElectrical Connection - CAN OUTElectrical Connection - OutputsElectrical Connection - supply / CAN interface
    SystemGold-plated contacts
    Electrical Data
    Operating Voltage [V]8 - 32 DC
    Nominal Voltage DC [V]12 / 24
    Current Consumption [mA]188; (24 V DC: 105 mA; maximum: 300 mA)
    Reverse Polarity ProtectionYes
    Overvoltage protectionYes; (36 V: t ≤ 10 s)
    Inputs / Outputs
    Total Number of Inputs and Outputs16
    Number of Inputs and OutputsNumber of Digital Outputs: 16
    Outputs
    Total number of outputs16
    Number of Digital Outputs16
    Short-Circuit ProtectionYes
    Short-Circuit ProofYes
    Number of PWM Outputs16
    Number of PWM-I Outputs8
    Software / Programming
    Parameter SettingCODESYS 2.3
    PLC Function to IEC 61131-3Yes
    Interfaces
    Communication InterfaceCAN
    Number of CAN Interfaces2
    Transmission Rate20 kBit/s - 1 MBit/s
    ProtocolCANopen; SAE J1939; free protocol
    ProfileCiA DS 301 Version 4; CiA DS 401 Version 1.4
    InterfaceCAN Interface 2.0 A/B ISO 11898
    Operating Conditions
    Ambient Temperature [°C]-40 - 85
    Storage Temperature [°C]-40 - 85
    Maximum Relative Air Humidity [%]90; (non condensing)
    Maximum Height above Sea Level [m]2000
    ProtectionIP 65; IP 67
    Degree of Soiling2
    MTTF [years]95
    Mechanical Data
    Weight [g]655.9
    Type of MountingMounting via screws
    Dimensions [mm]234 x 76 x 37
    MaterialHousing: PA6/6.6; Display: PA; Pushbuttons: silicone
    Hardware
    ProcessorFreescale PowerPC 50 MHz
    Working Memory592 kByte
    Mass storage1536 kByte Flash / 1 kByte FRAM
    CAN INConnector: 1 x M12; coding: A; Contacts: gold-plated
    CAN OUTConnector: 1 x M12; coding: A; Contacts: gold-plated
    Con. 1 - 8Connector: 8 x M12; coding: A; Contacts: gold-plated
    X1Connector: 1 x AMP connector (TE-AMP 1745078-1); Contacts: tin-plated
